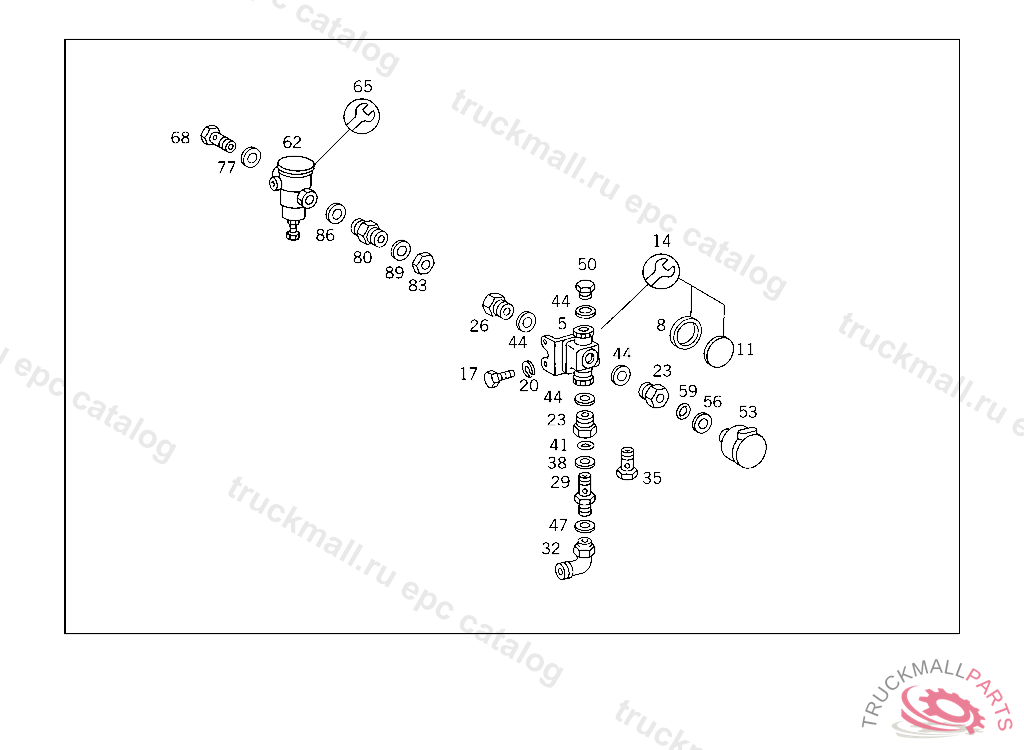

Поз.
Артикул
Описание
5
VALVE (QUICK-RELEASE VALVE)
5
VALVE QUICK-RELEASE
8
SEAL RINGWABCO
11
DIAPHRAGMWABCO
14
REPAIR KIT
17
SCREW , Replaced By: N304017008021
20
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
23
FITTING QUICK-RELEASE VALVE,CONNECTIONS: "20,30"
26
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
29
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
32
ELBOW FITTING DELIVERY LINE TO PUMP
35
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
38
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
41
O-RING CHECK VALVE TO AIR RESERVOIR
44
SEAL RINGTO 006 997 00 72
47
SEAL RING LINE CONNECTION
50
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
53
MUFFLER TRAILER CONTROL VALVE
53
MUFFLER , Replaced By: A0004302370
56
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
59
O-RING CHECK VALVE TO AIR RESERVOIR
62
VALVE PRESSURE LIMIT
65
REPAIR KIT PRESSURE RELIEF VALVE
65
REPAIR KIT , Replaced By: A0004200871
68
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
77
SEAL RINGTO 006 997 00 72
80
FITTING BRAKE LINE COUPLING TO BRACKET
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
VALVE (PRESSURE RELIEF VALVE)
999
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
999
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
