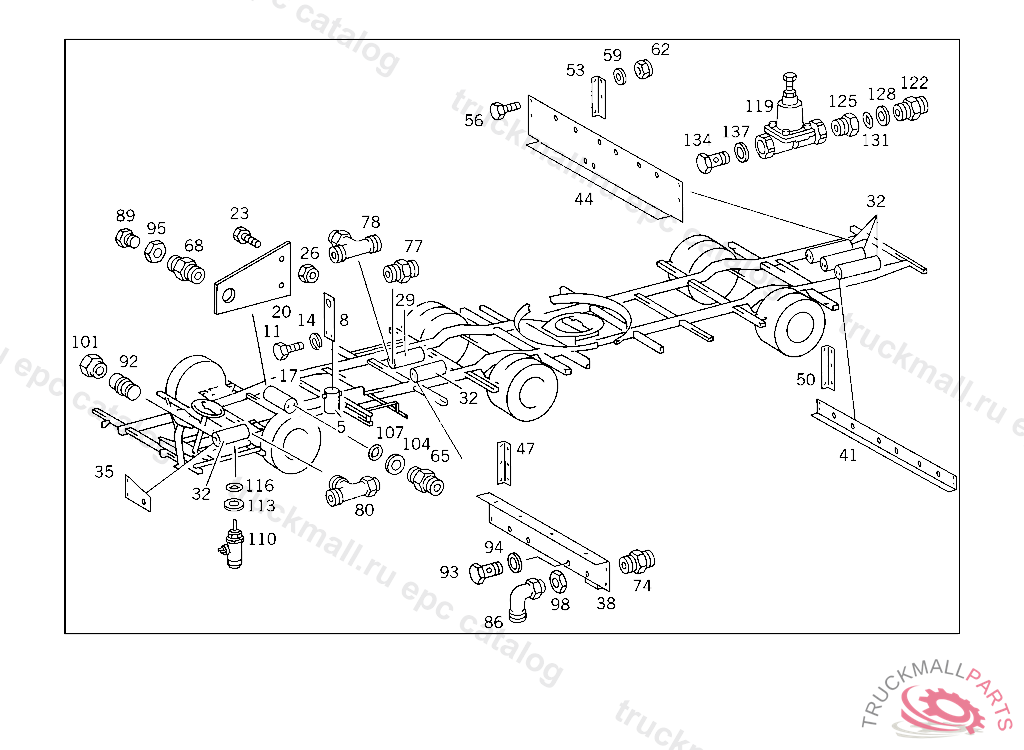

Поз.
Артикул
Описание
5
RESERVOIR , Replaced By: A0034320201
5
RESERVOIR AIR RESERVOIR
8
BRACKET
11
SCREW , Replaced By: N304017008021
14
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
17
RESERVOIR , Replaced By: A0034321201
17
RESERVOIR COMPRESSED AIR,5 295503
17
RESERVOIR STEEL 20L, D246MM
20
SUPPORT
23
SCREW , Replaced By: N304017008021
26
NUT , Replaced By: N913004008001
29
RESERVOIR20/20L
32
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
32
RESERVOIR40L,276 MM,8.5 BAR
32
RESERVOIR , Replaced By: A0034322401
32
RESERVOIR PNEUMATIC SUSPENSION AIR RESERVOIR 40 L
35
SUPPORT FRONT AXLE
38
SUPPORT CENTRAL AXLE
41
SUPPORT REAR CARRIAGE
44
SUPPORT REAR CARRIAGE
47
ANGLE CENTRAL AXLE
50
ANGLE REAR CARRIAGE
53
ANGLE
56
SCREW CLAMP TO BRACKET AND TO PIPE
56
SCREW , Replaced By: N304017008021
56
SCREW , Replaced By: N304017008021
56
SCREW PIPE CLAMP
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
SCREW , Replaced By: N308676012012
59
WASHER , Replaced By: N000125008443
62
NUT , Replaced By: N913004008001
62
NUT , Replaced By: N910113010000
62
NUT , Replaced By: N910113012003
65
FITTING AIR RESERVOIR,CONNECTION: "27"
68
BULKHEAD FITTING AIR RESERVOIR,CONNECTIONS: 1.5 L,20 L
74
FITTING SHUTTLE VALVE
77
FITTING , Replaced By: A0019900970
77
FITTING , Replaced By: A0049977672
78
T-FITTING SUPPLY LINE FOR TRANSMISSION
80
T-FITTING RELAY VALVE,CONNECTION: "20"
86
ELBOW FITTING DELIVERY LINE TO PUMP
89
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
92
PLUG FRONT AIR RESERVOIR,CONNECTION: "16,22,31,32,33,34,44,45,46"
93
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
94
SEAL RINGTO 006 997 00 72
95
NUTTO 376 131 74 01
98
NUT BRACKET TO SIDE MEMBER
101
NUT CHECK VALVE TO AIR RESERVOIR
104
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
107
O-RING CHECK VALVE TO AIR RESERVOIR
110
VALVE DRAIN, Replaced By: A0004322407
110
VALVE DRAIN, Replaced By: A0004322107
113
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
116
O-RING CHECK VALVE TO AIR RESERVOIR
119
VALVE OVERFLOW VALVE WITH RETURN FLOW WESTINGHOUSE
122
FITTING , Replaced By: A6219970872, +001A0009904968
125
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
128
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
131
O-RING CHECK VALVE TO AIR RESERVOIR
134
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
137
SEAL RINGTO 006 997 00 72
999
FITTING OIL LINE CONNECTION
999
FITTING RELAY VALVE,CONNECTION: "10",950459
