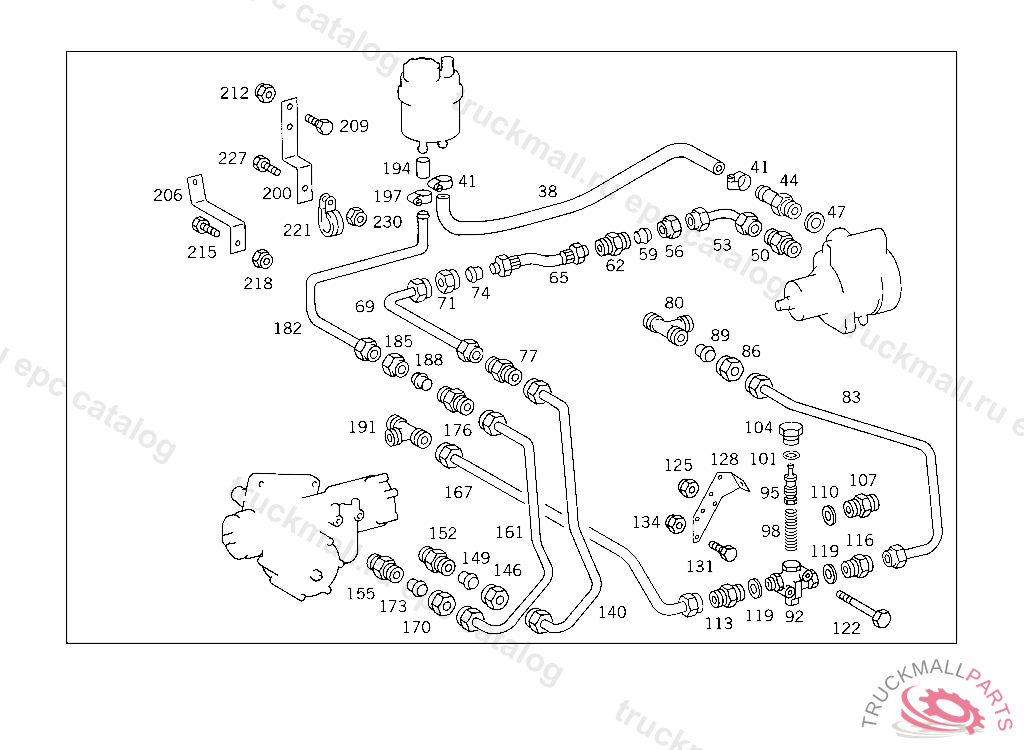

Поз.
Артикул
Описание
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
47
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
50
FITTING DELIVERY LINE TO PUMP
53
TUBE FROM HIGH PRESSURE HOSE TO STEERING
53
LINE , Replaced By: A0005516156
56
UNION NUT LINE CONNECTION, Replaced By: N000000006239
56
UNION NUT LINE CONNECTION
59
SEAL CONE LINE CONNECTION
59
GLAND , Replaced By: A0019901967
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
65
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
69
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
71
UNION NUT LINE CONNECTION
71
UNION NUT LINE CONNECTION, Replaced By: N000000006239
74
GLAND , Replaced By: A0019901967
74
SEAL CONE LINE CONNECTION
80
T-FITTING
83
LINE , Replaced By: A0005516156
83
TUBE FROM HIGH PRESSURE HOSE TO STEERING
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
UNION NUT LINE CONNECTION
89
SEAL CONE LINE CONNECTION
89
GLAND , Replaced By: A0019901967
92
VALVE PRESSURE LIMIT,CIRCUIT I 120 BAR
95
PISTON
98
SPRING
101
SEAL RING
104
SCREW PLUG
107
FITTING
110
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
113
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
113
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
113
FITTING , Replaced By: A0039971672
116
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
119
SEAL RING VALVE TO VALVE,K 025179
122
SCREW BRACKET TO BELL HOUSING
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
128
BRACKET PRESSURE LIMIT VALVE
131
SCREW , Replaced By: N304017008034
131
SCREW BRACKET TO CROSS CONNECTION STRUT
134
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
NUT , Replaced By: N913004008001
140
LINE , Replaced By: A0005516156
140
TUBE FROM HIGH PRESSURE HOSE TO STEERING
146
UNION NUT LINE CONNECTION, Replaced By: N000000006239
146
UNION NUT LINE CONNECTION
149
SEAL CONE LINE CONNECTION
149
GLAND , Replaced By: A0019901967
152
SCREW-IN FITTING DELIVERY LINE TO PUMP
155
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
161
LINE , Replaced By: A0005516256
161
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
167
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
167
LINE , Replaced By: A0005516256
170
UNION NUT LINE CONNECTION
173
GLAND LINE CONNECTION
176
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
182
LINE RETURN, FROM FITTING TO OIL TANK
185
UNION NUT LINE CONNECTION
188
GLAND LINE CONNECTION
191
T-FITTING LINE CONNECTIONS
194
HOSE , NOT USED
197
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
197
CLAMP , Replaced By: N000000000667
200
BRACKET , Replaced By: A3464310240
200
BRACKET DELIVERY AND RETURN LINES TO FRAME
200
BRACKET AIR SPRING VALVE
206
BRACKET DELIVERY AND RETURN LINES TO FRAME
209
SCREW BRACKET TO CROSS CONNECTION STRUT
209
SCREW , Replaced By: N304017008034
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
212
NUT , Replaced By: N913004008001
212
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
215
SCREW LICENSE PLATE TO BRACKET
215
SCREW , Replaced By: N304017006020
218
NUT , Replaced By: N913004006001
218
NUT PUMP TO BRACKET
221
CLAMP OIL DIPSTICK TO RADIATOR
227
SCREW BRACKET TO CROSS CONNECTION STRUT
227
SCREW , Replaced By: N304017008034
230
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
230
NUT , Replaced By: N913004008001
230
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
