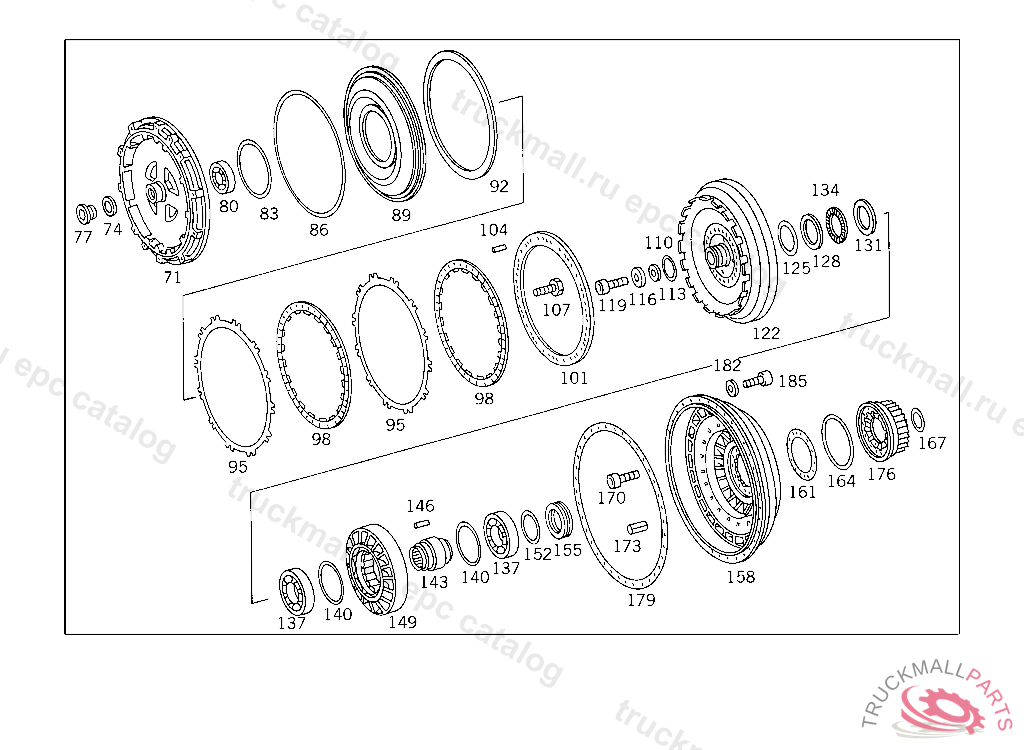

Поз.
Артикул
Описание
71
COVER CONVERTER
74
SEAL RING SUCTION LINE TO OIL PUMP,CIRCUIT II
77
SCREW PLUG FRONT COVER
80
BALL BEARING WITH RELEASE LEVER BEARING WITH BUSHING
80
BALL BEARING , Replaced By: A0069819225
83
SEAL RING CONVERTER LOCK-UP PISTON,INSIDE
86
SEAL RING CONVERTER LOCK-UP PISTON,OUTSIDE
89
PISTON LOCK-UP COUPLING 10.2 MM
89
PISTON LOCK-UP COUPLING 9.6 MM
89
PISTON LOCK-UP COUPLING 10.90 MM
89
PISTON , Replaced By: A0002570441
92
SPRING RETAINER LOCK-UP COUPLING
95
OUTER DISC LOCK-UP COUPLING
98
INNER DISC LOCK-UP COUPLING
98
INNER DISC , Replaced By: A0002570246
98
INNER DISC , Replaced By: A0002570346
98
INNER DISC , Replaced By: A0002570446
101
WASHER LOCK-UP COUPLING
104
PIN , Replaced By: A0009911852
104
NIPPLE WASHER TO COVER
107
SCREW , Replaced By: N304017008024
107
SCREW BRACKET TO EXHAUST PIPE BRACKET
110
SEAL RING CONVERTER TO DRIVE SHAFT
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.60 MM
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.00 MM
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 2.50 MM
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.10 MM
113
SPACER WASHER , Replaced By: A0042645652
113
SPACER WASHER , Replaced By: A0042645752
113
SPACER WASHER , Replaced By: A0042645752
113
SPACER WASHER , Replaced By: A0042644852
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.70 MM
113
SPACER WASHER CONVERTER TO DRIVE SHAFT 1.80 MM
116
WASHER CONVERTER TO DRIVE SHAFT
119
SCREW CONVERTER TO DRIVE SHAFT
122
TURBINE WHEEL
122
TURBINE WHEEL , Replaced By: A0002570706
125
WASHER TURBINE WHEEL 1.40 MM
125
WASHER TURBINE WHEEL 1.20 MM
125
WASHER TURBINE WHEEL 1.00 MM
125
WASHER TURBINE WHEEL 1.70 MM
125
WASHER TURBINE WHEEL 1.60 MM
125
WASHER TURBINE WHEEL 1.80 MM
125
WASHER TURBINE WHEEL 1.90 MM
125
WASHER TURBINE WHEEL 2.00 MM
128
WASHER TURBINE WHEEL
131
WASHER TURBINE WHEEL
134
NEEDLE BEARING TORSIONAL VIBRATION DAMPER
134
NEEDLE BEARING , Replaced By: A0159816710
137
BALL BEARING FREEWHEEL
140
WASHER FREEWHEEL
143
INNER RING FREEWHEEL
146
PIN FREEWHEEL
149
GUIDE WHEEL TORQUE CONVERTER
149
GUIDE WHEEL , Replaced By: A0002571507
152
FITTED WASHER FREEWHEEL
155
TAPERED ROLLER BEARING FREEWHEEL
158
IMPELLER CONVERTER
161
GASKET GEAR TO IMPELLER
164
SEAL RING GEAR TO IMPELLER
167
WASHER GEAR TO IMPELLER
170
SCREW GEAR TO IMPELLER
173
CLAMPING SLEEVEROCKINGER,TYP 59 U150
173
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
176
GEAR PUMP GEAR
179
GASKET IMPELLER TO COVER
182
WASHER IMPELLER TO COVER
185
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
185
SCREW , Replaced By: N000912008203
