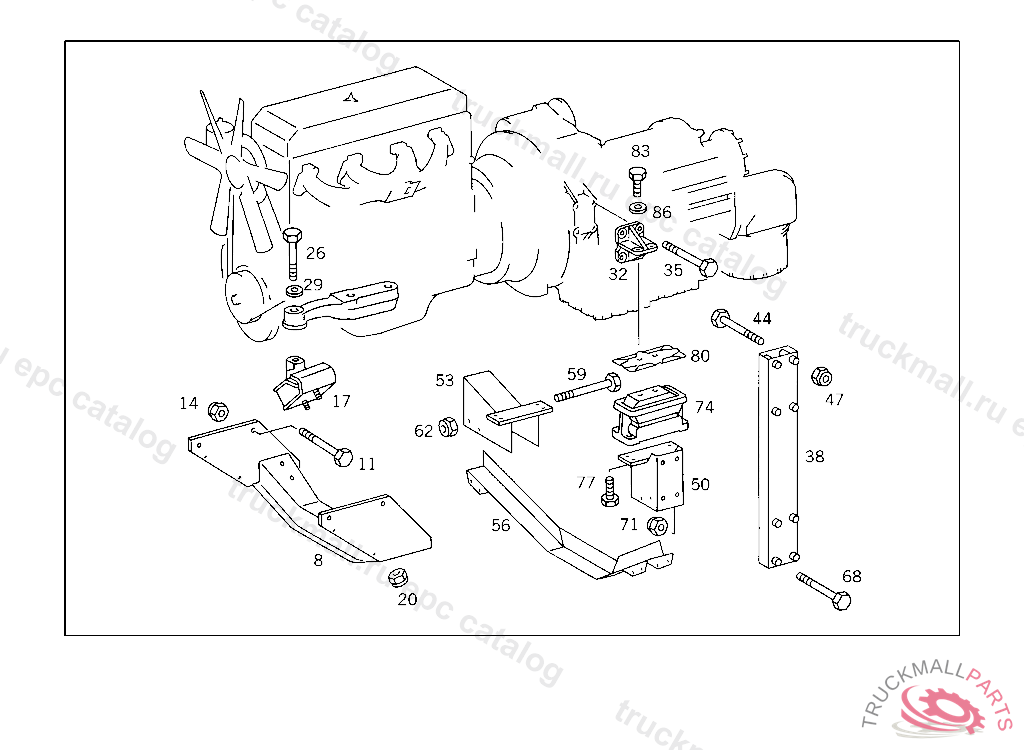

Поз.
Артикул
Описание
8
ENGINE CROSS MEMBER ENGINE FRONT SUSPENSION
11
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
11
SCREW , Replaced By: N308676016013
14
NUT CONSOLE TO SUPPORT
14
NUT , Replaced By: N910113016001
17
RUBBER MOUNTING FRONT
20
NUT SUPPORT TO SIDE MEMBER
26
SCREW SUPPORT TO TRANSMISSION M 16X1.5X65
29
WASHER CONSOLE TO FRAME
32
SUPPORTING ARM REAR
35
SCREW CONSOLE TO FRAME
35
SCREW , Replaced By: N308676016020
38
ENGINE SUPPORT ENGINE REAR SUSPENSION
44
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
47
NUT STEERING SUPPORT TO FRAME
47
NUT , Replaced By: N910113014000
50
CONSOLE ENGINE LEFT SUPPORT
53
CONSOLE ENGINE RIGHT SUPPORT
56
ENGINE SUPPORT TRANSVERSE
59
SCREW RIGHT BOTTOM ANTINOISE CAPSULE TO FRAME M10X1X20,5 505597
62
HEXAGON NUT
62
NUT , Replaced By: N910113010002
68
HEXAGON HEAD BOLT. SCREW PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
68
SCREW , Replaced By: N308765012003
71
NUT SUPPORT TO SIDE MEMBER
74
RUBBER MOUNTING REAR
74
RUBBER MOUNTING REAR
74
RUBBER MOUNTING REAR
77
SCREW BRACKET TO LEFT SIDE MEMBER
80
SCREENING PLATE REAR RUBBER MOUNTING
83
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
83
SCREW , Replaced By: N308676016004
86
WASHER CONSOLE TO FRAME
