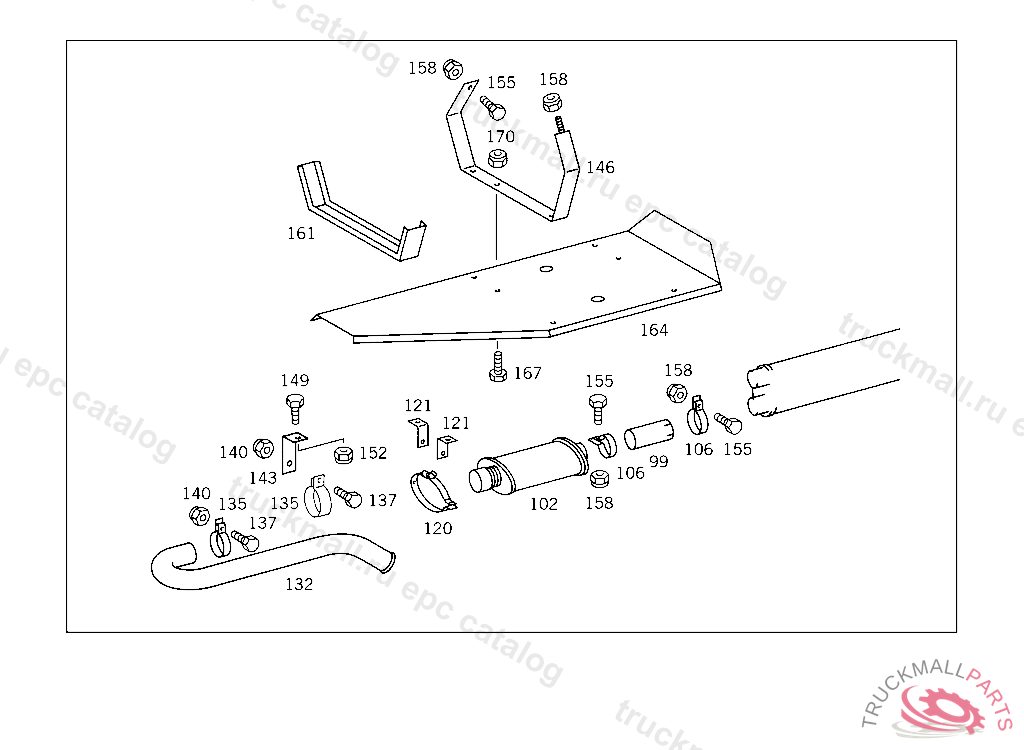

Поз.
Артикул
Описание
99
FRONT EXHAUST PIPE PRE-MUFFLER
102
EXHAUST MUFFLER (POSTERIOR MUFFLER)
106
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
106
CLAMP FRONT EXHAUST PIPE TO BRACKET
120
BRACKET REAR MUFFLER SUSPENSION
121
BRACKET REAR MUFFLER SUSPENSION
132
REAR EXHAUST PIPE (TAIL PIPE)
135
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
135
CLAMP FRONT EXHAUST PIPE TO BRACKET
137
SCREW BRACKET TO SIDE MEMBER
140
NUT STRAP TO BRACKET
143
BRACKET TAIL PIPE
146
BRACKET EXHAUST PIPE TO SUPPORT
149
SCREW PIPE CLAMP
149
SCREW , Replaced By: N304017008021
152
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
152
NUT , Replaced By: N913004008001
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
155
SCREW END PIECE TO EXHAUST PIPE M 10X25
158
NUT STRAP TO BRACKET
158
NUT STRAP TO BRACKET
158
NUT STRAP TO BRACKET
158
NUT STRAP TO BRACKET
158
NUT , Replaced By: N910113010000
161
PAD EXPANSION TANK TO SUPPORT
164
PROTECTIVE PLATE
167
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
167
SCREW , Replaced By: N304017008016
170
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
170
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT , Replaced By: N913004008001
