Поз.
Артикул
Описание

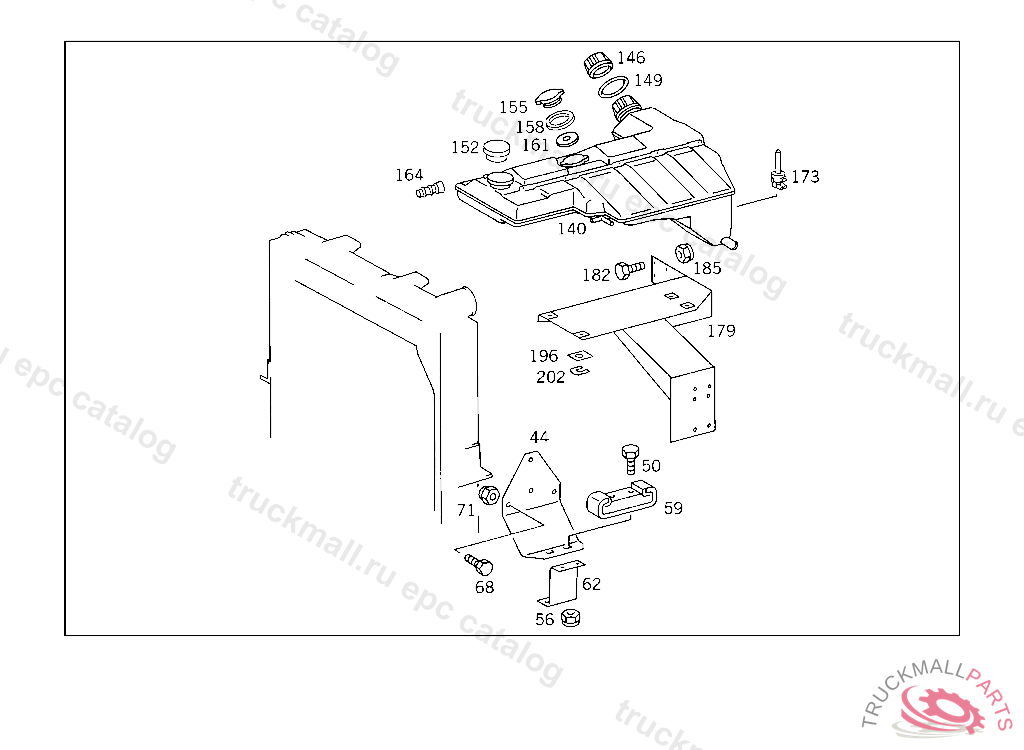

44
BRACKET RADIATOR,FRONT
50
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
50
SCREW EXHAUST PIPE TO BRACKET
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
59
RUBBER MOUNTING RADIATOR
62
BRACKET RUBBER MOUNTING TO BRACKET AND TO RADIATOR
68
SCREW END PIECE TO EXHAUST PIPE M 12X30
68
SCREW , Replaced By: N304017012020
71
NUT END PIECE TO EXHAUST PIPE
140
TANK COOLING WATER EXPANSION
146
RADIATOR CAP FILLER NECK
146
RADIATOR CAP , Replaced By: A0005016415
149
SEAL RING
152
RADIATOR CAP
155
RADIATOR CAP CENTRAL
155
RADIATOR CAP CENTRAL
158
GASKET O.D., 52 MM
161
GASKET O.D., 37 MM
164
DRAIN PIPE
173
SENDER UNIT COOLING WATER LEVEL INDICATOR
179
BRACKET EXPANSION TANK
182
SCREW BRACKET TO SIDE MEMBER
182
SCREW , Replaced By: N304017010002
185
NUT STRAP TO BRACKET
185
NUT , Replaced By: N910113010000
196
PLATE FROM EXPANSION TANK TO RADIATOR
202
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
