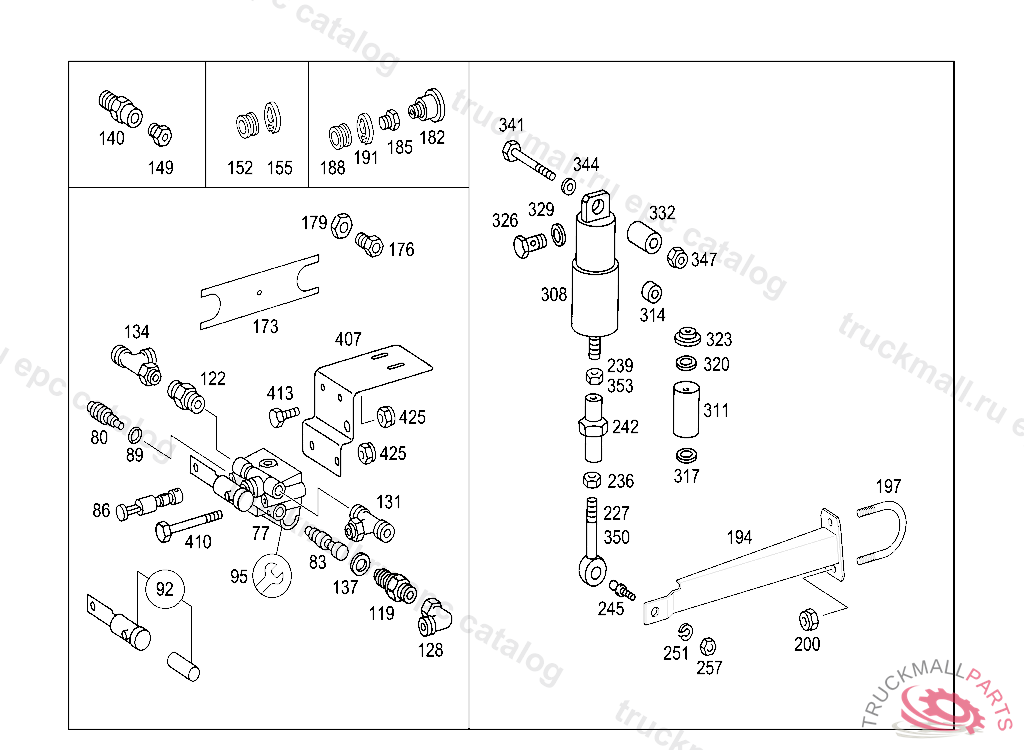

Поз.
Артикул
Описание
77
VALVE FRONT AXLE LEVEL ADJUSTMENT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
77
VALVE FRONT AXLE LEVEL ADJUSTMENT
80
VALVE INTAKE
83
VALVE EXHAUST
86
SHAFT87 MM
89
SEAL RINGTO 000 431 59 14
92
LEVER (PARTS KIT)
95
REPAIR KIT
119
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
122
FITTING LINE CONNECTION, Replaced By: N000000006446
128
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
131
T-FITTING
134
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
137
SEAL RING SRREW PLUG
140
FITTING LINE CONNECTION
149
SCREW. UNION SCREW , Replaced By: A0009973734
152
SEAL RING , Replaced By: A0009940747
155
LOCK , Replaced By: A0009945448
173
BRACKET
176
FITTING AT AIR RESERVOIR
179
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
179
NUT CHECK VALVE TO AIR RESERVOIR
182
MUFFLER , Replaced By: A0004302370
182
MUFFLER TRAILER CONTROL VALVE
182
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
185
SCREW. UNION SCREW , Replaced By: A0009973734
188
SEAL RING , Replaced By: A0009940747
191
LOCK , Replaced By: A0009945448
194
LEVER FRONT AXLE LEVEL ADJUSTMENT
197
CLAMP LEVER TO TORSION BAR
200
NUT BRACKET TO FIRE WALL
227
BALL SOCKET
236
NUT OPERATING ROD
239
NUT L.H. THREAD
242
NUT FRONT AXLE LEVEL ADJUSTMENT
245
BALL PIVOT ACCELERATOR PEDAL,4 859026
245
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
251
LOCK WASHER CABLE TO FUSE BOX
257
NUT BRACKET TO FIRE WALL
257
NUT SPRING-LOADED PUSH ROD
308
CYLINDER FRONT AXLE LEVEL ADJUSTMENT
308
CYLINDER REAR AXLE PNEUMATIC SUSPENSION
311
CUP
314
MOUNTING
317
SEAL RING
320
SEAL RING
323
SEAL RING
326
HOLLOW SCREW LINE CONNECTION
326
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
329
SEAL RING LINE CONNECTION
332
SPACER TUBE POWER CYLINDER TO LEVER
332
SPACER TUBE POWER CYLINDER TO BEARING BRACKET
332
BUSHING CYLINDER TO REAR AXLE BEARING BRACKET
341
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
341
SCREW BRACKET TO SIDE MEMBER
341
SCREW SUPPORT TO FENDER
344
WASHER BRACKET TO FENDER BRACKET
347
NUT , UP TO IDENT NO. 000837 EXCEPT FOR 000614,000616,000621,000626,000631,000634,000662,000783,000785,000792,000793,000811.
347
NUT POWER CYLINDER TO SPRING SUPPORT
347
NUT HORN TO BRACKET M8
350
BALL SOCKET PULL ROD TO LEVER
353
NUT OPERATING ROD
407
BRACKET LEVEL ADJUSTMENT
407
BRACKET 3/2-WAY VALVE
410
SCREWM6X65
413
SCREW BRACKET TO CAB REAR PANEL M 8X20
425
NUT HORN TO BRACKET M8
999
LOOM TIE LINE MOUNTING
