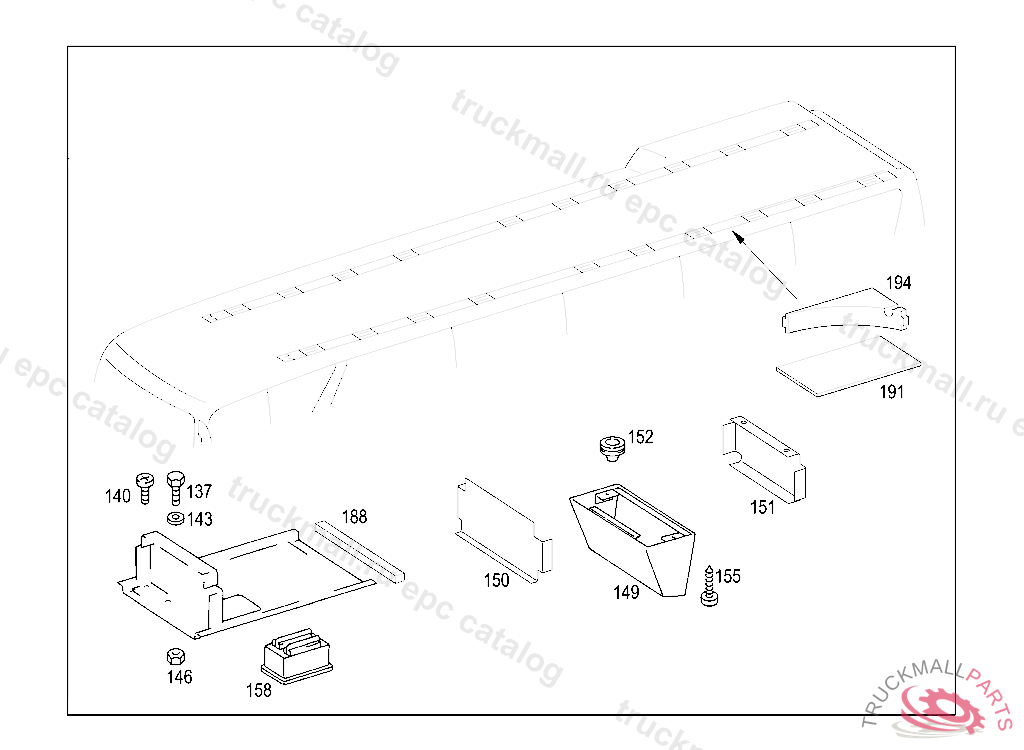

O350 TOURISMO-RHD O 403-RHD EURO2 - 613.455 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
137
HEXAGON HEAD BOLT
140
SCREW , Replaced By: N000000001145
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
WASHER SWITCH TO FIRE WALL
146
NUT SPRING-LOADED PUSH ROD
149
COVERING
149
HOUSING. COVERING
150
COVERING
151
COVERING
152
GROMMET FOR PASSAGE OF LINE
155
SHEET METAL SCREW
155
COUNTERSUNK SCREW,. SHEET METAL SCREW CLOCK
158
NOZZLE
158
NOZZLE
188
SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
191
SEAL
194
AIR DUCT
