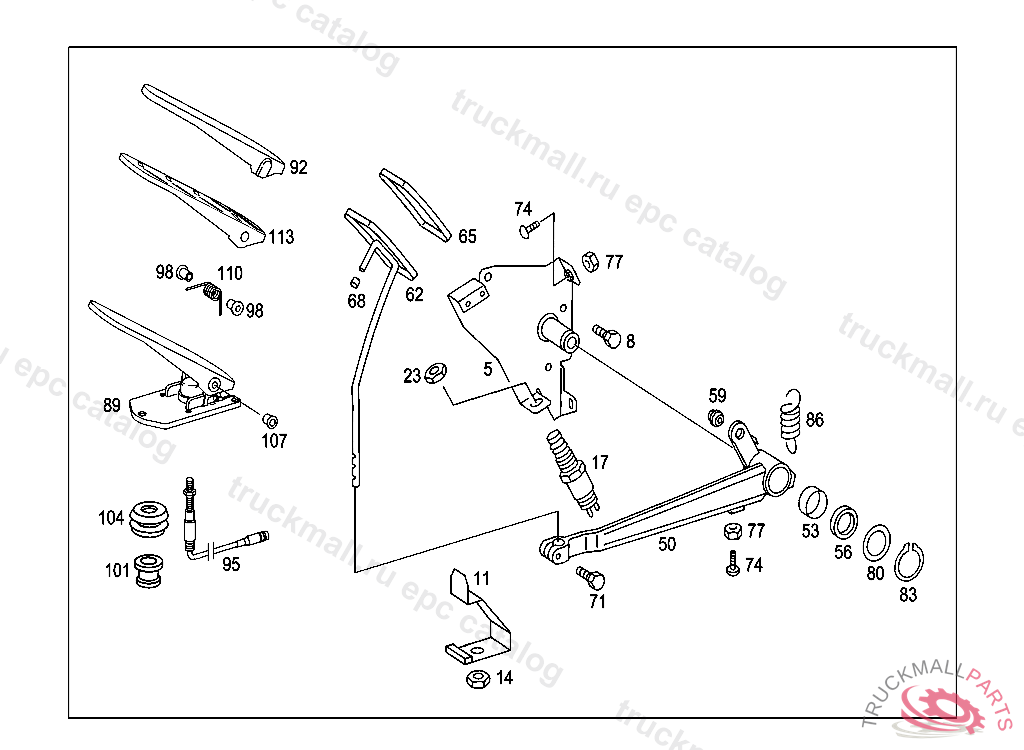

Поз.
Артикул
Описание
5
BEARING BRACKET , Replaced By: A3562900819
5
BEARING BRACKET CLUTCH PEDAL BEARING BRACKET
8
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
11
BRACKET SENSOR
14
NUT SUCTION LINE TO OIL PUMP
17
SENDER UNIT CLUTCH OPERATION EPS, TO BE ADAPTED DURING ASSEMBLY
23
NUT SUCTION LINE TO OIL PUMP
50
PEDAL CLUTCH
53
BUSHING
56
SEAL RING CLUTCH PEDAL
59
JOINT BEARING , FROM IDENT NO. 000162 ALSO INSTALLED ON 000041,000047,000048,000105,000120
62
PEDAL PLATE CLUTCH PEDAL
65
PAD BRAKE PEDAL
68
COVERING PEDAL PLATE TO PEDAL
71
SCREW CLAMP TO EXHAUST PIPE
74
STOP CLUTCH PEDAL STOP
77
NUT
77
NUT TIGHTENER PULLEY TO SUPPORT
80
FITTED WASHER CLUTCH PEDAL TO BEARING BRACKET
83
LOCK RING CLUTCH PEDAL TO BEARING BRACKET
86
SPRING (RELEASE SPRING)
89
BRAKE PEDAL SERVICE BRAKE VALVE
92
PAD BRAKE PEDAL
95
CONTROL UNIT RETARDER CONTROL
98
GUIDE BUSHING
101
BUSHINGWABCO
104
SEAL RINGWABCO
107
BUSHING
110
SPRING
113
PEDAL PLATE
