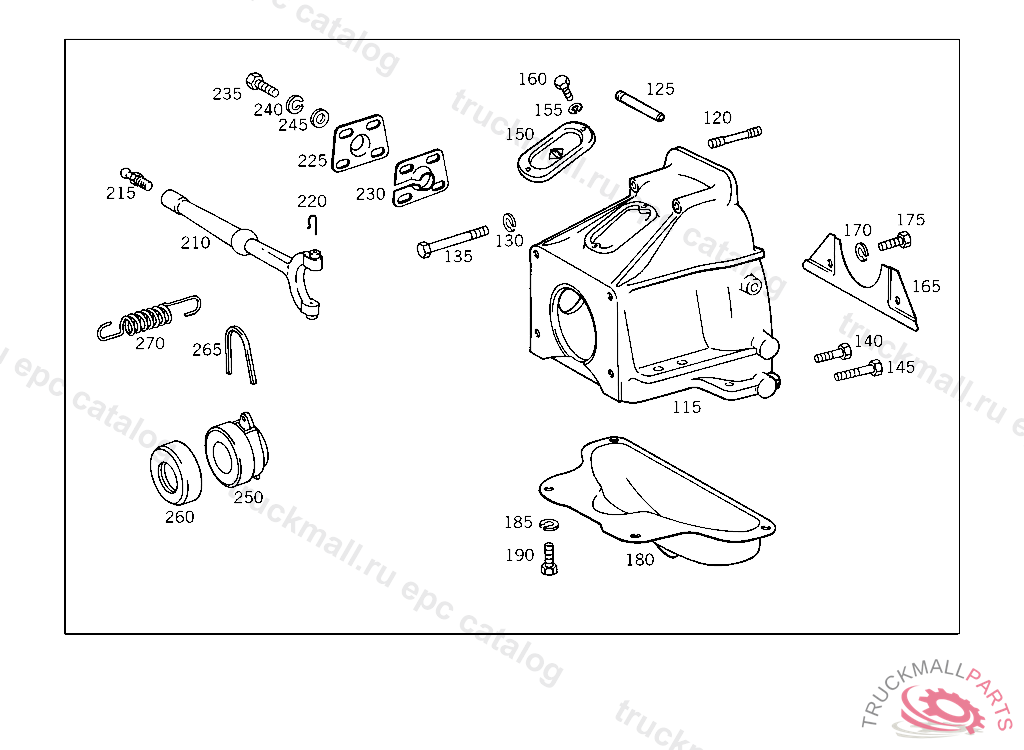

Поз.
Артикул
Описание
115
HOUSING , UP TO IDENT NO. 760271 EXCEPT FOR 500001-599999, Replaced By: A3102510301, +003A0009902805
115
120
STUD BOLTTO 345 250 70 05
120
STUD BOLT BELL HOUSING, FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 502153,502155,502162,502192-502195,502198-502204,502207-599999,918576,921744,921785,921797,922052, 922078,922195,922255,922267,922336,922675,922688,922719,922739,922763,922853. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098. 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS/DIN) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS/DIN)
125
125
PIN
130
LOCK WASHER BRACKET TO SUPPORTING ARM
135
SCREW THROTTLE HOUSING TO EXHAUST LINE
140
SCREW BELL HOUSING TO CYLINDER CRANKCASE
145
SCREW , Replaced By: A0029906804
150
END COVER , Replaced By: A3602510004
150
END COVER TOP,4 696330
155
SPRING WASHER LICENSE PLATE TO BRACKET
160
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
165
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
165
PROTECTIVE PLATE , Replaced By: A3522500055
170
LOCK WASHER CLAMP TO BRACKET
175
SCREW HOSE TO BRACKET
180
BELL HOUSING , Replaced By: A3142510002
180
185
LOCK WASHER CLAMP TO BRACKET
190
SCREW HOSE TO BRACKET
210
210
210
210
215
BALL PIVOT ,FB001827
220
SPRING LOCK RELEASE COLLAR TO RELEASE YOKE
220
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
225
BEARING OUTSIDE, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
225
230
230
BRACKET INSIDE, INAPPLICABLE TO SUPERCHARGING SYSTEM609835
235
SCREW BRACKET TO SIDE MEMBER
240
LOCK WASHER
245
WASHER , Replaced By: N000125008443
250
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 473926, Replaced By: A3402500215
250
RELEASE BEARING , Replaced By: A3522500115
250
RELEASE BEARING , Replaced By: A3522500515
260
AUSRUCKLAGER. FLANGED BEARING , Replaced By: A0002540020
260
RELEASE BEARING , UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
260
RELEASE BEARING
265
STRIP ,KB846165
270
SPRING CLUTCH PEDAL
999
ROLLERTO 341 250 00 04
999
CLUTCH PRESSURE PLATETO 000 250 51 04
999
PINTO 341 250 00 04
999
PINTO 341 250 00 04
999
SPRINGTO 341 250 00 04
999
RELEASE LEVERTO 341 250 00 04
999
PRESSURE SPRINGTO 341 250 00 04
999
RELEASE COLLARTO A 322 250 02 15
999
PLUG BELL HOUSING,410179
999
RELEASE LEVER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 327 293 01 11,302 991 00 15,KB846165 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
CLUTCH DISC
999
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 084364
999
REPAIR KIT , 341.250 UP TO CHASSIS A 002139
999
999
RELEASE COLLARTO 352 250 05 15
999
COTTER PIN ROD TO CENTRAL LOCKING MECHANISM
