Поз.
Артикул
Описание
5

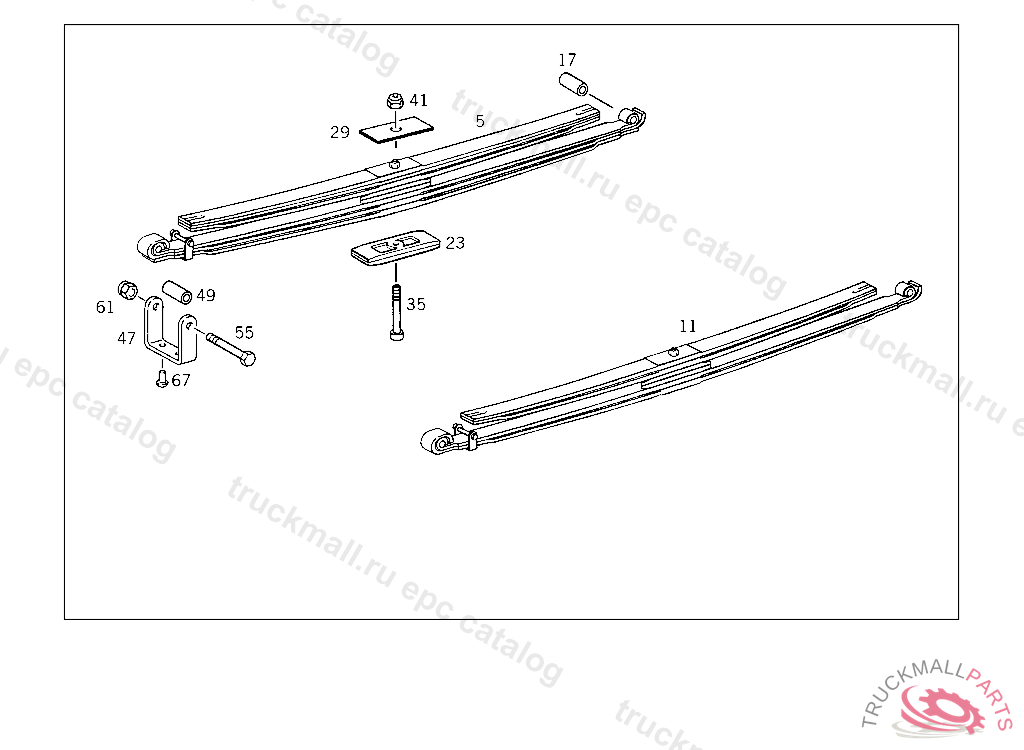

REAR SPRING (PARABOLIC SPRING),3-LEAF, WITH 3-LEAF HELPER SPRING, 385 991 04 64 SHEAR BUSHING TO BE ELIMINATED UP TO CHASSIS 4 888166, SEE SERVICE INFORMATION 32/8
5
REAR SPRING (PARABOLIC SPRING),3-LEAF, WITH 2-LEAF HELPER SPRING
5
REAR SPRING (PARABOLIC SPRING),3-LEAF, WITH 2-LEAF HELPER SPRING
11
REAR SPRING (PARABOLIC SPRING),2-LEAF, WITH 2-LEAF HELPER SPRING, DELIVER ADDITIONALLY:1X 004626 012112 SPRING BOLT UP TO CHASSIS 4 888166, SEE INFORMATION 32/8
11
REAR SPRING (PARABOLIC SPRING),2-LEAF, WITH 1-LEAF HELPER SPRING
11
REAR SPRING (PARABOLIC SPRING),2-LEAF, WITH 2-LEAF HELPER SPRING
17
BUSHING , Replaced By: A3523250150
17
BUSHING
17
BUSHING
23
SPACER
29
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
29
SHIM , NOT USED
35
SPRING BOLT
35
SPRING BOLT , Replaced By: A6173241271
35
SPRING BOLT
35
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
35
SPRING BOLTM 12X195
35
SPRING BOLT
35
SPRING BOLTM 12 X 165,4 888167
41
HEXAGON NUT. NUT SPRING BOLT
41
NUT , Replaced By: N910113012005
47
SPRING CLAMP ,5 940410
47
SPRING CLAMP , Replaced By: A6173210333
47
SPRING CLAMP , Replaced By: A6173210333
49
SPACER TUBE SPRING CLAMP
55
SCREW SPRING CLAMP
61
NUT STRAP TO SUPPORT
67
RIVET SPRING CLAMP TO SPRING LEAF,5 940410
999
SPRING BOLT
