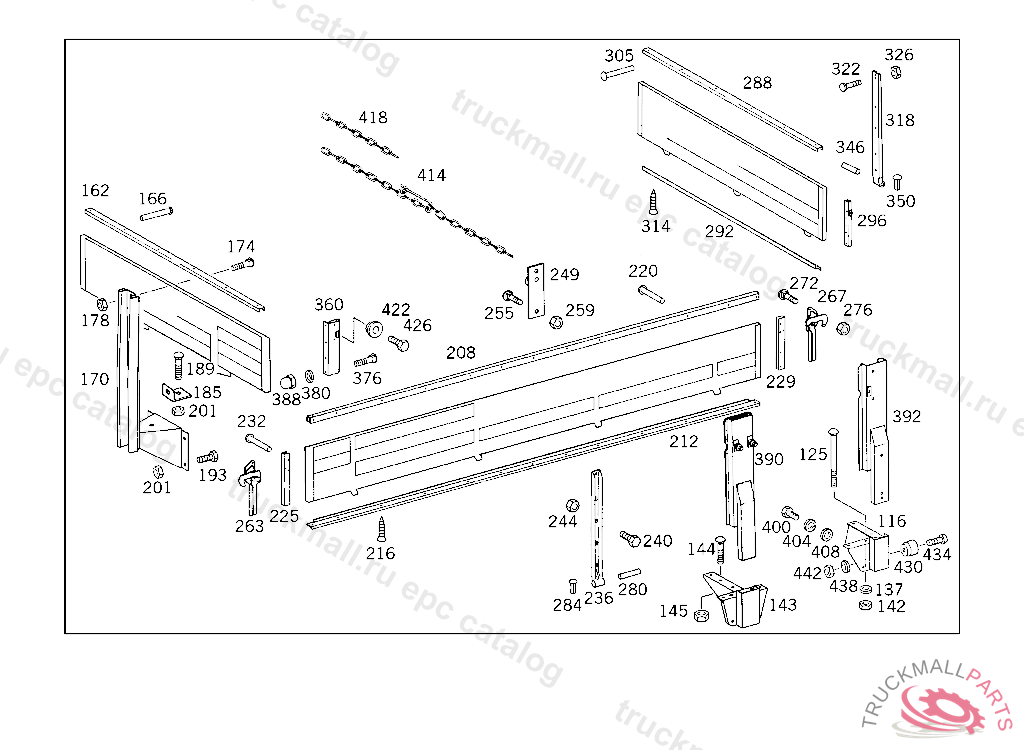

Поз.
Артикул
Описание
116
TAKE-UP DEVICE LEFT REAR,4 1182308 000001-8 001702
116
TAKE-UP DEVICE RIGHT REAR,4 1182308 000001-8 001702
125
SCREW EDGING TO FLOOR M 8X100
137
WASHER HIGH PRESSURE HOSE TO BRACKET
142
NUT , Replaced By: N913004008001
142
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
143
TAKE-UP DEVICE
144
SCREW BRACKET TO BODY M8X40
145
NUT , Replaced By: N913004008001
145
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
162
BINDING RAIL TOP
166
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
170
BRACING FRONT PANEL
174
SCREW PLATFORM MOUNTING M 8X35
174
SCREW PLATFORM MOUNTING M 8X35
174
SCREW BRACKET TO BODY M8X40
178
NUT
185
ANGLE FRONT PANEL TO SUBSTRUCTURE
189
SCREW BRACKET TO BODY M8X40
193
SCREW , Replaced By: N304017008016
193
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
201
NUT , Replaced By: N913004008001
201
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
BINDING RAIL TOP
212
BINDING RAIL REAR SIDE PANEL
216
WOOD SCREW BINDING RAIL TO PLATFORM SIDE PANEL
220
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
225
BINDING RAIL LEFT
229
BINDING RAIL RIGHT
232
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
236
HINGE REAR PANEL,4 118230
236
HINGE WITH CHAIN FASTENER,4 1182308 000001-8 001702
240
SCREW PLATFORM MOUNTING M 8X35
244
NUT
263
HOOK LEFT FRONT AND RIGHT REAR
267
HOOK RIGHT
272
SCREW BRACKET TO BODY M8X40
276
NUT
280
PIN
284
GROOVED NAIL PLATFORM SIDE PANEL TO SUBSTRUCTURE,4 1182308 000001-8 001702
288
RAIL , Replaced By: A3146371470
288
BINDING RAIL TOP
292
RAIL , Replaced By: A3146371970
292
BINDING RAIL REAR SIDE PANEL
296
METAL SECTION LEFT AND RIGHT,4 118230 TO BE ADAPTED DURING ASSEMBLY
296
RAIL , Replaced By: A0029854451
296
RAIL , Replaced By: A0029854451
305
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
305
RIVET BINDING RAIL TO PLATFORM FRONT PANEL
314
WOOD SCREW BINDING RAIL TO PLATFORM SIDE PANEL
318
HINGE REAR PANEL,4 118230
322
SCREW PLATFORM MOUNTING M 8X35
326
NUT
346
PIN
350
GROOVED NAIL PLATFORM SIDE PANEL TO SUBSTRUCTURE,4 1182308 000001-8 001702
360
INSERT RAIL FRONT RIGHT
360
INSERT RAIL FRONT RIGHT,4 1182308 000001-8 001702
360
INSERT RAIL FRONT LEFT
360
INSERT RAIL FRONT LEFT
376
SCREW BRACKET TO BODY M8X40
376
SCREW REAR SIDE PANEL M8X50
380
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
388
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
388
NUT , Replaced By: N913004008001
390
INSERT RAIL CENTRAL TO 314 600 31 03,314 600 32 03
390
INSERT RAIL CENTRAL TO 314 600 28 03,314 600 29 03,4 1182308 000001-8 001702
392
INSERT RAIL REAR RIGHT
392
INSERT RAIL REAR RIGHT,4 1182308 000001-8 001702
392
INSERT RAIL REAR LEFT,4 118230
392
INSERT RAIL REAR LEFT,4 1182308 000001-8 001702
400
SCREW PIPE CLAMP
400
SCREW , Replaced By: N304017008021
404
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
408
WASHER BRACKET TO LEFT SIDE MEMBER
408
WASHER , Replaced By: N009021008213
414
CHAIN WITH CHAIN LOCK
418
CHAIN , ORDER BY THE METER
422
WASHER (ECCENTRIC PLATE) PLATFORM PANEL FASTENER
426
SCREW
430
RUBBER BUFFER PLATFORM SIDE AND REAR PANELS
434
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
434
SCREW , Replaced By: N007985005532
438
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
438
WASHER , Replaced By: N009021005205
442
NUT IN CASE OF SUBSEQUENT INSTALLATION
442
NUT , Replaced By: N304032005005
999
THREADED INSERT. THREADED CHUCK FOLDING STEP TO REAR PANEL
999
PLATFORM , EXHAUST STOCK OF OLD PARTS NUMBER FIRST FROM IDENT NO. 613536-4 755509, Replaced By: A3146003103
999
CROSS MEMBER FRONT AND REAR,4 435173
999
PLATE THREADED
