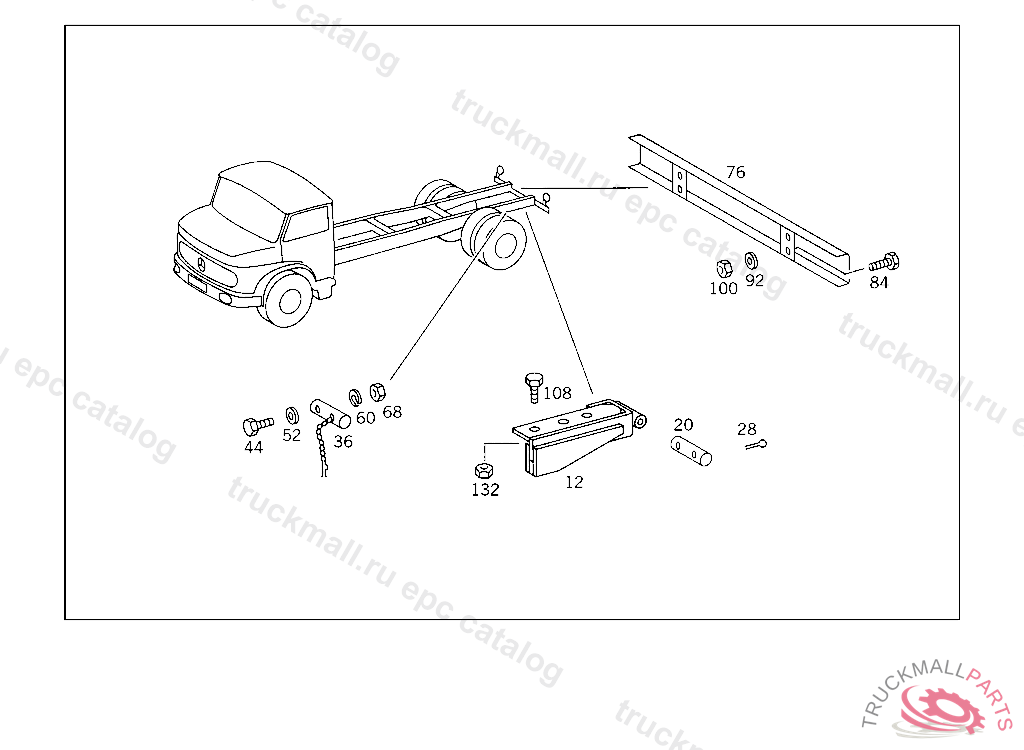

Поз.
Артикул
Описание
12
BRACKET LEFT TOP
12
BRACKET LEFT TOP
12
BRACKET LEFT TOP
12
BRACKET RIGHT TOP
12
BRACKET RIGHT BOTTOM
12
BRACKET RIGHT TOP
12
BRACKET LEFT BOTTOM
12
BRACKET RIGHT TOP
20
PIN REAR INSIDE RIGHT
28
COTTER PIN ENGINE CONTROL
36
PIN
44
SCREW PIN TO FRAME
52
WASHER , Replaced By: N000433005304
60
LOCK WASHER T-FITTING TO BRACKET
68
NUT
76
BUMPER
84
SCREW GROUND STRAP TO CAB CROSS MEMBER M 10X25
92
WASHER , Replaced By: N000125010532
100
NUT , Replaced By: N910113010000
108
SCREW , Replaced By: N304017012020
108
SCREW BRACKET TO FRAME
108
SCREW BRACKET TO LEFT SIDE MEMBER
132
NUT STRAP TO SUPPORT
