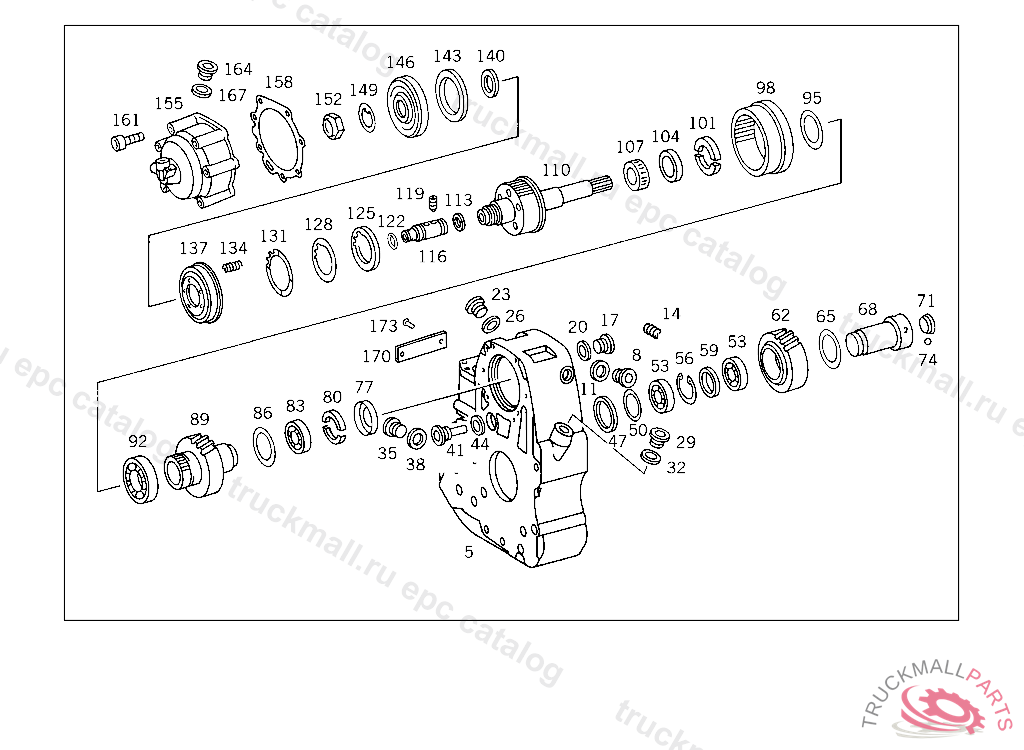

Поз.
Артикул
Описание
5
HOUSING P.T.O.
5
HOUSING P.T.O.
5
HOUSING P.T.O.
5
HOUSING P.T.O.
8
SCREW PLUG TOP LEFT AND RIGHT
11
SEAL RING OIL FILLING AND OIL DRAIN
14
THREADED CHUCK P.T.O. HOUSING
17
SCREW PLUG, FILLING HOUSING,BOTTOM
17
SCREW PLUG , Replaced By: N000000000648
20
SEAL RING PNEUMATIC VALVE
23
SCREW PLUG FUEL DISCHARGE
26
SEAL RING
29
SCREW PLUG CASE,LEFT
32
SEAL RING OIL RETURN
35
SCREW PLUG
38
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
41
SCREW P.T.O. HOUSING
44
SEAL RING TEMPERATURE GAUGE SENDER UNIT
47
SEAL RING TWIN GEAR
50
SPACER RING INTERMEDIATE GEAR,178644
53
TAPERED ROLLER BEARING INTERMEDIATE GEAR
53
TAPERED ROLLER BEARING INTERMEDIATE GEAR
53
TAPERED ROLLER BEARING COUNTERSHAFT,FRONT
53
TAPERED ROLLER BEARING , Replaced By: A0129814405
53
TAPERED ROLLER BEARING , Replaced By: A0129815105
53
TAPERED ROLLER BEARING , Replaced By: A0129817405
53
TAPERED ROLLER BEARING , Replaced By: A0149811405
53
TAPERED ROLLER BEARING , Replaced By: A0149811405
53
TAPERED ROLLER BEARING , Replaced By: A0129815105
56
LOCK RING OUTPUT SHAFT
59
SPACER RING INTERMEDIATE GEAR
62
GEAR (INTERMEDIATE GEAR)
65
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.30MM
65
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 0.50 MM
65
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15MM
65
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10MM
65
SPACER WASHER INTERMEDIATE SHAFT, AS REQUIRED 0.80 MM
68
SHAFT INTERMEDIATE GEAR
71
SCREW PLUG SPINDLE
74
BALL
77
LOCK DRIVE SHAFT
80
RING HALF GEAR, AS REQUIRED 4.20 MM
80
RING HALF GEAR, AS REQUIRED 3.80 MM
80
RING HALF GEAR, AS REQUIRED 3.70 MM
80
RING HALF GEAR, AS REQUIRED 4.55 MM
80
RING HALF GEAR, AS REQUIRED 3.75 MM,117535
80
RING HALF GEAR, AS REQUIRED 3.65 MM
80
RING HALF GEAR, AS REQUIRED 4.15 MM
80
RING HALF GEAR, AS REQUIRED 4.10 MM,198563
80
RING HALF GEAR, AS REQUIRED 4.35 MM,117535
80
RING HALF GEAR, AS REQUIRED 4.25 MM
80
RING HALF GEAR, AS REQUIRED 4.50 MM
80
RING HALF GEAR, AS REQUIRED 4.70 MM,117535
80
RING HALF GEAR, AS REQUIRED 3.85 MM,117535
80
RING HALF GEAR, AS REQUIRED 3.60 MM
80
RING HALF GEAR, AS REQUIRED 4.30 MM
80
RING HALF GEAR, AS REQUIRED 4.65 MM
80
RING HALF GEAR, AS REQUIRED 3.90 MM
80
RING HALF GEAR, AS REQUIRED 3.95 MM
80
RING HALF GEAR, AS REQUIRED 4.05 MM
80
RING HALF GEAR, AS REQUIRED 4.00 MM
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872624230
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872625230
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872624030
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872623930
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872623830
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872623730
80
RING HALF , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 198562, Replaced By: A3872623630
80
RING HALF , Replaced By: A3872622730
80
RING HALF , Replaced By: A3872624530
80
RING HALF , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3872623230
80
RING HALF , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3872622930
83
TAPERED ROLLER BEARING P.T.O.
83
TAPERED ROLLER BEARING P.T.O.
86
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.10 MM,117534
86
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.15 MM,117534
86
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.50 MM,117534
86
SPACER WASHER DRIVE SHAFT,AS REQUIRED 0.20 MM,117534
89
GEAR P.T.O.
89
GEAR P.T.O.
92
TAPERED ROLLER BEARING P.T.O.
92
TAPERED ROLLER BEARING P.T.O.
92
TAPERED ROLLER BEARING P.T.O.
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.10 MM,117535
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.30 MM,117535
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.25 MM
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.15 MM,117535
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.05 MM
95
SPACER WASHER DISC SUPPORT, AS REQUIRED 0.50 MM
98
DISC SUPPORT DRIVE SHAFT,FRONT
101
RING HALF DISC SUPPORT, AS REQUIRED 4.07 MM
101
RING HALF DISC SUPPORT, AS REQUIRED 4.12 MM,117535
101
RING HALF DISC SUPPORT, AS REQUIRED 4.22 MM
101
RING HALF DISC SUPPORT, AS REQUIRED 4.17 MM
101
RING HALF DISC SUPPORT, AS REQUIRED 4.02 MM
101
RING HALF DISC SUPPORT, AS REQUIRED 3.97 MM
101
RING HALF DISC SUPPORT, AS REQUIRED 4.27 MM
104
LOCK DISC SUPPORT
107
NEEDLE BEARING REAR DRIVE SHAFT
107
NEEDLE BEARING REAR DRIVE SHAFT
110
DRIVE SHAFT DISC SUPPORT
113
PISTON RING OIL PIPE
116
OIL PIPE DRIVE SHAFT
119
HEADLESS SETSCREW PLANET GEAR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
122
SEAL RING DRIVE SHAFT
125
WASHER DRIVE SHAFT
128
INNER DISC DRIVE SHAFT
128
INNER DISC DRIVE SHAFT
131
OUTER DISC MULTI-DISC COUPLING
134
SPRING MULTI-DISC COUPLING
137
PISTON MULTI-DISC COUPLING
140
SEAL RING PISTON
143
SEAL RING PISTON
146
SHIFTING CYLINDER MULTI-DISC COUPLING
149
THRUST WASHER MULTI-DISC COUPLING
152
NUT , Replaced By: A9452640072
155
COVER FRONT
158
GASKET , Replaced By: A3892640180
158
GASKET COVER TO P.T.O. CASE
161
SCREW , Replaced By: N000912008204
161
SCREW. CAP BOLT SEAT MOUNTING M8X35
164
SCREW PLUG, FILLING HOUSING,BOTTOM
164
SCREW PLUG , Replaced By: N000000000648
167
SEAL RING PNEUMATIC VALVE
170
UNIT IDENTIFICATION PLATE , Replaced By: A4055840624
170
UNIT IDENTIFICATION PLATE P.T.O. HOUSING
173
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
173
RIVET , Replaced By: N001476003007
999
SEAL RING
999
SEAL RING CASE COVER
999
SEAL RING
999
COVER
999
TRANSMISSION CASE COVER TRANSMISSION CASE COVER,CLUTCH SIDE
999
TRANSMISSION CASE COVER
999
TRANSMISSION CASE COVER
999
SEAL RING DRIVE SHAFT
999
ROD
999
ROD
999
ROD
999
NUT MULTI-DISC COUPLING
