Поз.
Артикул
Описание

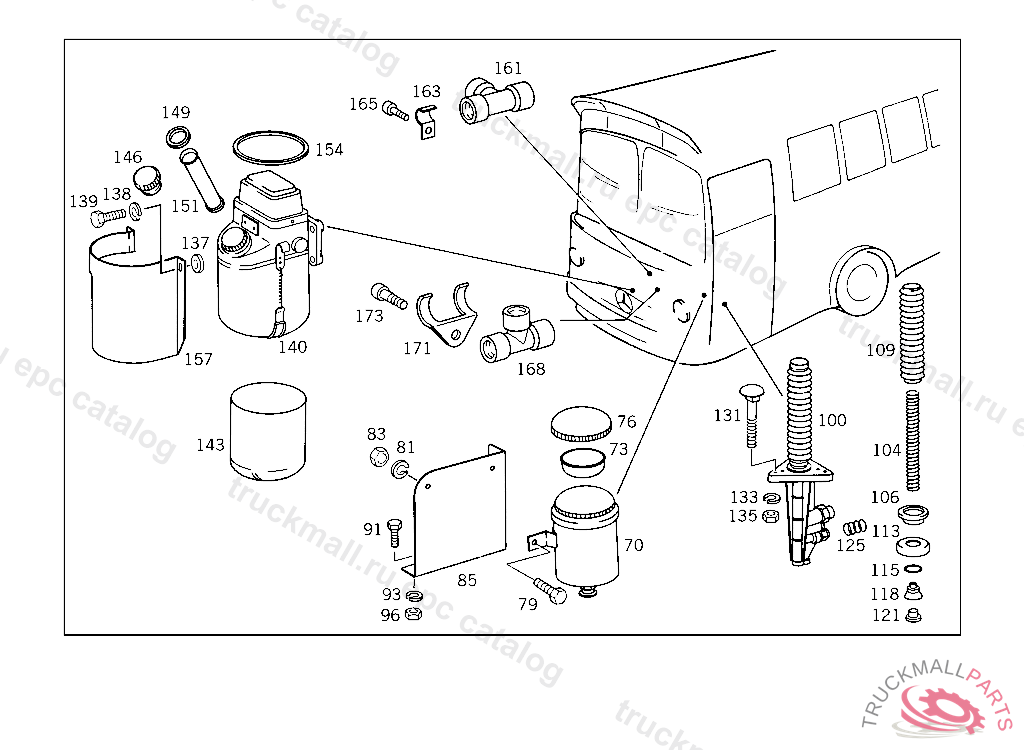

70
RESERVOIR OIL, USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
73
SIEB VOLLSTANDIG. STRAINER , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
76
COVER , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
79
SCREW COVER PLATE TO BRACKET
81
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
NUT BALL PIVOT TO LEVER
85
BRACKETTO 000 571 08 04, USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM000436
91
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
91
SCREW , Replaced By: N304017006012
93
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
96
NUT BALL PIVOT TO LEVER
100
PUMP , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
104
SPRING , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
106
SPRING RETAINER , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
109
BOOT , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
113
CLAMPING RING , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
115
SEAL RING , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
118
BOOT , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
121
SPRING RETAINER , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
125
SPRING , USED WITH FOOT PUMP OPERATED CENTRAL LUBRICATION SYSTEM
131
SCREW BRACKET TO CAB, NOT USED
133
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
135
NUT BALL PIVOT TO LEVER
137
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
138
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
139
SCREW APPARATUS PLATE M 6X85
140
OIL PUMP12 V, USED WITH FULLY AUTOMATIC CENTRAL LUBRICATION SYSTEM
143
RESERVOIR
146
SCREW PLUG OIL FILLING
149
SEAL RING OIL FILLING
151
STRAINER OIL FILLING
154
SEAL RING OIL PUMP HOUSING
157
COVER PLATE , USED WITH FULLY AUTOMATIC CENTRAL LUBRICATION SYSTEM000677
161
T-FITTING REAR AXLE,031054
163
CLAMP T-FITTING TO SUBSTRUCTURE
165
SHEET METAL SCREW T-FITTING TO SUBSTRUCTURE
168
T-STUCK RECHTS. T-FITTING
171
CLAMP T-FITTING TO SUBSTRUCTURE
173
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
999
OIL PUMP , Replaced By: A0001805501
999
BRAKE LIGHT SWITCH. SWITCH , Replaced By: A0005456109
999
SCREW PLUG DISTRIBUTOR
999
999
999
999
999
SEAL RING T-FITTING
999
SCREW DISTRIBUTOR
999
LINE ORDER BY THE METER 4 MM
999
SEAL RING
999
CONNECTOR TRAILER COUPLING,FRONTVOGEL
999
SWIVEL FITTING DISTRIBUTOR
999
CONNECTOR , Replaced By: A0005730629
999
999
HOLLOW SCREW
999
ELBOW
999
ELBOW
999
CONNECTOR DISTRIBUTOR
999
CONNECTOR EXTERNAL THREAD, M 6
999
999
999
999
999
999
999
DISTRIBUTOR WITH 2 AIR CHAMBERS, ON VEHICLES WITH 29 LUBRICATION POINTS
999
999
DISTRIBUTOR ON THE RIGHT,WITH 4 AIR CHAMBERS
999
999
999
999
999
BRACKET
999
999
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
999
SCREW COVER PLATE TO BRACKET
999
SEAL RING FUEL LINE TO FEED PUMP
999
999
SEAL RING T-FITTING
999
999
CLAMP LINE MOUNTING
999
999
LOOM TIE HAND PUMP
999
999
SCREW , Replaced By: N000000001479
999
SCREW , Replaced By: N910105006005
