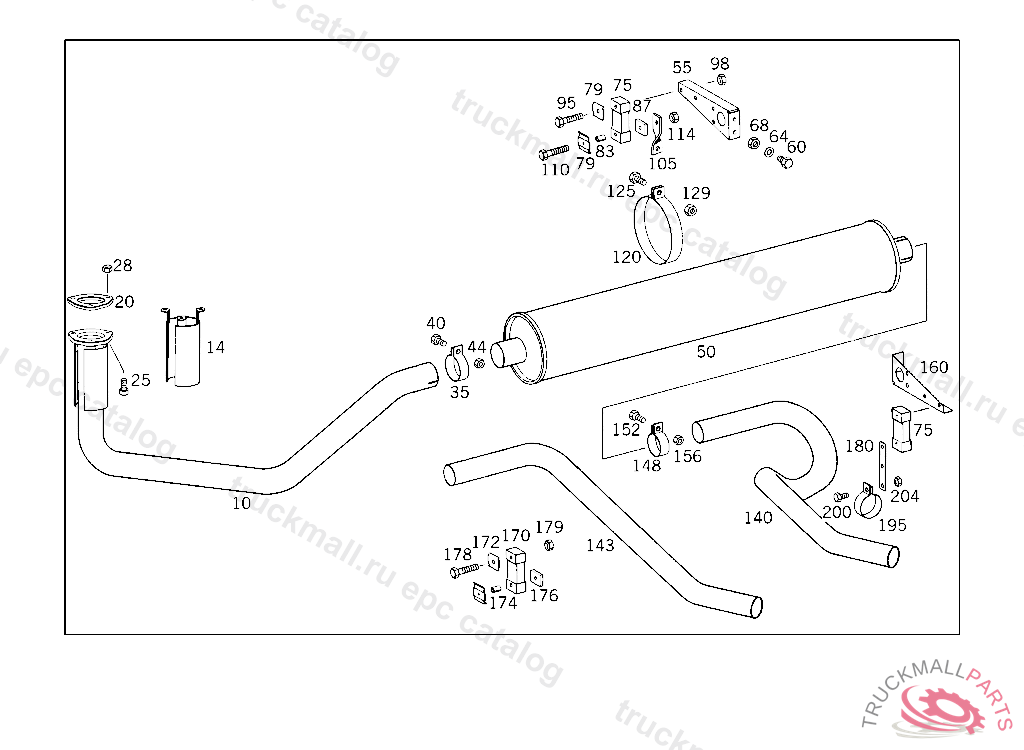

Поз.
Артикул
Описание
10
EXHAUST PIPE FRONT
14
PROTECTIVE PLATE FRONT
20
FLANGE GASKET FRONT EXHAUST PIPE TO EXHAUST MANIFOLD, UP TO CHASSIS 4 409726,FROM CHASSIS,NO LONGER REQUIRED
20
FLANGE GASKET , Replaced By: A4424920280
25
SCREW FRONT EXHAUST PIPE TO EXHAUST MANIFOLD M 10X50
28
NUT EXHAUST PIPE TO SIDE MEMBER
35
CLAMP FRONT EXHAUST PIPE TO MUFFLER
40
SCREW BRACKET TO CROSS CONNECTION STRUT
40
SCREW , Replaced By: N304017008034
44
HEXAGON NUT SCREENING PLATE,5 163561
44
NUT , Replaced By: A1201420072
50
EXHAUST MUFFLER
55
SUPPORT RIGHT AIR RESERVOIR
60
SCREW END PIECE TO EXHAUST PIPE M 10X25
64
WASHER RADIATOR TO RUBBER MOUNTING
64
WASHER , Replaced By: N000125010532
68
NUT STRAP TO BRACKET
68
NUT , Replaced By: N910113010000
75
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
79
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
83
SPACER TUBE FRONT EXHAUST PIPE,B 884219
87
INSULATING WASHER. INSULATION , Replaced By: A3094900037
95
SCREWM 8X40
98
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
98
NUT , Replaced By: N913004008001
105
BRACKET AT MUFFLER,5 194472
110
SCREW VALVE TO BRACKET
114
NUT , Replaced By: A1201420072
114
HEXAGON NUT SCREENING PLATE,5 163561
120
BRACKET EXHAUST MUFFLER SUSPENSION
125
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
129
NUT EXHAUST PIPE TO SIDE MEMBER
140
REAR EXHAUST PIPE (TAIL PIPE),4 282708
143
REAR EXHAUST PIPE
148
CLAMP REAR EXHAUST PIPE TO MUFFLER
148
CLAMP REAR EXHAUST PIPE TO MUFFLER
152
SCREW , Replaced By: N304017008034
152
SCREW BRACKET TO CROSS CONNECTION STRUT
152
SCREW BRACKET TO CROSS CONNECTION STRUT
156
HEXAGON NUT SCREENING PLATE,5 163561
156
HEXAGON NUT SCREENING PLATE,5 163561
156
NUT , Replaced By: A1201420072
160
SUPPORT RIGHT AIR RESERVOIR
170
RUBBER DAMPING PLATE. DAMPING PAD , Replaced By: A3095860049
172
CLAMPING PLATE. BASE PLATE FRONT EXHAUST PIPE,B 884219
174
SPACER TUBE FRONT EXHAUST PIPE,B 884219
176
INSULATING WASHER. INSULATION , Replaced By: A3094900037
178
SCREWM 8X40
179
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
179
NUT , Replaced By: N913004008001
180
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
180
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
195
CLAMP60.5 MM,4 613839
195
CLAMP , Replaced By: N000000001642
200
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
200
SCREW , Replaced By: N304017008027
204
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
204
NUT , Replaced By: N913004008001
999
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
999
REPAIR KIT , Replaced By: A3094900037
999
SUPPORT RIGHT AIR RESERVOIR
999
EXHAUST PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3184901719
999
CONNECTOR BEHIND EXHAUST MUFFLER
