Поз.
Артикул
Описание
5

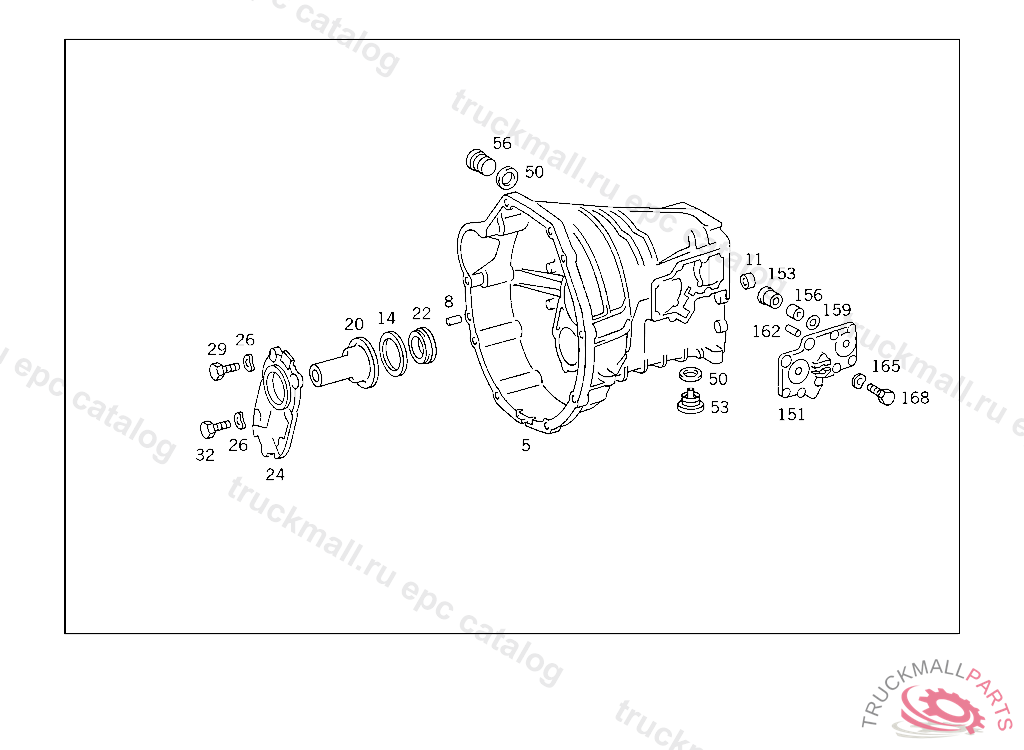

TRANSMISSION CASE
5
TRANSMISSION CASE , Replaced By: A0002601411
8
CYLINDRICAL PIN
11
BUSHING
14
WASHER
14
WASHER0.4
14
WASHER0.3
14
WASHER0.5
20
GUIDE TUBE
22
SEAL RING
22
SEAL RING
24
TRANSMISSION CASE COVER
26
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SPRING WASHER , Replaced By: N000137008212
29
SCREW , Replaced By: N304017008027
29
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
32
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
32
SCREW , Replaced By: N000933008337
32
SCREW , Replaced By: A0099900101
50
SEAL RING OIL FILLING AND OIL DRAIN
53
SCREW PLUG OIL DRAIN
53
SCREW PLUG , Replaced By: A2109970032
56
SCREW PLUG , Replaced By: A2109970132
56
SCREW PLUG
151
COVER
153
BUSHING
156
NEEDLE BEARING , Replaced By: A0129810510
159
SEAL RING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
162
CYLINDRICAL PIN DRIVE SHAFT,REAR
165
SPRING WASHER LICENSE PLATE TO BRACKET
168
SCREW COVER PLATE TO BRACKET
