Поз.
Артикул
Описание

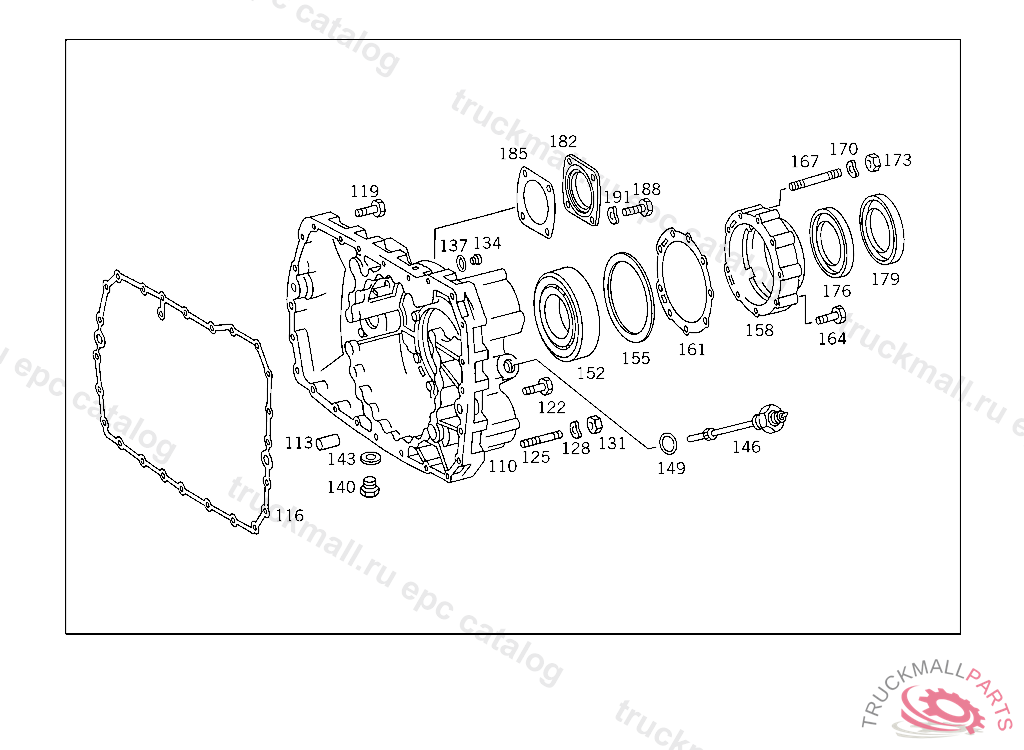

110
TRANSMISSION CASE TRANSMISSION CASE REAR COVER
110
TRANSMISSION CASE , Replaced By: A0012612801
113
PIN BETWEEN HOUSING I AND HOUSING II
116
GASKET TRANSMISSION CASE REAR COVER
116
GASKET , Replaced By: A0002615280
119
SCREW , Replaced By: N304017010053
119
SCREW , Replaced By: N304017010030
119
SCREW CASE COVER TO TRANSMISSION M 10X50
119
SCREW PIPE ELBOW TO BRACKET M 10X50
122
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
122
SCREW , Replaced By: N304014010004
125
STUD BOLT COVER TO TRANSMISSION CASE M 10X55
128
SPRING WASHER STEERING COLUMN BRACKET TO CAB
131
NUT BATTERY CABLE
131
NUT BRACKET TO SUPPORT AND TO END PIECE
134
SCREW PLUG, FILLING HOUSING,BOTTOM
134
SCREW PLUG , Replaced By: N000000000648
137
SEAL RING , Replaced By: N007603010110
137
SEAL RING PNEUMATIC VALVE
140
SCREW PLUG , Replaced By: A2109970132
140
SCREW PLUG
143
SEALING RING. SEAL RING OIL DRAIN
146
SHAFT (SPEEDOMETER CABLE)
149
SEAL RING OIL LINE TO OIL COOLER
152
BALL BEARING TRANSMISSION CASE REAR COVER
155
SPACER WASHER OUTPUT SHAFT,AS REQUIRED 0.40 MM
155
SPACER WASHER AS REQUIRED 0.20 MM, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
155
SPACER WASHER AS REQUIRED 0.30 MM, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
155
SPACER WASHER AS REQUIRED 0.60 MM
158
BEARING CAP TRANSMISSION CASE
161
GASKET , Replaced By: A0002615380
161
GASKET TRANSMISSION CASE
164
SCREW PIPE ELBOW TO BRACKET M 10X50
164
SCREW , Replaced By: N304017010053
164
SCREW , Replaced By: N304017010030
176
SEAL RING , Replaced By: A0219976447
176
SEAL RING OUTPUT FLANGE
176
SEAL RING OUTSIDE
179
SEAL RING OUTSIDE
179
SEAL RING , Replaced By: A0219976447
179
SEAL RING , Replaced By: A0199977647
