Поз.
Артикул
Описание

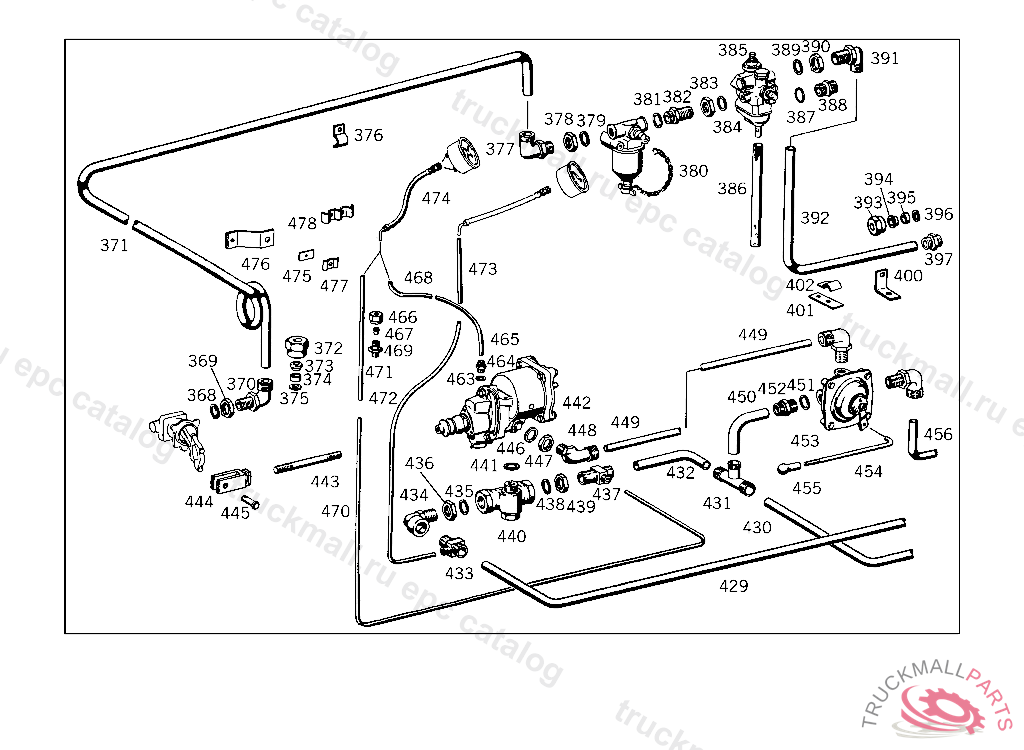

368
SEAL RING
369
NUT
370
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
371
LINE 18 MM FROM AIR COMPRESSOR TO PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION, FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
372
UNION NUT TO 18-MM-DIA. COMPRESSED AIR LINES
373
SLIP RING TO 18-MM-DIA. COMPRESSED AIR LINES
374
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
375
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
376
CLAMP FEED LINE TO THERMOSTAT
376
CLAMP
376
CLAMP , Replaced By: A3049950120
377
ELBOW FITTING , BM 341.038 USED WITH HYDRAULIC BRAKE,BM 341,041,042,044 UP TO IDENT NO. A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059425,A 059426,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
378
NUT
379
SEAL RING
380
TIRE INFLATOR CYLINDER
381
SEAL RING LINE CONNECTION
382
DOUBLE FITTING BETWEEN TIRE INFLATOR CYLINDER AND PRESSURE REGULATOR
383
NUT
384
SEAL RING
385
VALVE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78, Replaced By: A0004318906
385
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION
386
HOSE , FROM CHASSIS 023244, EXCEPT FOR, SEE FOOTNOTE 78
387
SEAL RING LINE CONNECTION
388
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
389
SEAL RING
390
NUT
391
ELBOW FITTING
392
LINE 15 MM, ON SPECIAL REQUEST, H.D. OIL BATH AIR CLEANER
393
UNION NUT BUTT SCREW CONNECTION
394
SLIP RING BRAKE LINE COUPLING
395
THRUST RING BUTT SCREW CONNECTION
396
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
396
SEAL RING , Replaced By: N007603012121
397
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
400
BRACKET , 023243
401
BRACKET HEATING WATER LINE
402
CLAMP FUEL LINE TO BRACKET
402
CLAMP , Replaced By: A1109950401
429
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
431
T-FITTING , 10, FROM CHASSIS 022604
432
LINE 15 MM, 10, FROM CHASSIS 022604
433
T-FITTING
434
ELBOW FITTING
435
SEAL RING
436
NUT
437
T-FITTING
438
SEAL RING
439
NUT
440
VALVE , 10, FROM CHASSIS 022604, Replaced By: A0004312307
440
VALVE
441
SEAL RING LINE CONNECTION
442
BRAKE BOOSTER , Replaced By: A3444317014
443
ROD
444
YOKETO 312 430 43 92,344 430 70 92, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
445
PIN , 385.068,069,FOR USE WITH MERCEDES-BENZ CAB
446
SEAL RING
447
NUT
448
ELBOW FITTING
449
LINE
449
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
450
LINE 15 MM, 10, FROM CHASSIS 022604
451
SEAL RING LINE CONNECTION
452
DOUBLE FITTING FROM PRESSURE REGULATOR TO AIR RESERVOIR
453
BRAKE VALVE
454
ROD
455
BALL SOCKET
456
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
463
SEAL RING LINE CONNECTION
464
DOUBLE FITTING
465
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
465
PIPE LINE , Replaced By: A0004290001
466
UNION NUT
467
GLAND , Replaced By: A0019901667
467
SEAL CONE
468
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
468
PIPE LINE , Replaced By: A0004290001
469
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
470
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
470
PIPE LINE , Replaced By: A0004290001
471
PIPE LINE , Replaced By: A0004290001
471
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
472
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
472
PIPE LINE , Replaced By: A0004290001
473
PIPE LINE , Replaced By: A0004290001
473
LINE FROM FITTING TO VALVE 6X1 MM, LENGTH AVAILABLE 3000 MM
474
HOSE PRESSURE GAUGE
475
PLATE
476
BRACKET LINE MOUNTING, INAPPLICABLE TO SUPERCHARGING SYSTEM398035
477
CLAMP LINE MOUNTING
477
CLAMP BRAKE LINE TO SIDE AND CROSS MEMBERS
478
CLAMP
999
SCREW PLUG , Replaced By: A0004315433
999
RESERVOIR , Replaced By: A0004311602
999
SCREWED NIPPLE. FITTING , Replaced By: A0084230084
999
SCREW PLUG CONNECTION "1","2",4 478330
999
ROHRVERSCHRAUBUNG EM. UNION SCREW LINE MOUNTING
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE FRONT AXLE, FROM IDENT NO.: 001078 ALSO INSTALLED ON 000486,000532,000698,000721,000732,000737,000764,000794,000795,000798,000816,000823,000827,000828, 000833,000840,000847,000853,000865,000870,000884,000891,000901,000909,000944,000984,001032,001078, 001155,001156,001219,001363,001385,001427.
999
PIN
999
DIAPHRAGMTO 344 429 73 44
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST WASHER FOR DIAPHRAGM
999
VALVE CONEBOSCH
999
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
999
COVERTO 000 429 48 30
999
COVERWABCO
999
BRAKE LINE COUPLING WITH SHUT-OFF VALVE
999
AIR CLEANER
999
DISTRIBUTOR REAR AXLE,4 478330
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
BRAKE LINE COUPLING AT REAR CROSS MENBER
999
REPAIR KITKNORR
999
STRAINERTO 002 430 31 01
999
CONNECTOR , FROM IDENT NO. 001338 EXCEPT FOR 0013438 0000014 2827078 000001-8 001702
999
CLAMP FLUID RESERVOIR
999
ANTI-FREEZE DEVICE , Replaced By: A0004312615
999
TEST CONNECTION
999
RESERVOIR , FROM IDENT NO. 001338-613554 EXCEPT FOR 001343
999
PRESSURE REGULATOR
999
CLAMPTO 000 431 58 02
999
VALVE DISC
999
PROTECTIVE CAP BRAKE BOOSTER
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
VALVE (OVERFLOW VALVE)
999
VALVE , 022603, Replaced By: A0004312707
999
ANTI-FREEZE DEVICE
999
VALVE. PRESSURE REGULATOR ,FB486597
999
FILLER CAP , Replaced By: A0004315533
999
CUPBOSCH
999
FILLER CAP , Replaced By: A0004315133
999
FILLER CAPTO 000 431 16 02
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
STRAINER
999
WASHER ANTI-FREEZE DEVICE DRAIN
999
PROTECTIVE CAP , Replaced By: A0009979486
999
CUP , 010506, Replaced By: A0059974746
999
FILLER CAP , Replaced By: A0004315433
999
FILLER CAP BUTTRESS THREAD
999
FILLER CAPTO 000 431 87 02
999
PROTECTIVE CAP
999
TEST CONNECTION REAR AXLE BRAKE CIRCUIT
999
VALVE , FROM CHASSIS 023244 AND FOOTNOTE 51
999
PROTECTIVE CAPWEST 432 199 015 0,030 0
999
RESERVOIR
999
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0004320807, +001N900397000201
999
VALVE DRAIN, Replaced By: A0004322407
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
SPRING CAPSULETO 000 429 16 30
999
VALVE TAPPETTO 000 429 16 30
999
VALVE DISCTO 000 429 48 30
999
VALVE DISCTO 000 429 48 30
999
GASKETTO 000 429 16 30
999
SWITCH , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999, 673432, 673497, 673628,673629,673921
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
REPAIR KITTO 002 430 61 01
999
REPAIR KITTO 002 430 41 01
999
REPAIR KITTEVES
999
REPAIR KIT
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
WICK PARTS KIT TO 000 431 26 15,WEST 432 199 030 0
999
SPRINGTO 000 429 16 30
999
CLAMP BRACKET TO AIR COMPRESSOR
999
PIPE CONNECTION NUT. FITTING ,613554
999
GROMMET
999
GROMMET
999
GROMMET CAB ROOF
999
SEAL RING
999
SEAL RING
999
PLUG
999
VALVE ,600892, Replaced By: A0004296244
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWEST 432 199 015 0,432 199 030 0
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITWABCO
999
REPAIR KIT , FROM 626
999
RESERVOIR COMPRESSED AIR 60 L.
999
SEAL RING42X21.5 MM
999
HOSE
999
SEAL RING
999
SEAL RINGTO 000 429 16 30
999
SEAL RINGBOSCH
999
WASHER ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE, 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
ADJUSTER
999
BEARING BRACKET , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
BRAKE LEVER WITH SHAFT, 005081
999
SPACER WASHER
999
SPACER WASHER2.0 MM, 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
999
LEVER LEFT, ON LEFT DOUBLE LEVER SHAFT
999
HANDLE
999
BRACKET , 003794
999
REPAIR KIT , Replaced By: A3144200067
999
RIVET
999
CLAMP , Replaced By: A1109950401
999
HOSE
