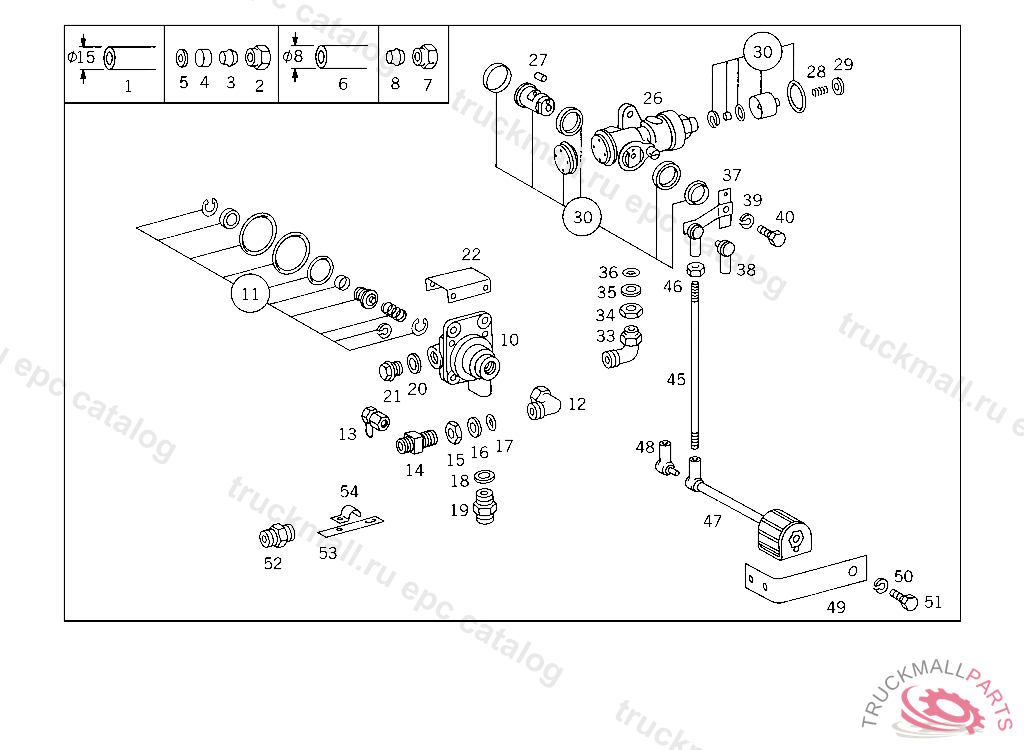

Поз.
Артикул
Описание
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
2
UNION NUT BUTT SCREW CONNECTION
2
UNION NUT AIR COMPRESSOR LINE CONNECTION
3
GLAND LINE CONNECTION
4
THRUST RING BUTT SCREW CONNECTION
5
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
5
SEAL RING , Replaced By: N007603012121
6
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
7
UNION NUT LINE CONNECTION
7
UNION NUT , Replaced By: N915017008100
8
GLAND LINE CONNECTION
10
VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
REPAIR KIT LOAD/NO-LOAD VALVE
11
REPAIR KIT LOAD/NO-LOAD VALVE
12
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
13
TEST CONNECTION
14
T-FITTING
15
NUT CHECK VALVE TO AIR RESERVOIR
16
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
17
O-RING CHECK VALVE TO AIR RESERVOIR
18
SEAL RING LINE CONNECTION
19
FITTING LINE CONNECTION, Replaced By: N000000006446
19
SCREW-IN FITTING LINE CONNECTION
20
SEAL RING LINE CONNECTION
21
SCREW PLUG AT TANK
21
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
22
BRACKET NO-LOAD/LOAD VALVE
26
BRAKE PRESSURE REGULATOR. REGULATOR VALVE LESS LEVER,LOAD-DEPENDING
27
GUIDE BUSHING
28
SPRING
29
SEAL RING
30
REPAIR KIT REGULATING VALVE
33
ELBOW FITTING LINE CONNECTIONS
33
ELBOW FITTING , Replaced By: A0009905471
34
NUT
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
36
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
37
LEVER
38
YOKE
39
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
40
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
45
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
45
PULL ROD , Replaced By: N900331008420
46
NUT
46
NUT
47
METAL SPRING BELLOWS ,4 9579425 498312
47
METAL SPRING BELLOWS ,4 957941, Replaced By: A0004311718, +001N000961012047
47
METAL SPRING BELLOWS , Replaced By: A0004311418
48
YOKE BOTTOM
48
YOKE , Replaced By: A0004310667
49
BRACKET
50
LOCK WASHER FITTING TO BRACKET
51
SCREW METAL SPRING BELLOWS TO BRACKET,4 957941
52
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
53
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
53
BRACKET , Replaced By: A3604293140
54
CLAMP FUEL LINE TO BRACKET
54
CLAMP , Replaced By: A1109950401
54
CLAMP , Replaced By: A3129952420
999
LINE , Replaced By: A0005516256
999
CONNECTOR , Replaced By: A0004312031, +001N074302022304
999
RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE SEAT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
LEVER
999
FILLER CAP , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
LEVER , TO 000 431 22 12 OR 000 431 21 12
999
LEVER
999
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE SEAT , Replaced By: A0004312688
999
STRAINER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
VALVE FRONT
999
PIN , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
PROTECTIVE CAP
999
VALVE SEAT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL RING63X2 MM,032936
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SPRING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEAL LOCKING VALVE TO SOLENOID VALVE, NOT USED
999
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEALING CORD , Replaced By: A0069970245
999
SEALING CORD , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
SEALING CORD BRAKE BOOSTER 34 MM X 2,3 MM, TO 000 431 36 14
999
FITTING , Replaced By: A0019972572
999
PLUG
999
CYLINDR. ROLLER BEARING
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
LEVER
999
LEVER
999
SCREW , Replaced By: N007985005175
999
WASHER RUBBER BUFFER TO PLATFORM
999
LOCK WASHER
999
LOCK RINGTO 000 431 16 14
999
LOCK RINGTO 000 431 94 14,000 431 96 14
999
SCREW BRACKET TO SIDE MEMBER, 815770
999
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: A0099900101
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
NUT INTERMEDIATE SPEED STOP
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW HOOK TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
PULL ROD
999
PULL ROD , Replaced By: N900331008427
999
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD PNEUMATIC SUSPENSION CONTROL
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
