Поз.
Артикул
Описание

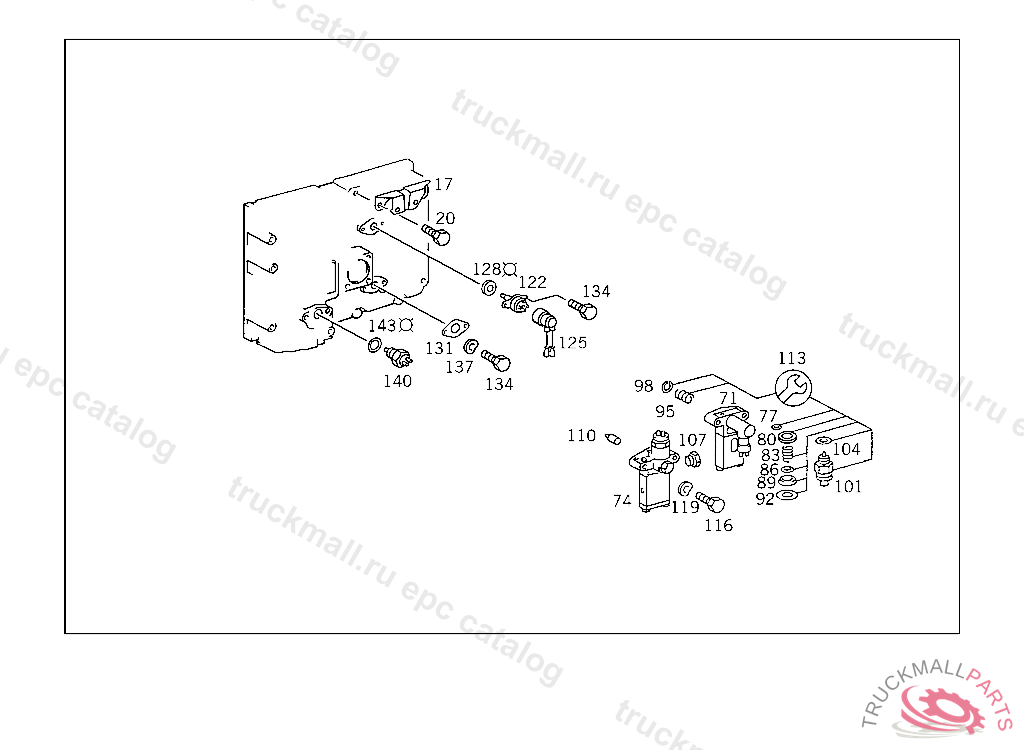

17
BRACKET 3/2-WAY VALVE,001875,5 K 90 GP003320,5 S 90 GP
20
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME
20
SCREW , Replaced By: N304017010055
20
SCREW , Replaced By: N304017010050
71
VALVE CLUTCH BRAKE,131097,5 S 110 GPA131453,5 K 110 GPA
71
VALVE , Replaced By: A0012601157, +001A0002680359, +001A0005454214
74
VALVE , Replaced By: A0012601057, +001A0002680359, +001A0005454214
74
VALVE CLUTCH BRAKE CONTROL
77
SEAL RING VALVE
80
SEAL RING VALVE
83
SPRING VALVE
86
SEAL RING INSIDE WABCO
89
SEAL RING ACTUATING PISTON
92
SEAL RING VALVE
95
SPRING VALVE
98
LOCK RING
101
SWITCH 3/2-WAY VALVE WABCO
104
SEAL RING SWITCH TO CASE COVER
104
SEAL RING , Replaced By: N007603018100
107
SCREW , Replaced By: A0002640789
107
VALVE
110
PIN AS REQUIRED 20.60 MM,4 321817
110
PIN AS REQUIRED 21.20 MM,4 321817
110
PIN AS REQUIRED 20.90 MM,4 321817
110
PIN AS REQUIRED 20.30 MM,4 321817
113
REPAIR KIT 3/2-WAY VALVE,003529,5 S 90 GPA001872,5 K 90 GPA
116
SCREW , Replaced By: N304017008042
116
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
116
SCREW SHOCK ABSORBER TO CONSOLE
119
SPRING WASHER , Replaced By: N000137008212
119
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
140
SWITCH
140
SWITCH
140
SWITCH , Replaced By: A0015455709
140
SWITCH , Replaced By: A0015458214
143
SEAL RING NEUTRAL POSITION SWITCH,4 920019
