Поз.
Артикул
Описание

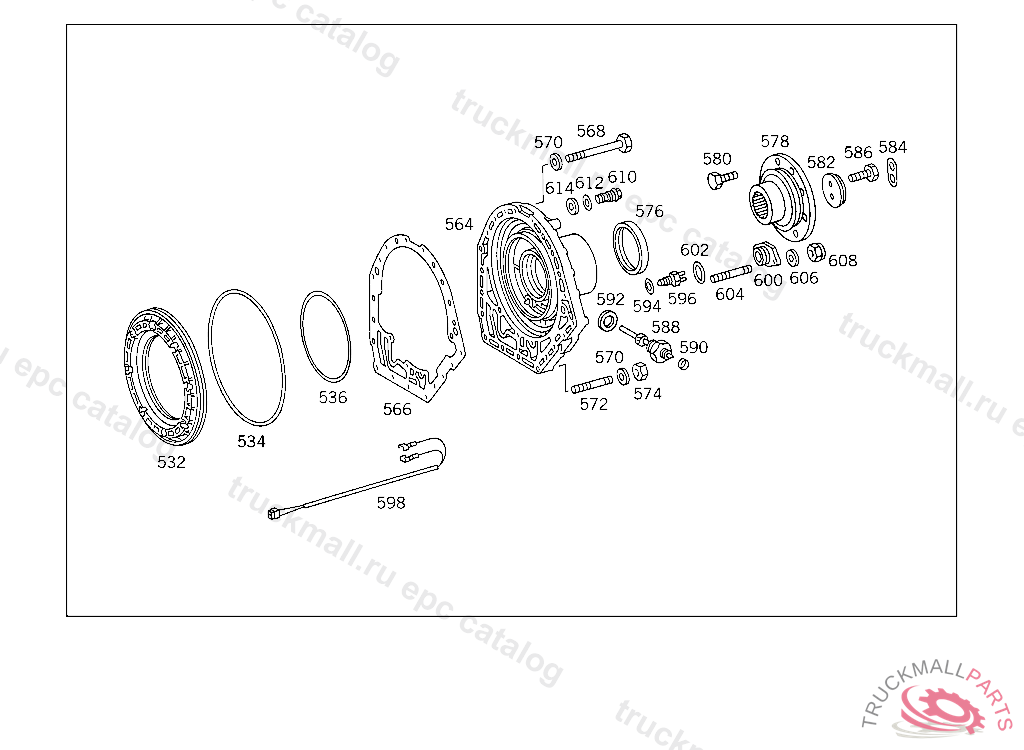

532
PISTON FIRST BRAKE AND REVERSE BRAKE
534
SEAL RING FIRST BRAKE AND REVERSE BRAKE
536
SEAL RING FIRST BRAKE AND REVERSE BRAKE
564
COVER SPEEDOMETER DRIVE
564
COVER , Replaced By: A0002710720
564
COVER , Replaced By: A0002711420
566
GASKET COVER TO TRANSMISSION CASE
568
SCREW COVER TO TRANSMISSION CASE M 10X175
568
SCREW SHUT-OFF COCK TO BRACKET
568
SCREW , Replaced By: N000931010431
570
WASHER , Replaced By: N000125010532
570
WASHER RADIATOR TO RUBBER MOUNTING
572
STUD COVER TO TRANSMISSION CASE M 10X165
574
NUT BRACKET TO SUPPORT AND TO END PIECE
576
SEAL RING OUTPUT FLANGE
578
FLANGE (OUTPUT FLANGE)
580
SCREW
582
THRUST WASHER OUTPUT FLANGE TO OUTPUT SHAFT
584
LOCK SCREW
586
SCREW END PIECE TO EXHAUST PIPE M 12X30
586
SCREW , Replaced By: N304017012020
588
DRIVE SHAFT SPEEDOMETER
590
SEAL RING
592
SEAL RING SPEEDOMETER DRIVE
594
SPACER WASHER AS REQUIRED 1.0 MM
594
SPACER WASHER INDUCTIVE PICKUP 1.00 MM
594
WASHER INDUCTIVE PICKUP 3.00 MM
594
SPACER WASHER AS REQUIRED 1.2 MM
594
SPACER WASHER AS REQUIRED 0.8 MM
594
SPACER WASHER INDUCTIVE PICKUP 2.80 MM
594
SPACER WASHER INDUCTIVE PICKUP 2.30 MM
594
SPACER WASHER AS REQUIRED 2.0 MM
594
SPACER WASHER INDUCTIVE PICKUP 2.10 MM
594
SPACER WASHER AS REQUIRED 2.4 MM
594
SPACER WASHER , Replaced By: A0002771552, +002A0002771452
594
SPACER WASHER , Replaced By: A0012648652, +001A0002771452
594
SPACER WASHER , Replaced By: A0012648652, +001A0002771552
594
SPACER WASHER , Replaced By: A0002771452, +001A0002771552
594
SPACER WASHER AS REQUIRED 0.6 MM
596
SENDER UNIT INDUCTIVE PICKUP
598
ELECTRIC CABLE INDUCTIVE PICKUP
600
COVER INDUCTIVE PICKUP
600
COVER , Replaced By: A0002710920
602
SEAL RING P.T.O.
604
STUD COVER TO CASE
606
WASHER COMPRESSED AIR LINE TO BRACKET
606
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
608
NUT , Replaced By: N913004006001
608
NUT PUMP TO BRACKET
610
VALVE TRANSMISSION CASE REAR COVER BREATHING
612
SEAL RING
614
SEAL RING LINE CONNECTION
999
HEAT STORE , COMPONENT PARTS NOT AVAILABLE
999
SWITCH
999
SWITCH
999
PART NAME MISSING PARTS KIT
999
PART NAME MISSING PARTS KIT
