Поз.
Артикул
Описание

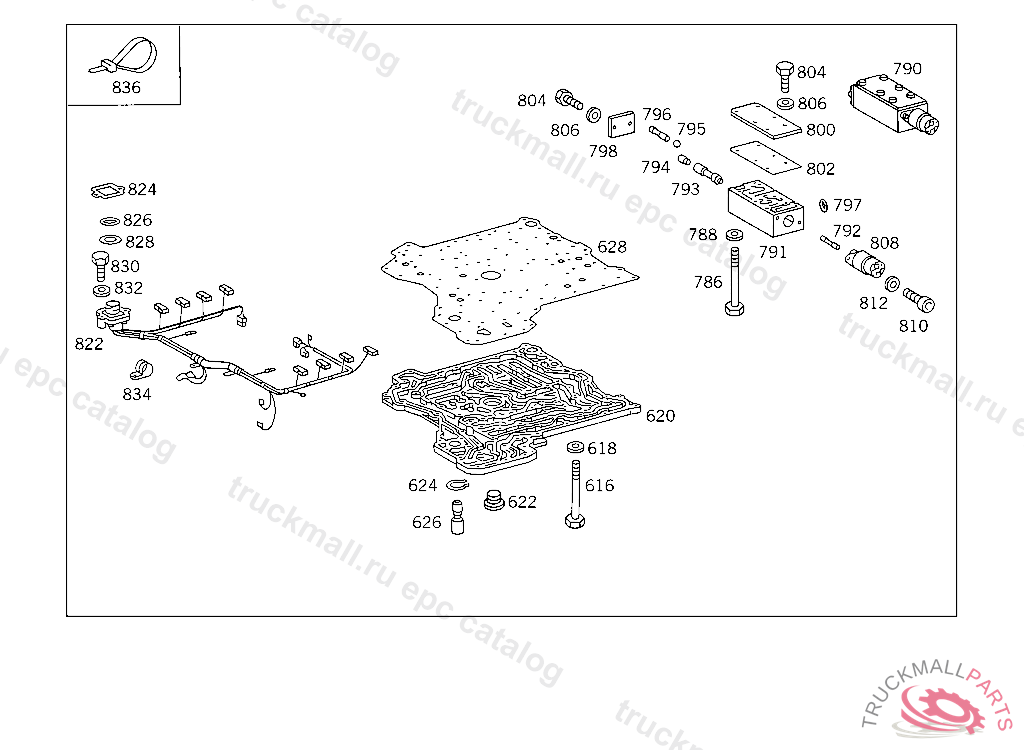

616
SCREW VALVE TO BRACKET
616
SCREW VALVE BODY ASSEMBLY TO TRANSMISSION M 8X35
618
WASHER EXHAUST MUFFLER TO STRAP
618
WASHER , Replaced By: N000125008443
620
PLATE OIL DISTRIBUTION
622
SCREW PLUG OIL DISTRIBUTION
624
SNAP RING
626
VALVE
628
INTERMEDIATE PLATE OIL DISTRIBUTION
786
SCREW APPARATUS PLATE M 6X45
786
SCREW , Replaced By: N304017006027
788
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
788
WASHER COMPRESSED AIR LINE TO BRACKET
790
VALVE (THROTTLE VALVE)
791
VALVE (THROTTLE VALVE)
792
PISTON
793
PISTON
794
PISTON
795
BALL
796
PISTON
797
OIL FILTER
798
PLATE
800
PLATE
802
GASKET PLATE TO VALVE
804
SCREW COVER PLATE TO BRACKET
806
WASHER COMPRESSED AIR LINE TO BRACKET
806
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
808
LIFTING MAGNET , Replaced By: A0002772398
808
LIFTING MAGNET
810
SCREW SOLENOID VALVE TO VALVE
812
WASHER BOOT TO CAB FLOOR
812
WASHER , Replaced By: N000433005304
822
ELECTRIC CABLE
824
GASKET
826
SEAL RING PLUG SOCKET TO TRANSMISSION CASE
828
WASHER PLUG SOCKET TO TRANSMISSION CASE
830
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
830
SCREW , Replaced By: N000933008337
830
SCREW , Replaced By: A0099900101
832
WASHER , Replaced By: N000125008443
832
WASHER EXHAUST MUFFLER TO STRAP
834
CLAMP
836
LOOM TIE LINE MOUNTING 280 MM
999
HEAT STORE , COMPONENT PARTS NOT AVAILABLE
999
SWITCH
999
SWITCH
999
PART NAME MISSING PARTS KIT
999
PART NAME MISSING PARTS KIT
