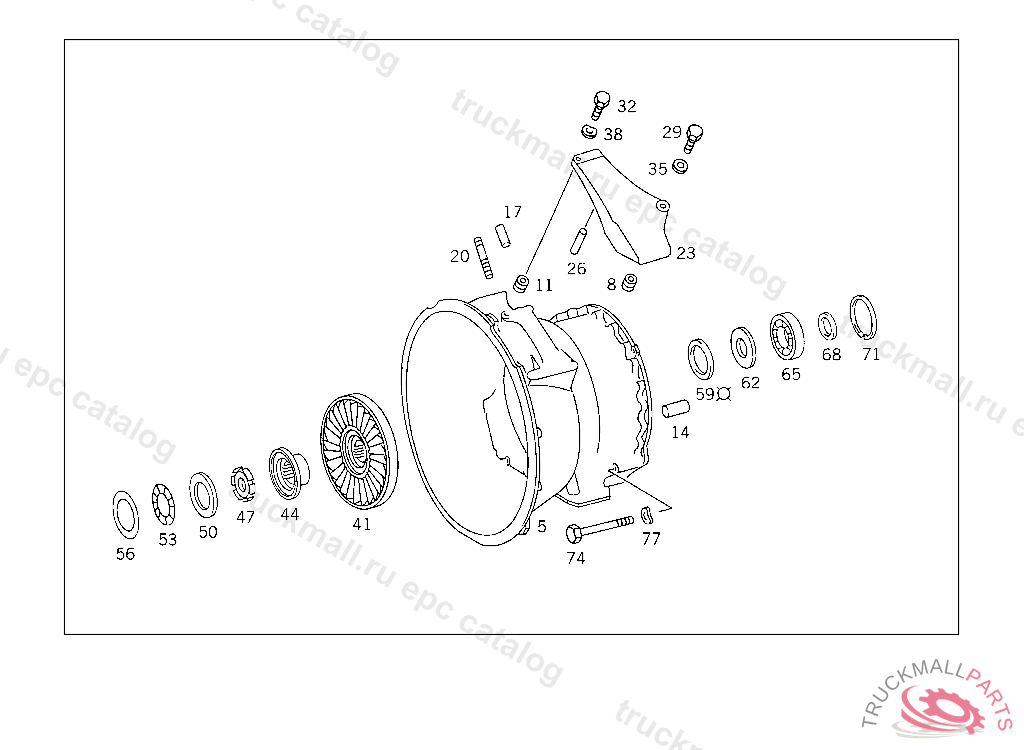

Поз.
Артикул
Описание
5
HOUSING RETARDER
8
THREADED INSERT
11
THREADED INSERT
14
CYLINDRICAL PIN
17
CYLINDRICAL PIN
17
CYLINDRICAL PIN ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
20
STUD. SCREW GROUND CONNECTION
20
STUDM 10X80
23
SUPPORTING ARM CASE,RIGHT
23
SUPPORTING ARM CASE,LEFT
26
CYLINDRICAL PIN SUPPORTING ARM TO HOUSING
29
SCREW , Replaced By: N000960016277
29
SCREW ,5 903513, Replaced By: N308765016011
29
SCREW BEARING BRACKET TO SHOCK ABSORBER BRACKET M 16X110,5 903513
32
SCREW STEERING SUPPORT TO FRAME M 14X50
35
WASHER BRACKET TO FRAME
35
WASHER , Replaced By: N000125017016
38
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
41
ROTOR RETARDER
47
NUT RETARDER
50
WASHER RETARDER
53
ROLLER BEARING RETARDER
56
WASHER AS REQUIRED 0.50 MM
56
WASHER AS REQUIRED 0.30 MM
56
WASHER AS REQUIRED 0.10 MM
59
SEAL RING OIL FEED 97 MM
59
SEAL RING97 MM
62
WASHER RETARDER
65
ROLLER BEARING
65
ROLLER BEARING
68
SPACER WASHER AS REQUIRED 0.30 MM
68
SPACER WASHER AS REQUIRED 0.50 MM
71
LOCK RING
74
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
74
SCREW 3/2-WAY VALVE TO BRACKET
74
SCREWM 8X40
74
SCREW , Replaced By: N304014008007
74
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
74
SCREW , Replaced By: N304014008021
74
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
74
SCREW FRONT AXLE REGULATING SOLENOID VALVE
77
SPRING WASHER , Replaced By: N000137008212
77
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
