Поз.
Артикул
Описание

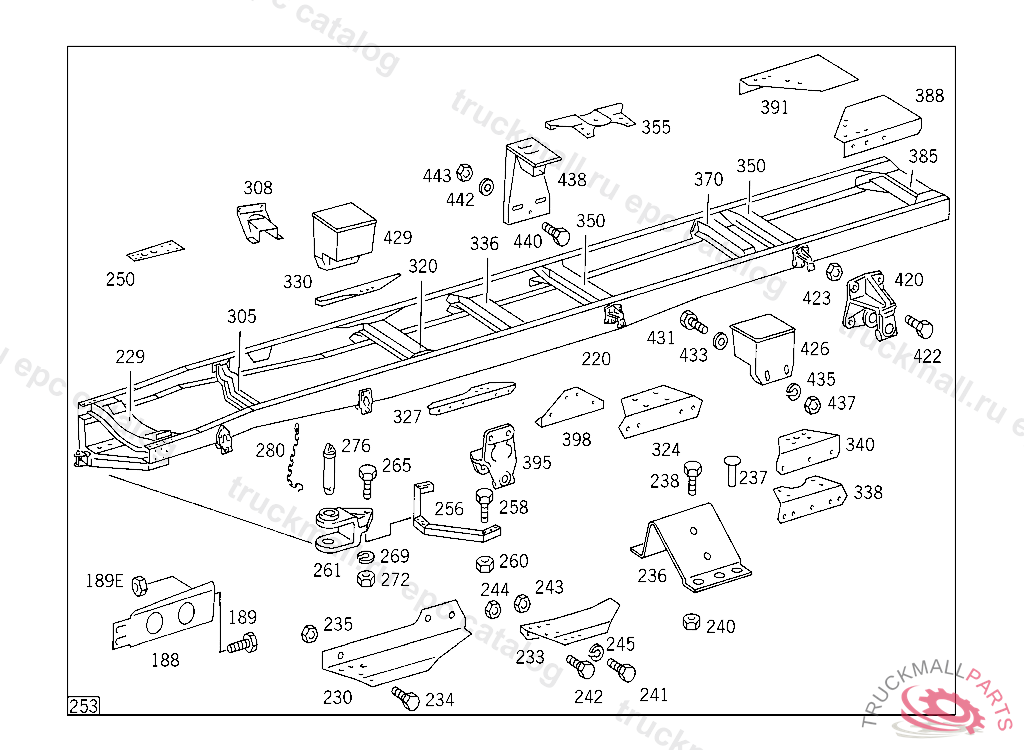

188
BRACKET , ON CAB 331
188
BRACKET , ON CAB 331
189
SCREW , Replaced By: N304017010040
999
FRAME , ON CAB 331
999
FRAME , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3443108901, +001A3443100109, +001A3603100028
999
REINFORCEMENT
999
WASHER GROUND CABLE
999
WASHER SUPPORT TO FRAME,D 127794
999
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
999
RIVET
999
RIVET10X26 MM
999
RIVET10X28 MM
999
RIVET10X30 MM
999
RIVET10X34 MM
999
RIVET12X28 MM
999
RIVET PLATE TO FRAME,KB860814
999
RIVET12X42 MM
999
RIVET12X26 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X36 MM
999
RIVET12X38 MM
999
RIVET12X52 MM
999
RIVET12X48 MM
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET14 X 50 MM
999
NUT BRACKET TO SIDE MEMBER,XB209706
