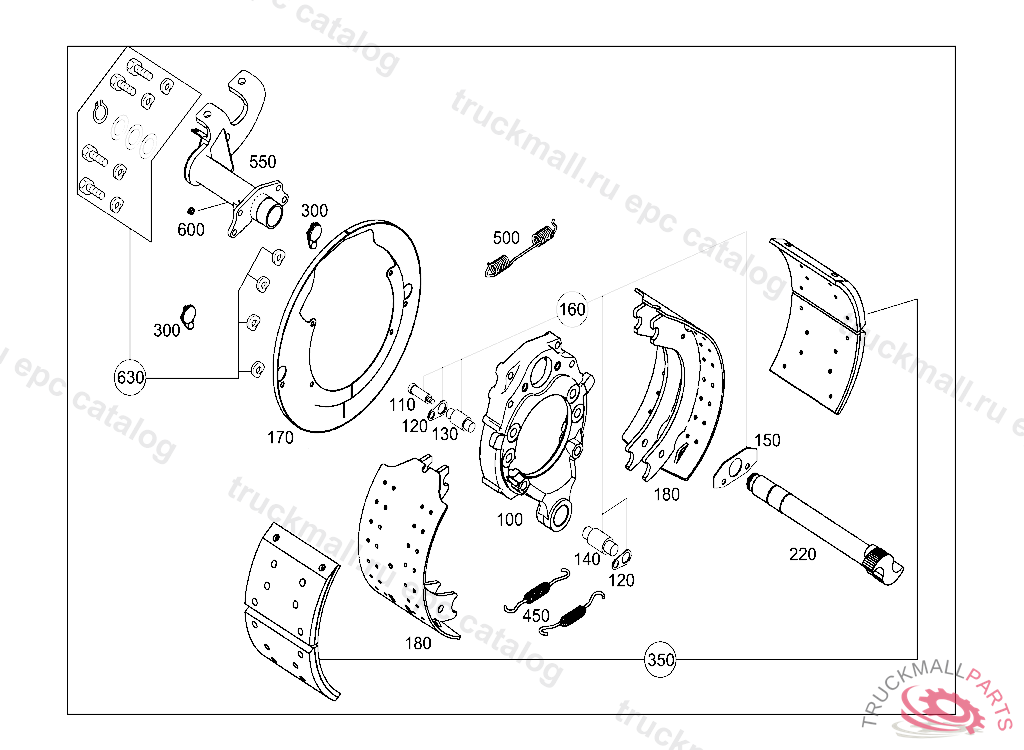

Поз.
Артикул
Описание
100
BEAM (BRAKE ANCHOR),LEFT
100
BEAM (BRAKE ANCHOR),RIGHT
110
PIN , Replaced By: A0004200339
120
LOCKING PLATE , Replaced By: A0004200339
130
PIN BRAKE SHOE SUPPORT TO BRAKE ANCHOR PLATE, Replaced By: A0004200339
140
PIN BRAKE SHOE BEARING, Replaced By: A0004200339
150
BAFFLE PLATE BRAKE SHAFT, Replaced By: A0004200339
160
RS ROLLER BRAKE SHAFT
170
BRAKE ANCHOR PLATE
180
BRAKE SHOE
180
BRAKE SHOE , Replaced By: A0004202919
220
BRAKE CAMSHAFT RIGHT
220
BRAKE CAMSHAFT LEFT
300
CLOSING COVER RUBBER
350
TS TARPAULIN (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING
350
BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING)
350
TS DRUM BRAKE LINING (PARTS KIT),STANDARD (ASBESTOS-FREE BRAKE LINING, Replaced By: A0014214110, +064A0009911333
350
TS DRUM BRAKE LINING (PARTS KIT),REPAIR SIZE I (ASBESTOS-FREE BRAKE LINING), Replaced By: A0014214210, +064A0009911333
450
PRESSURE SPRING
500
PRESSURE SPRING
550
BEARING BRACKET RIGHT
550
BEARING BRACKET LEFT
600
LUBRICATING NIPPLE
630
RS BRAKE CAMSHAFT BEARING
