Поз.
Артикул
Описание

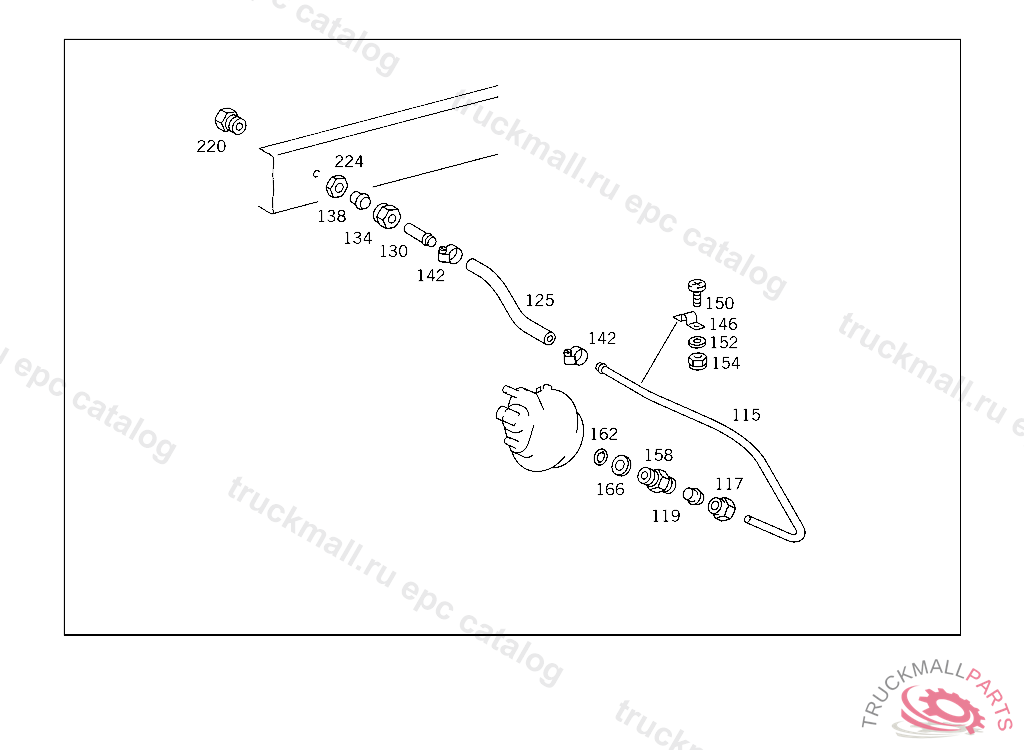

115
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
117
UNION NUT LINE CONNECTION, Replaced By: N000000006239
117
UNION NUT LINE CONNECTION
119
GLAND , Replaced By: A0019901967
119
SEAL CONE LINE CONNECTION
125
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
130
FITTING DIAPHRAGM CYLINDER,CONNECTION:
134
UNION NUT LINE CONNECTION, Replaced By: N000000006239
134
UNION NUT LINE CONNECTION
138
GLAND , Replaced By: A0019901967
138
SEAL CONE LINE CONNECTION
142
CLAMP HOSE TO FITTING AND TO OIL TANK
142
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
146
CLAMP 3/2-WAY SOLENOID VALVE
150
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
152
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
152
WASHER COMPRESSED AIR LINE TO BRACKET
154
NUT , Replaced By: N913004006001
154
NUT PUMP TO BRACKET
158
FITTING DELIVERY LINE TO PUMP
162
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
166
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
220
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
224
NUT BRACKET TO SIDE MEMBER
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
PULL ROD , Replaced By: N900331010671
999
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22",4 821954
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
FITTING ,4 667210
999
YOKE , Replaced By: A0009961401
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
FITTING , Replaced By: A0009907871
999
NUT , Replaced By: N308675016001
999
WASHER BRACKET TO FRAME
999
WASHER , Replaced By: N000125017016
999
LOCK (PROTECTION AGAINST TORSION),5 934168
999
LINE , Replaced By: A6254293501
999
BEARING BRACKET ,5 197194, Replaced By: A3634230033
999
LINE , Replaced By: A6194290801
999
LINE , Replaced By: A3834290801
999
BRACKET , Replaced By: A3525422840
999
STOP LIGHT SWITCH , Replaced By: A0005457009
999
BRACKET AIR RESERVOIRS I AND II,5 586938
999
BRACKET
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,5 7999995 800000 - 5 8127305 900000 - 5 936365
999
REPAIR KIT , Replaced By: A0004301160, +001A0004310273, +001A0004318383, +002A0004312185
999
REPAIR KIT TRISTOP CYLINDER TO 006 420 25 18,WABCO
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART TO 007 420 68 18,007 420 70 18,WABCO
999
SEAL RING , Replaced By: A0009971548
999
VALVE , Replaced By: A0024300381
999
VALVE , Replaced By: A0014306581
999
VALVE , Replaced By: A0034291644
999
SCREW. UNION SCREW LINE CONNECTION
999
SPRING , Replaced By: A0009935205
999
BUSHING , Replaced By: N915062004000
999
REPAIR KIT , Replaced By: A0014300460
999
REPAIR KIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO WABCO NR.0182, Replaced By: A0004306260
999
REPAIR KITTO 001 430 18 81/78 81
999
HANDLETO 001 430 17 81,KNORR
999
ADAPTER FITTING , Replaced By: A0004296934
999
ADAPTER FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "22"
999
ADAPTER FITTING , Replaced By: A0004296634
999
GUIDE , Replaced By: N071752014000
999
BOOTTO 006 420 28 18,15 18,WABCO
