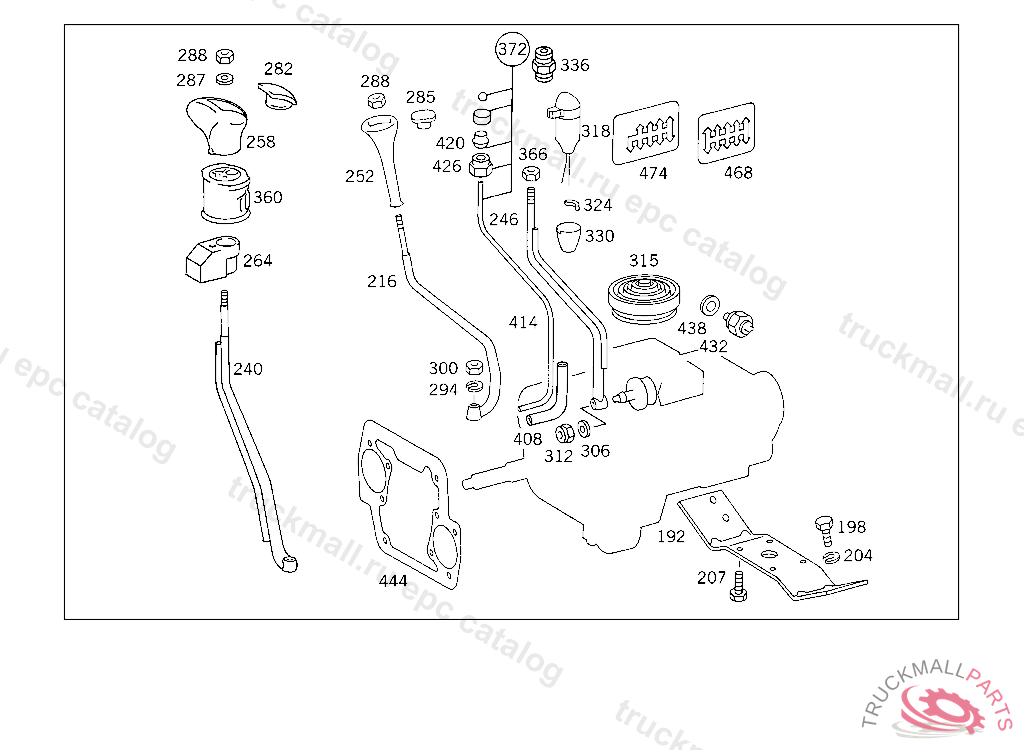

Поз.
Артикул
Описание
192
SUPPORT TRANSMISSION BRACING
192
SUPPORT TRANSMISSION BRACING
198
SCREW END PIECE TO EXHAUST PIPE M 10X25
198
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
204
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
207
SCREW , Replaced By: N308676012012
207
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
216
SHIFT LEVER , Replaced By: A3462608339
216
SHIFT LEVER ,5 091743
216
SHIFT LEVER , Replaced By: A3462608739
216
SHIFT LEVER ,5 091743
216
SHIFT LEVER
216
SHIFT LEVER , Replaced By: A3462608239
216
SHIFT LEVER , Replaced By: A3462608339
216
SHIFT LEVER ,5 091743
216
SHIFT LEVER , Replaced By: A3462608439
216
SHIFT LEVER , Replaced By: A3462608339
240
SHIFT LEVER
240
SHIFT LEVER
240
SHIFT LEVER
240
SHIFT LEVER
246
SHIFT LEVER
246
SHIFT LEVER
246
SHIFT LEVER
246
SHIFT LEVER
252
SHIFT LEVER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6202680042, +001A6202680157
252
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
252
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
258
KNOB (GEARSHIFT LEVER KNOB)
258
HANDLE (SHIFT LEVER HANDLE)
258
KNOB , Replaced By: A6202600040
258
HANDLE , Replaced By: A6202680142, +001A6202680157
258
KNOB (GEARSHIFT LEVER KNOB)
264
COVER SHIFT LEVER KNOB,4 411811
264
COVER SHIFT LEVER KNOB,4 411811
282
COVER SHIFT LEVER,4 422633
282
COVER , Replaced By: A0002682657
282
COVER SHIFT LEVER KNOB,4 411811
285
COVER 6-SPEED,SHIFT LEVER KNOB
285
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
285
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
287
WASHER RADIATOR TO RUBBER MOUNTING
287
WASHER , Replaced By: N000125010532
288
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
288
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
288
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
288
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
294
LOCK WASHER FITTING TO BRACKET
294
LOCK WASHER FITTING TO BRACKET
300
HEXAGON NUT. NUT SPRING BOLT
300
NUT , Replaced By: N910113012005
300
NUT STRAP TO SUPPORT,5 149419
300
NUT STRAP TO SUPPORT,5 149419
306
WASHER
306
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
306
WASHER , Replaced By: N007349013005
312
HEXAGON NUT. NUT SPRING BOLT
312
NUT , Replaced By: N910113012005
315
BOOT , Replaced By: A3452677096
318
VALVE GEARSHIFT LEVER LOWER PART WABCO
318
VALVE SHIFT LEVER HERION
318
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 528951, Replaced By: A0012606357
318
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
318
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012602457
318
VALVE SHIFT LEVER
318
VALVE SHIFT LEVER
318
VALVE SHIFT LEVER
318
VALVE SHIFT LEVER
318
VALVE SHIFT LEVER EATON
318
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 672435, Replaced By: A0002608757
318
VALVE , Replaced By: A0002608757
318
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 672435, Replaced By: A0002608957
324
SEAL RING
330
PROTECTIVE CAPEATON
330
PROTECTIVE CAPWABCO
330
PROTECTIVE CAPEATON
336
FITTING LINE MOUNTING
336
FITTING , Replaced By: A0029908568
360
VALVE ADDITIONAL GEARBOX,4 411811
360
VALVE ADDITIONAL GEARBOX,4 411811
360
VALVE , Replaced By: A0012601957
366
NUT VALVE TO SHIFT LEVER
372
HOSE (PARTS KIT)
372
HOSE (PARTS KIT)
372
HOSE (PARTS KIT)
372
HOSE , Replaced By: A3019971282
408
INSULATING HOSE (SHRINK HOSE), ORDER BY THE METER
408
HOSE , Replaced By: N040621022200
414
HOSE FUEL LINE, ORDER BY THE METER
414
PLASTIC TUBE2X4MM, ORDER BY THE METER
414
HOSE SHIFT LEVER VALVE,SPLITTER CYLINDER, CONTROL VALVE 1120 MM,5 091743
414
HOSE , Replaced By: A3469971382
414
HOSE , Replaced By: A3469971382
420
SEAL CONE LINE MOUNTING
426
FITTING LINE MOUNTING
426
NUT , Replaced By: A0029908568
432
SWITCH GEAR CLUSTER INDICATION
432
SWITCH GEAR CLUSTER INDICATION
432
SWITCH GEAR CLUSTER INDICATION
432
SWITCH , Replaced By: A0035451614
432
SWITCH , Replaced By: A0025458114
438
SEAL RING SWITCH TO CASE COVER
438
SEAL RING SWITCH TO CASE COVER
438
SEAL RING SWITCH TO CASE COVER
438
SEAL RING , Replaced By: N007603018100
444
GASKET TRANSMISSION TO BELL HOUSING
468
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
468
GUMMED LABEL NINE-SPEED,ASHTRAY,5 032516
474
GUMMED LABEL NINE-SPEED,ASHTRAY,4 947402
474
GUMMED LABEL NINE-SPEED,ASHTRAY,4 947402
999
RELEASE BEARING
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
PRESSURE PLATE
999
VALVE P.T.O.
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
SPRINGTO 000 434 21 01
999
BANJO UNION COMPRESSED AIR LINE TO 3/2-WAY VALVE
999
ELBOW FITTING SUPPLY LINE FOR TRANSMISSION
999
FITTING NEUTRAL POSITION 3/2-WAY VALVE, CONNECTION: "2"
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
TS DOUBLE FITTING (PARTS KIT),LINE RUPTURE 4MM
999
SPACER TUBE CLUTCH BRAKE
999
WASHER AS REQUIRED 0.80 MM
999
WASHER AS REQUIRED 0.90 MM
999
WASHER AS REQUIRED 1.00 MM
999
WASHER AS REQUIRED 1.10 MM
999
WASHER AS REQUIRED 1.20 MM
999
WASHER AS REQUIRED 1.3 MM
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SEAL RING BOTTOM
999
SHIM TRANSMISSION SUSPENSION,5 144187
999
SHIM TRANSMISSION SUSPENSION
999
SUPPORT TRANSMISSION SUSPENSION,5 144187
999
SPACER WASHER RELEASE SHAFT,BOTTOM
999
SHIM CLUTCH BRAKE CONTROL,5 091743
999
BRACKET
999
BRACKET CABLE TO TRANSMISSION
999
BRACKET
999
BRACKET COMPRESSED AIR LINE
999
SPRING , Replaced By: A3619930015
999
HOUSING , Replaced By: A3462502005, +001A6202500155
999
VALVE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST 4 672435, Replaced By: A0002609057
999
VALVE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST 4 672435, Replaced By: A0002609157
999
SHIFT LEVER , Replaced By: A3462608339
999
SHIM , Replaced By: A3462660284
999
SUPPORT TRANSMISSION SUSPENSION,5 144186
999
SUPPORT TRANSMISSION SUSPENSION,5 144186
999
BRACKET 3/2-WAY SOLENOID VALVE
999
BRACKET 3/2-WAY VALVE,5 091743
999
BRACKET 3/2-WAY VALVE
999
WASHER RELEASE SHAFT,TOP,5 334244
999
BRACKET , Replaced By: A3525422840
999
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
999
PLUG BELL HOUSING
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IM REPAIR KIT, Replaced By: A3895860025
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
BRACKET LINE MOUNTING
999
BRACKET , Replaced By: A6454310740
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
RELEASE LEVER CLUTCH ACTUATION
999
CAP RELEASE BEARING LUBRICATION
999
GREASE NIPPLE RELEASE COLLAR LUBRICATION
999
SCREW SHOCK ABSORBER TO RAIL M 18X70
999
WASHER , Replaced By: N007349010007
999
WASHER STRUT TO CROSS MEMBER
999
SEAL RING BOTTOM
999
NUT TWO-WAY VALVE TO BRACKET
