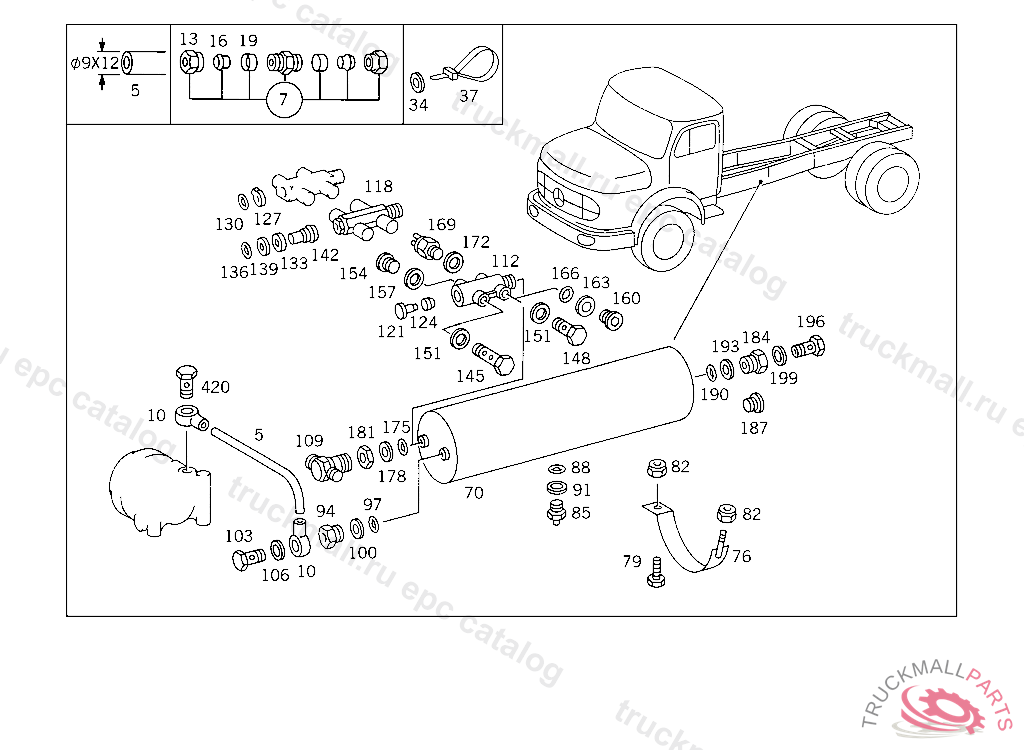

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
7
FITTING (PARTS KIT),LINE RUPTURE
7
FITTING , Replaced By: A0029906171
10
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
13
UNION NUT LINE CONNECTION
13
UNION NUT LINE CONNECTION, Replaced By: N000000006239
16
SEAL CONE LINE CONNECTION
16
GLAND , Replaced By: A0019901967
19
SLEEVE LINE CONNECTION
34
WASHER BRACKET TO LEFT SIDE MEMBER
34
WASHER , Replaced By: N009021008213
37
LOOM TIE LINE MOUNTING
37
LOOM TIE LINE MOUNTING 280 MM
70
RESERVOIR20 L
70
RESERVOIR , Replaced By: A0034321101
76
STRAP AIR RESERVOIR TO SUPPORT
76
STRAP AIR RESERVOIR TO SUPPORT
79
SCREW END PIECE TO EXHAUST PIPE M 10X25
82
NUT STRAP TO BRACKET
82
NUT , Replaced By: N910113010000
85
VALVE DRAIN, Replaced By: A0004322107
85
VALVE. DRAIN VALVE DRAIN
85
VALVE. DRAIN VALVE DRAIN
85
VALVE DRAIN, Replaced By: A0004322107
85
VALVE DRAIN, Replaced By: A0004322407
88
O-RING CHECK VALVE TO AIR RESERVOIR
91
THRUST RING CHECK VALVE TO AIR RESERVOIR
91
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
94
SCREW. UNION SCREW LINE CONNECTION
94
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
97
O-RING CHECK VALVE TO AIR RESERVOIR
100
THRUST RING CHECK VALVE TO AIR RESERVOIR
100
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
103
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
106
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
109
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
109
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
109
VALVE (CHECK VALVE), 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
112
VALVE (CHECK VALVE) VOSS
112
VALVE (CHECK VALVE) VOSS
118
VALVE (CHECK VALVE) SCHAEFER
118
VALVE (CHECK VALVE) SCHAEFER
121
VALVE TAPPETTO 002 429 96 44,VOSS
121
VALVE TAPPETTO 002 429 96 44,VOSS
124
SEAL RINGTO 002 429 96 44,VOSS
124
SEAL RINGTO 002 429 96 44,VOSS
127
VALVETO 003 429 04 44,WABCO
127
VALVETO 003 429 04 44,WABCO
130
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
130
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
133
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
133
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
136
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
136
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
139
THRUST WASHERTO 003 429 12 44,SCHAEFER
139
THRUST WASHERTO 003 429 12 44,SCHAEFER
142
SEAL CONETO 003 429 12 44,SCHAEFER
142
SEAL CONETO 003 429 12 44,SCHAEFER
145
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
145
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
148
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
151
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
154
SCREW PLUGTO 000 553 03 05,000 553 18 05,
154
SCREW PLUGTO 000 553 03 05,000 553 18 05,
154
SCREW PLUG , Replaced By: N000908014009
157
SEAL RING FUEL LINE TO FEED PUMP
160
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
163
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
166
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
169
SWITCH SUPPLY PRESSURE
169
SWITCH SUPPLY PRESSURE
172
SEAL RING LINE CONNECTION
172
SEAL RING LINE CONNECTION
175
O-RING CHECK VALVE TO AIR RESERVOIR
178
THRUST RING CHECK VALVE TO AIR RESERVOIR
178
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
181
NUT CHECK VALVE TO AIR RESERVOIR
184
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
187
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
187
SCREW PLUG , Replaced By: N000908022011
190
O-RING CHECK VALVE TO AIR RESERVOIR
193
THRUST RING CHECK VALVE TO AIR RESERVOIR
193
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
196
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
196
SCREW. BANJO BOLT AIR RESERVOIR,CONNECTION: "33",4 872664
196
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
199
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
420
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
VALVE (CHECK VALVE) WABCO
