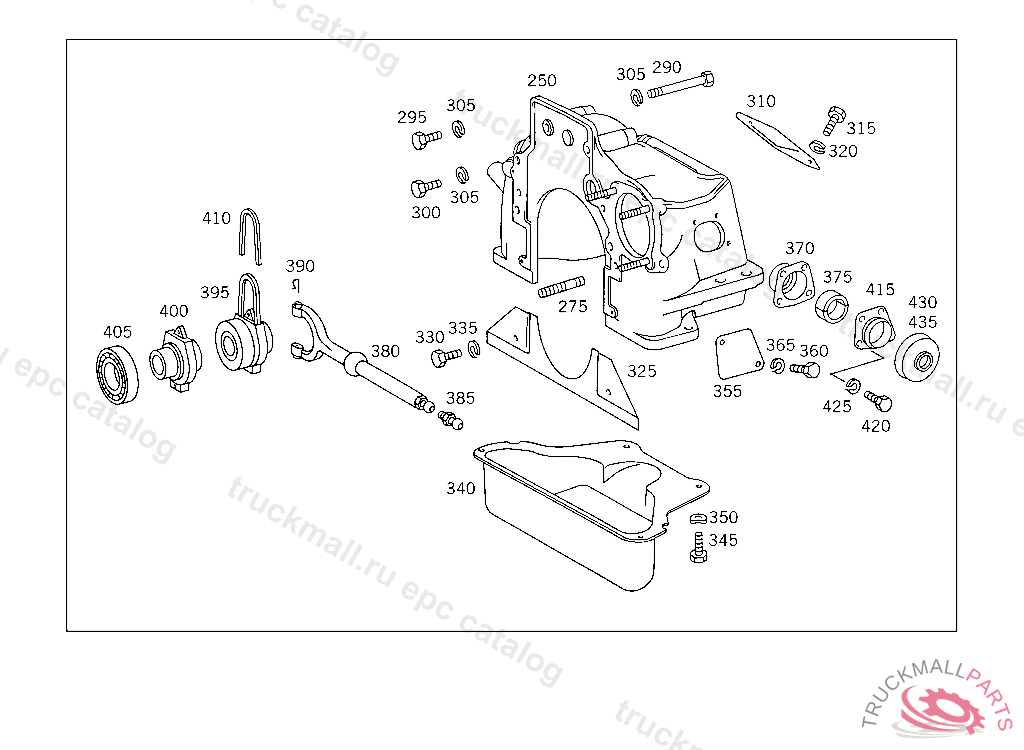

Поз.
Артикул
Описание
250
BELL HOUSING
250
BELL HOUSING ,A 059933
250
BELL HOUSING
275
STUD , Replaced By: A0009904805
275
STUD STARTING MOTOR MOUNTING
290
SCREW
295
SCREW BELL HOUSING TO CYLINDER CRANKCASE
300
SCREW , Replaced By: A0029906804
305
LOCK WASHER BRACKET TO SUPPORTING ARM
325
PROTECTIVE PLATE BELL HOUSING,5 332727 SEAL DURING ASSEMBLY
330
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
335
SPRING WASHER LICENSE PLATE TO BRACKET
340
BELL HOUSING , Replaced By: A3522510202
340
BELL HOUSING , Replaced By: A3522503105
345
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
350
SPRING WASHER LICENSE PLATE TO BRACKET
355
END COVER
360
SCREW RIGHT COVERING
365
LOCK WASHER
370
BRACKET INSIDE,4 696330
375
BEARING ,763226, Replaced By: A3802540035, +001A3852540051, +001A3802540159
380
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 084364
385
BALL PIVOT RELEASE YOKE
390
SPRING LOCK RELEASE LEVER TO RELEASE BEARING, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
395
RELEASE BEARING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 473926, Replaced By: A3402500215
405
RELEASE BEARING , UP TO IDENT NO. 4 473926,FROM IDENT NO. SEE MICROFICHE STANDARD
405
RELEASE BEARING
405
RELEASE BEARING
410
STRIP ,KB846165
415
BRACKET
415
BRACKET OUTSIDE,4 696330
420
SCREW COMPRESSED AIR ELBOW
425
LOCK WASHER
430
BOOT RELEASE LEVER, UP TO CHASSIS 4 691315, FROM CHASSIS 4 691316 SEE STANDARD VERSION
435
BOOT RELEASE YOKE
999
RELEASE LEVER IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 327 293 01 11,302 991 00 15,KB846165 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
RELEASE BEARING , Replaced By: A3522500515
