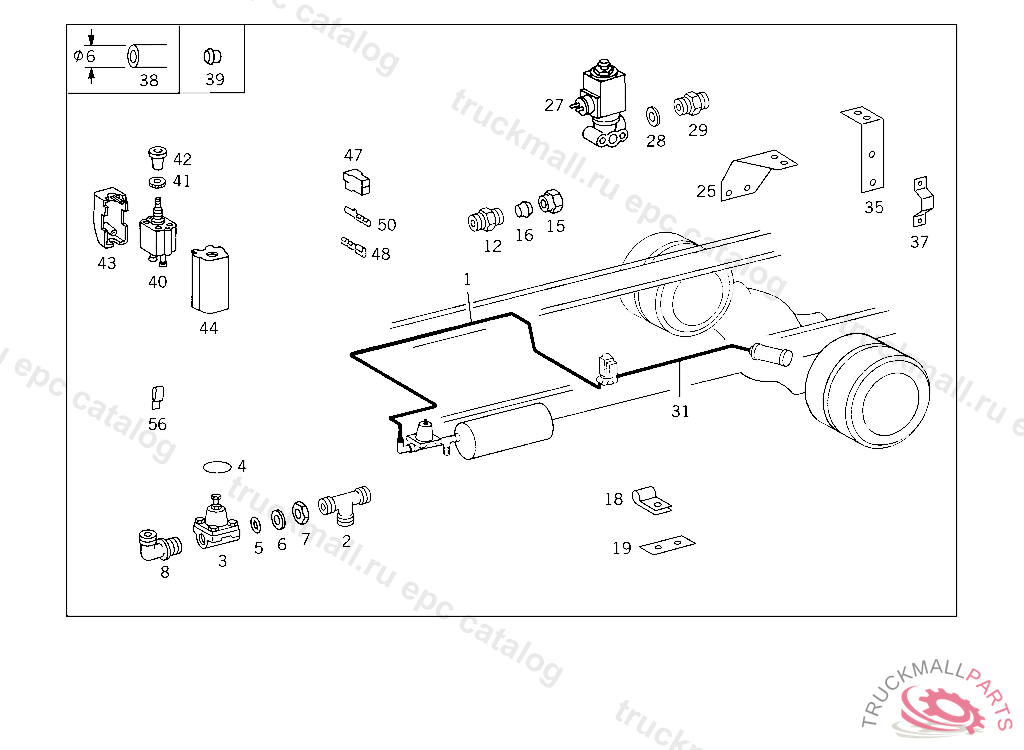

Поз.
Артикул
Описание
1
LINE , Replaced By: A0004296201
1
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
1
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
2
T-FITTING COMPRESSED AIR VALVE CONNECTION
3
VALVE , Replaced By: A0014295244
4
DIAPHRAGMTO 344 429 73 44
5
O-RING CHECK VALVE TO AIR RESERVOIR
5
O-RING CHECK VALVE TO AIR RESERVOIR
6
THRUST RING CHECK VALVE TO AIR RESERVOIR
6
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
7
NUT CHECK VALVE TO AIR RESERVOIR
8
ELBOW FITTING AT OVERFLOW VALVE
8
ELBOW FITTING AT OVERFLOW VALVE
12
TS DOUBLE FITTING SOLENOID VALVE
15
UNION NUT
16
SEAL CONE
16
GLAND , Replaced By: A0019901667
18
CLAMP SENSOR CABLE TO BRACKET
18
CLAMP , Replaced By: N916016006201
19
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
19
BRACKET , Replaced By: A3124761236
19
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
19
BRACKET FUEL LINES
25
BRACKET VALVE
25
BRACKET VALVE
27
VALVE (SOLENOID VALVE) HERION
28
SEAL RING LINE CONNECTION
29
FITTING LINE CONNECTION
29
FITTING LINE CONNECTION, Replaced By: N000000006446
31
HOSE (QUICK BREATHER VALVE)
31
HOSE
35
BRACKET LINE MOUNTING
37
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
37
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3609950210
37
CLAMP LINE MOUNTING
38
PLASTIC PIPE RISING PIPE 4X6 MM
38
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
39
SLEEVE LEAK LINE
39
BUSHING , Replaced By: N915062004000
40
SWITCH TWO-SPEED REAR AXLE CONTROL,4 188089
41
NUT POTENTIOMETER TO INSTRUMENT PANEL
41
NUT ,928519
41
NUT SWITCH TO APPARATUS PLATE
42
BUTTON TWO-SPEED REAR AXLE CONTROL,4 188089
42
BUTTON SWITCH,928519
43
BOOT ,928519
44
BOOT SWITCH,928519
999
VALVE
999
REPAIR KITTO 003 429 02 44
999
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
999
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
999
NUT , Replaced By: A0029906251
999
SWITCH , Replaced By: A3445457111
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KITTO 001 997 34 36,002 997 58 36,
999
VALVE (OVERFLOW VALVE)
999
VALVE (OVERFLOW VALVE)
999
VALVE (OVERFLOW VALVE)
999
REPAIR KIT , Replaced By: A0012608357
999
REPAIR KITTO 001 429 52 44
999
REPAIR KITBOSCH
999
VALVE
999
VALVE (OVERFLOW VALVE)
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
