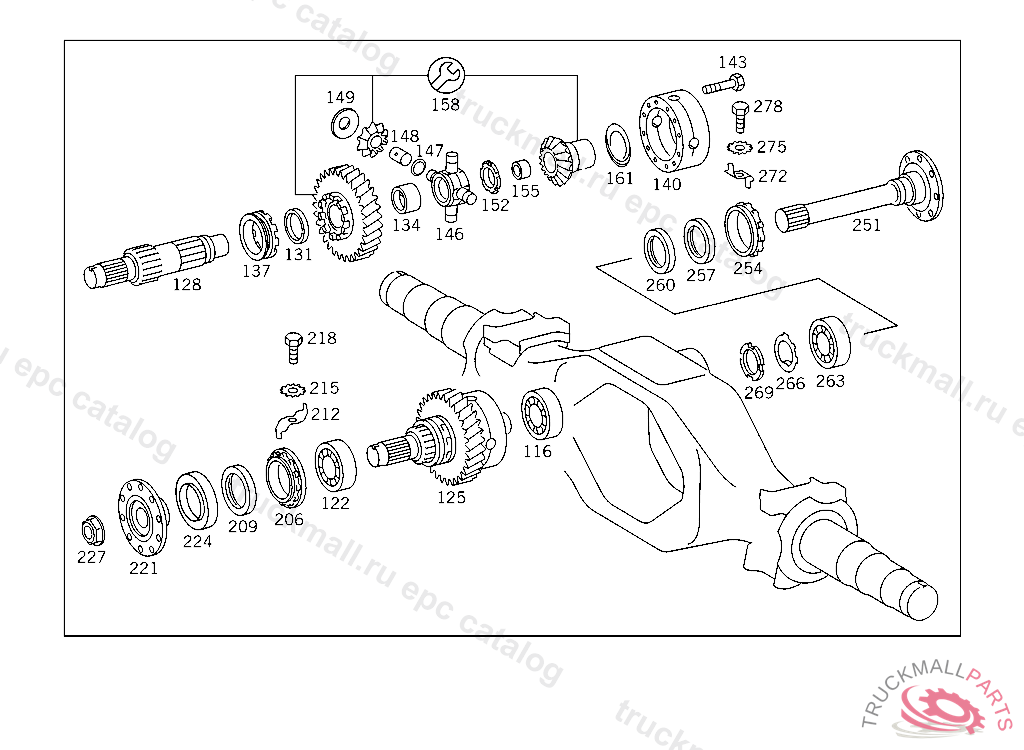

Поз.
Артикул
Описание
116
BALL BEARING DRIVE SHAFT,REAR
116
GROOVED BALL BEARING DRIVE SHAFT,FRONT
122
GROOVED BALL BEARING FRONT
125
DIFFERENTIAL GEAR. REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO V 138069, Replaced By: A3433501023
128
SHAFT ,V 138069, Replaced By: A3463530735
131
THRUST WASHER THROUGH DRIVE 3.85 MM
131
THRUST WASHER THROUGH DRIVE,AS REQUIRED 4.20 MM
131
THRUST WASHER THROUGH DRIVE 4.0 MM
131
THRUST WASHER THROUGH DRIVE,AS REQUIRED 3.65 MM
134
BUSHING DRIVE SHAFT,REAR
137
FOLLOWER ,V 440534, Replaced By: A3463531136, +001A3463501324
140
DIFFERENTIAL CASE , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE N111640, Replaced By: A3463502327
143
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT M 12X75
146
DIFFERENTIAL SPIDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 138069, Replaced By: A6593530020, +004A6593530014, +001A3463530326, +004A6593530050, +004A6593530051, +004A6593530151
147
SPACER RING
147
SPACER RING
148
BUSHING
149
SPHERICAL WASHER
152
NUT DIFFERENTIAL SPIDER, V 138070
155
BUSHING THROUGH DRIVE,DIFFERENTIAL GEAR
155
BUSHING THROUGH DRIVE,DIFFERENTIAL GEAR
158
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 138069, Replaced By: A3433500923
161
THRUST WASHER THROUGH DRIVE,AS REQUIRED 2.35 MM
161
THRUST WASHER2.45 MM
161
THRUST WASHER2.80 MM
161
THRUST WASHER2.60 MM
206
SCREW COLLAR THROUGH DRIVE SHAFT SETTING
209
SEAL RING PINION HOUSING
209
RADIAL SHAFT SEALING RING REAR AXLE
212
LOCK DIFFERENTIAL GEAR ADJUSTMENT
215
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
218
SCREW , Replaced By: N304017008016
218
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
221
FLANGE (COUPLING FLANGE),DIA., 180 MM
224
PROTECTIVE CAP SEAL
227
NUT FLANGE TO REAR AXLE SHAFT
227
NUT , Replaced By: A9463510072
251
SHAFT THROUGH DRIVE
254
SCREW COLLAR THROUGH DRIVE SHAFT SETTING
257
SEAL RING ON FLANGE END
257
SEAL RING ON FLANGE END
260
SEAL RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSFER CASE 001298, Replaced By: A0109970547
260
SEAL RING , Replaced By: A0179973147
263
BALL BEARING HOUSING,INSIDE
263
GROOVED BALL BEARING , Replaced By: A0059815925
266
LOCK PLATE THROUGH DRIVE SHAFT SETTING
269
GROOVED NUT
272
LOCK DIFFERENTIAL GEAR ADJUSTMENT
275
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
278
SCREW , Replaced By: N304017008016
278
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT DIFFERENTIAL SPIDER,V 138069
