Поз.
Артикул
Описание
5

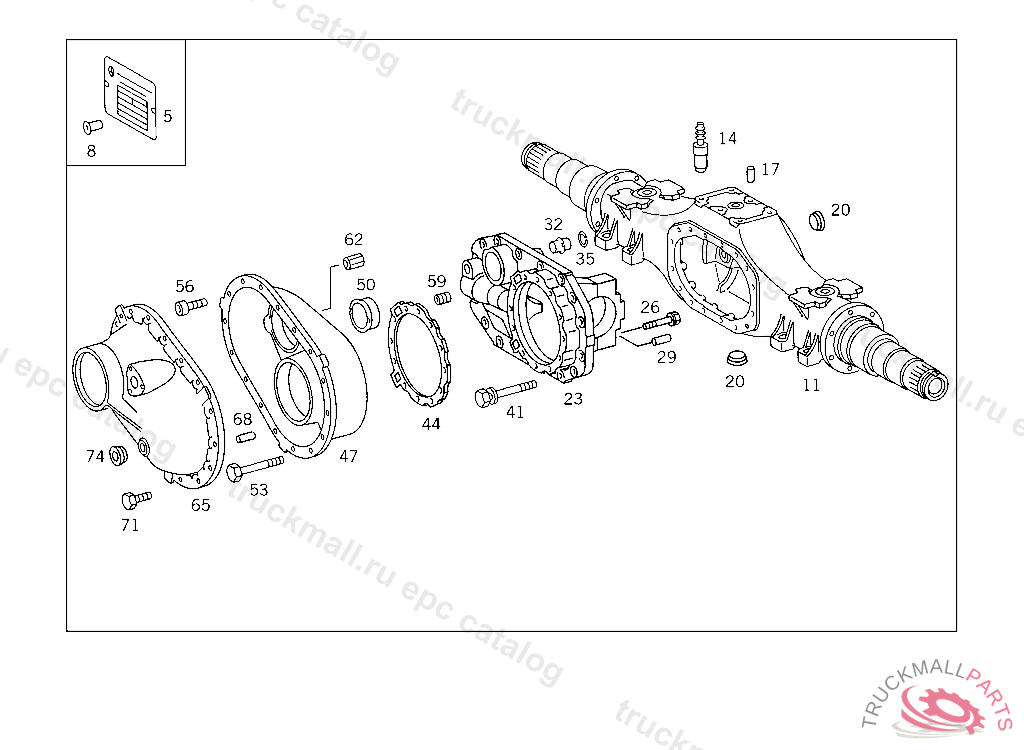

UNIT IDENTIFICATION PLATE , MAN AXLE
8
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
11
AXLE CASING
11
AXLE CASING
14
FITTING AXLE BREATHING
14
FITTING BLEEDING
17
CYLINDRICAL PIN POWER CYLINDER TO SUPPORT
20
SCREW PLUG , Replaced By: A0009972632
20
SCREW PLUG BELL HOUSING
23
AXLE HOUSING
23
AXLE HOUSING DIFFERENTIAL GEAR
26
SCREW BEARING COVER TO AXLE HOUSING
29
CYLINDRICAL PIN
29
CYLINDRICAL PIN , Replaced By: N000007008101
32
PIN AXLE HOUSING
35
SNAP RING
41
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
41
SCREW BRACKET TO BRACKET
41
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
41
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.15 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.20 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.10 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.50 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.50 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.35 MM
44
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.00 MM
47
HOUSING (PINION HOUSING)
50
CONNECTOR THROUGH DRIVE
50
SEAL HOLDER THROUGH DRIVE
53
SCREW , Replaced By: N308676014005
53
SCREW FRONT SPRING FRONT AND REAR BRACKETS TO SIDE MEMBER M 14X1,5X60
62
PIN PINION HOUSING TO AXLE HOUSING
65
COVER HOUSING,FRONT
71
SCREW RADIATOR PROTECTIVE GRILLE TO ANGLE
74
SCREW PLUG BELL HOUSING
