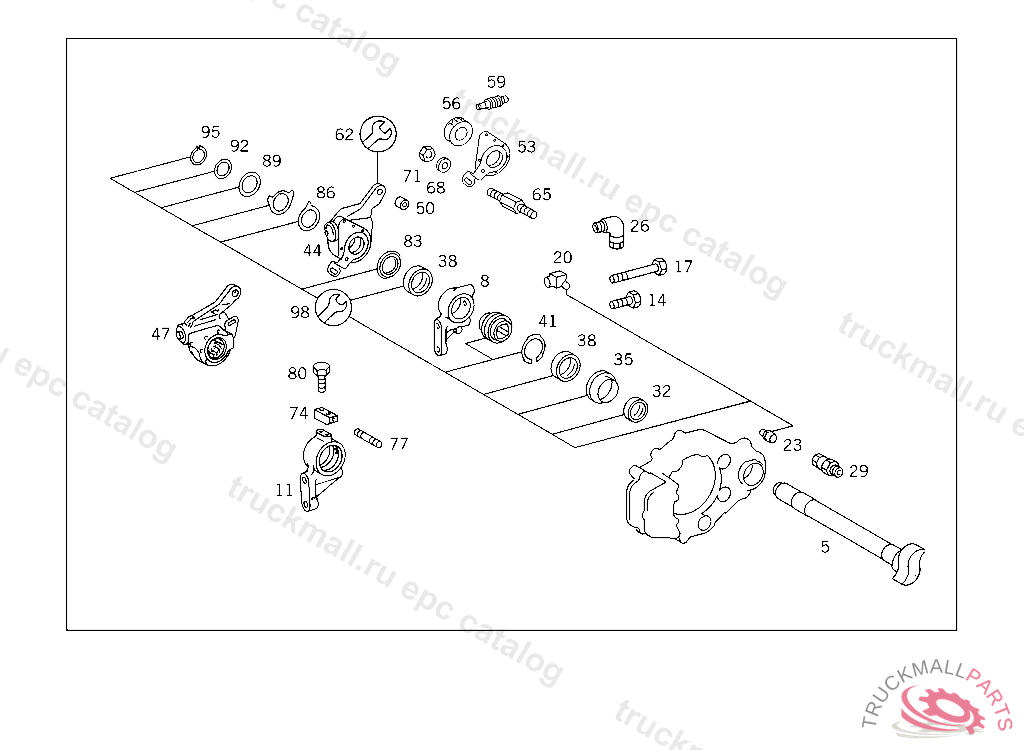

Поз.
Артикул
Описание
5
BRAKE CAMSHAFT LEFT
5
BRAKE CAMSHAFT RIGHT
8
BEARING BRACKET LEFT
8
BEARING BRACKET RIGHT
11
BEARING BRACKET RIGHT BRAKE CAMSHAFT
11
BEARING BRACKET LEFT BRAKE CAMSHAFT
14
SCREW BEARING BRACKET TO REAR AXLE M 16X45
17
SCREW BEARING BODY TO REAR AXLE M16X1,5X110
20
GREASE NIPPLE FOR SPRING
23
GREASE NIPPLE
26
ELBOW LINE CONNECTION M 8X1
26
ELBOW LINE CONNECTION M 8X1
29
CONNECTOR LINE CONNECTION M 8X1
29
CONNECTOR BEARING BRACKET
32
SEAL RING , Replaced By: A0129973747
32
SEAL RING , Replaced By: A0129973647
32
SEAL RING OUTSIDE BEARING BRACKET
32
SEAL RING OUTSIDE BEARING BRACKET
32
SEAL RING OUTSIDE BEARING BRACKET
35
SEAL HOLDER , Replaced By: A9454230058
35
SEAL HOLDER BEARING BRACKET
38
SEAL RING , Replaced By: A0149972247
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING INSIDE BEARING BRACKET
38
SEAL RING , Replaced By: A0129974147
41
SNAP RING BEARING BRACKET TO AXLE
47
ADJUSTER , Replaced By: A9454200238
47
ADJUSTER , Replaced By: A9454200338
47
ADJUSTER AUTOMATIC,LEFT
47
ADJUSTER AUTOMATIC,RIGHT
50
BUSHING
53
CONTROL UNIT
56
WORM GEAR"SAB"
59
WORM SCREW"SAB"
62
REPAIR KIT SLACK ADJUSTER "SAB"
74
BRACKET ADJUSTMENT
77
STUD BRACKET TO BEARING BRACKET
80
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
83
SPACER WASHER , Replaced By: A3464230752
83
SPACER WASHER BEARING BRACKET TO AXLE
86
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
89
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
92
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
92
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 4,00MM
95
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
98
REPAIR KIT BRAKE CAMSHAFT BEARING
999
GREASE NIPPLE , Replaced By: N071412008102
