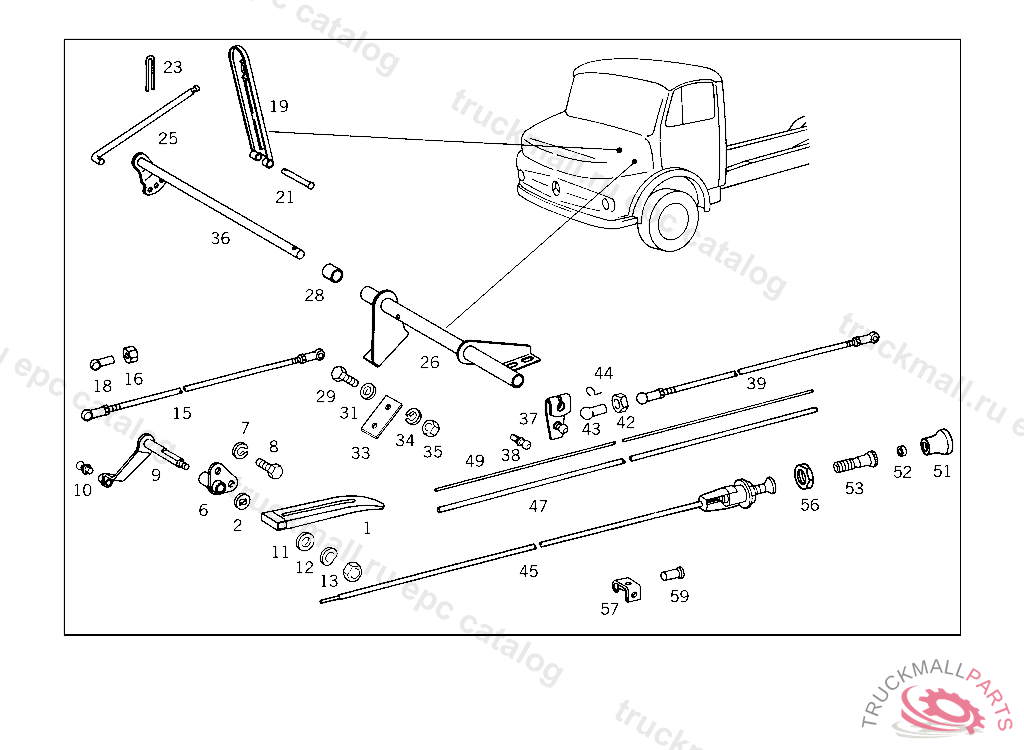

Поз.
Артикул
Описание
1
PEDAL PLATE , Replaced By: A3523000802
1
PLATE ACCELERATOR PEDAL
2
GUARD PLATE ACCELERATOR PEDAL BEARING
6
BEARING TUBE ACCELERATOR PEDAL CONTROL,GB718835
6
BEARING TUBE ACCELERATOR PEDAL CONTROL
7
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
8
SCREW CLAMP TO BRACKET AND TO PIPE
9
LEVER , INAPPLICABLE TO SUPERCHARGING SYSTEMGB718835
10
BALL PIVOT LEVER
10
BALL PIVOT , Replaced By: A3129910120
10
BALL PIVOT LEVER
11
WASHER BRACKET TO CROSS MEMBER
12
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
13
NUT
15
ROD , Replaced By: A3604301892
15
ROD FROM CONTROL SHAFT TO INTERMEDIATE SHAFT
16
NUT BALL PIVOT TO LEVER
18
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
18
BALL SOCKET , Replaced By: A0009912422
18
BALL SOCKET PULL ROD TO LEVER
19
PLATE
21
PIN PEDAL TO CAB FLOOR
23
SAFETY PIN END PIECE TO CONTROL LEVER
25
ROD CONTROL
26
BEARING BRACKET
28
BUSHING
29
SCREW , Replaced By: N304017008040
29
SCREW BRACKET TO SIDE MEMBER
29
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
29
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
31
WASHER , Replaced By: N000125008443
31
WASHER EXHAUST MUFFLER TO STRAP
33
SHIM CONTROL SHAFT BEARING TO FIRE WALL
33
BRACKET OIL LINE TO CRANKCASE
34
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
NUT
36
SHAFT
37
LEVER
38
BALL PIVOT , Replaced By: A3129910120
38
BALL PIVOT LEVER
39
ROD , Replaced By: A3604302092
39
ROD , Replaced By: A3604301992
42
NUT BALL PIVOT TO LEVER
43
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
43
BALL SOCKET , Replaced By: A0009912422
43
BALL SOCKET PULL ROD TO LEVER
44
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
45
KNOB , Replaced By: A3523001407
45
KNOB , Replaced By: A3523001407
45
KNOB WITH SPINDLE AND WIRE CABLE
47
TUBE , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
49
WIRE CABLE , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
49
WIRE CABLE , Replaced By: A3523000230
51
KNOB , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
51
KNOB , Replaced By: A3523020201
51
KNOB , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020201, +001A3523020308
52
WASHER , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
53
GUIDE , FROM IDENT NO. 739256 ALSO INSTALLED ON:500001-599999 UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
53
GUIDE , Replaced By: A3523020308
53
GUIDE , UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999, Replaced By: A3523020308, +001A3523020201
56
NUT , UP TO IDENT NO. 4 155516 ALSO INSTALLED ON 500001-521292
57
CLAMP
59
GROMMET WIRE CABLE TO MOUNTING CLAMP, FROM IDENT NO. 4 155517 ALSO INSTALLED ON:500001-599999
59
GROMMET , Replaced By: A3453027091
999
COVERING ACCELERATOR PEDAL BEARING
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN CYLINDER TO BRACKET
999
SCREW CONNECTOR
999
SCREW , Replaced By: N304017006034
999
SCREW COVER PLATE TO COVER PLATE M 6 X 10
999
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
999
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
