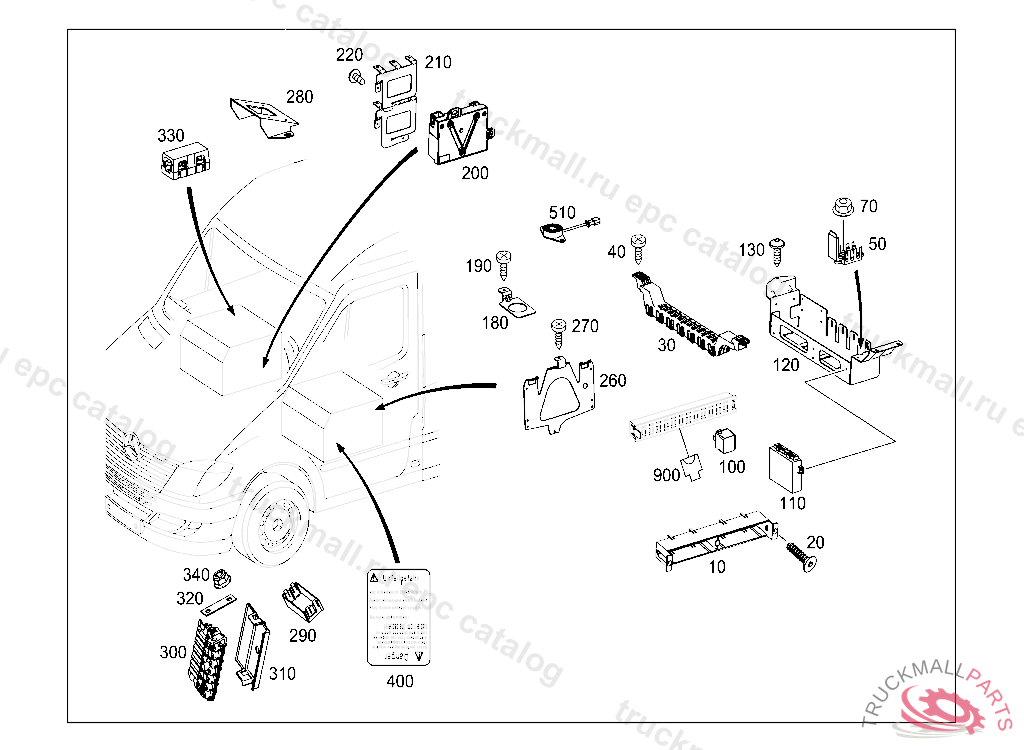

Поз.
Артикул
Описание
10
ADAPTER FRAME RELAY TO SEAT BOX
20
SCREW PLATE AT HANDLE, J 47509420000815
30
BRACKET RELAY, N 46739620101029
40
TAPPING SCREW CONTROL UNIT TO FIRE WALL
50
CABLE CONNECTOR
70
NUT , Replaced By: N913023006001
70
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
100
RELAY HEADLAMP WIPER/WASHER
100
RELAY MAKE PULSE
100
RELAY HEADLAMP WIPER/WASHER, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
110
CONTROL UNIT PARAMETERIZABLE SPECIAL MODULE PSM, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
120
BRACKETKDM
130
TAPPING SCREW CONTROL UNIT TO FIRE WALL
180
BRACKET BUZZER
190
TAPPING SCREW CONTROL UNIT TO FIRE WALL
200
CONTROL UNIT FUEL PUMP TDS,N118, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
200
CONTROL UNIT FUEL PUMP TDS, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A2129000306
210
BRACKET FUEL SYSTEM CONTROL UNIT
220
TAPPING SCREW CONTROL UNIT TO FIRE WALL
260
BRACKET CONTROL UNIT, S 80723320130531
270
TAPPING SCREW CONTROL UNIT TO FIRE WALL
280
BRACKET PREFUSE BOX
290
ADAPTER FRAME FUSE BOX
300
FUSE BOX PREFUSE BOX
310
COVER PREFUSE BOX
320
CONTACT RAIL PREFUSE BOX
320
CONTACT RAIL PREFUSE BOX
320
BUSBAR PREFUSE BOX
330
FUSE BOX
340
NUT BRACKET TO BODY SHELL M6
400
STICKER RISK OF ACCIDENT
510
BUZZER STEP
900
RECEPTACLE HOUSING TERMINAL 15 4-PIN MQS
