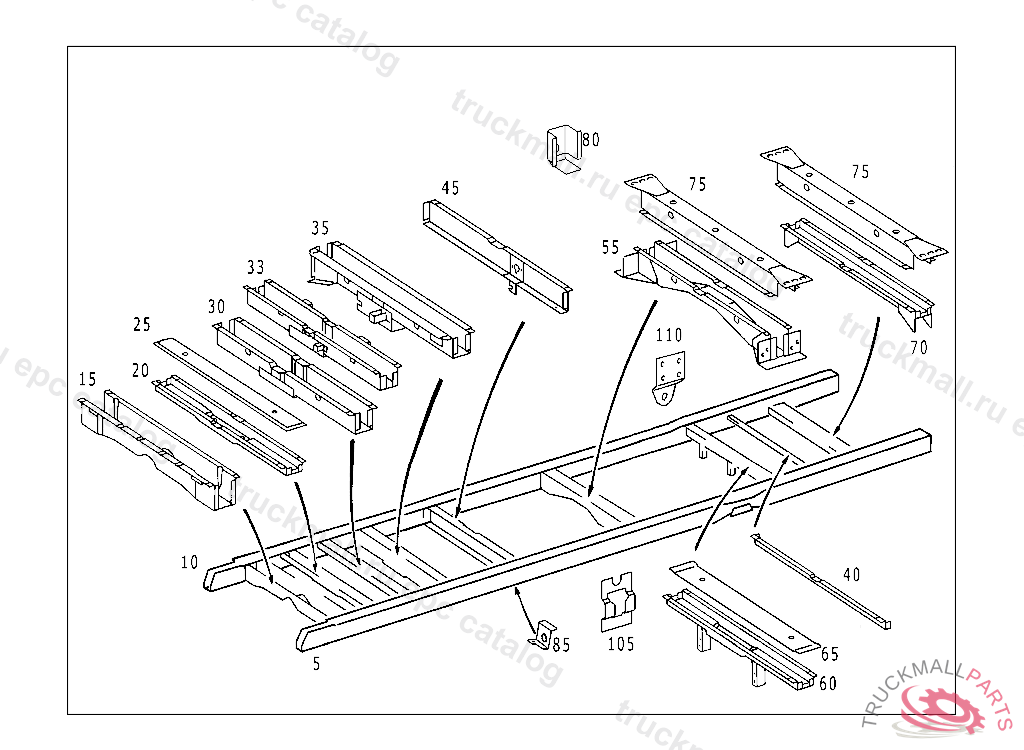

208CDI, 211CDI, 213CDI, 216CDI FROM IDENT-NR. R337627, 5337627, A901274 - 902.622 - 31 FRAME
Поз.
Артикул
Описание
5
SIDE MEMBER LEFT, WHEELBASE: 3550
10
SIDE MEMBER RIGHT, WHEELBASE: 3550
15
CROSS MEMBER CO-DRIVER'S SEAT,DOUBLE OCCUPANCY "3"
15
CROSS MEMBER"3"
30
CROSS MEMBERNO.4.1
35
CROSS MEMBER"4.7"
55
CROSS MEMBER"6.7"
60
CROSS MEMBER"3A.1"
65
COVER PLATE
70
CROSS MEMBER"7.4", TO BE ADAPTED DURING ASSEMBLY
75
COVER PLATE
80
BEARING BRACKET SPARE WHEEL CARRIER
85
BRACKET BRAKE HOSE TO FRAME
105
BRACKET
110
SHACKLE
