Поз.
Артикул
Описание

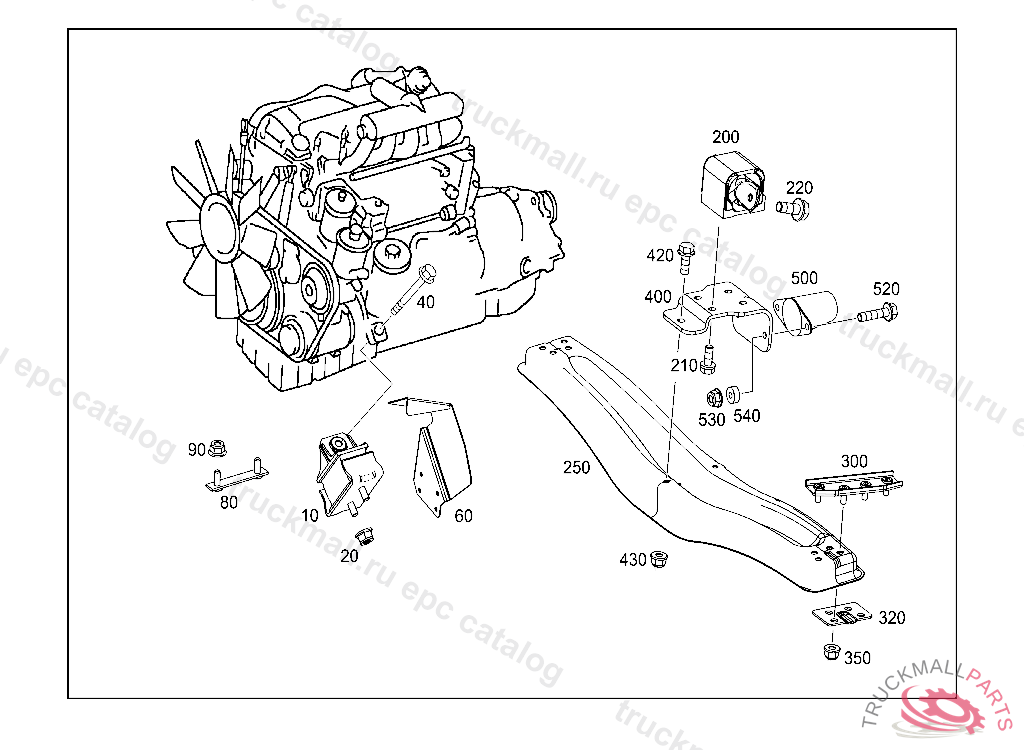

10
RUBBER MOUNTING FRONT LEFT AND RIGHT
20
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
40
HEXAGON HEAD BOLT AIR DEHYDRATOR TO BRACKET M12X55,V 207570
40
HEXAGON HEAD BOLT MOUNTING, TORSION BAR, ON SIDE MEMBER M12X1.5X65
60
PROTECTIVE PLATE RIGHT FRONT RUBBER MOUNTING
80
PLATE
90
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
200
RUBBER MOUNT ENGINE REAR MOUNTING
210
SCREW PIPE CLAMP
220
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
220
WASHER PUMP TO CONSOLE
250
ENGINE SUPPORT REAR
300
MOUNTING PLATE LEFT
300
MOUNTING PLATE RIGHT
320
BASE PLATE IN CASE OF BAD ROADS VEHICLES CODE Z11 UND MAIL VEHICLES CODE Z22
350
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
400
420
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
430
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
500
ENGINE VIBRATION ABSORBER ENGINE REAR SUPPORT
520
SCREW CLAMP ON BRACKET
530
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
540
WASHER GUIDE PULLEY ON TIMING CASE
