Поз.
Артикул
Описание

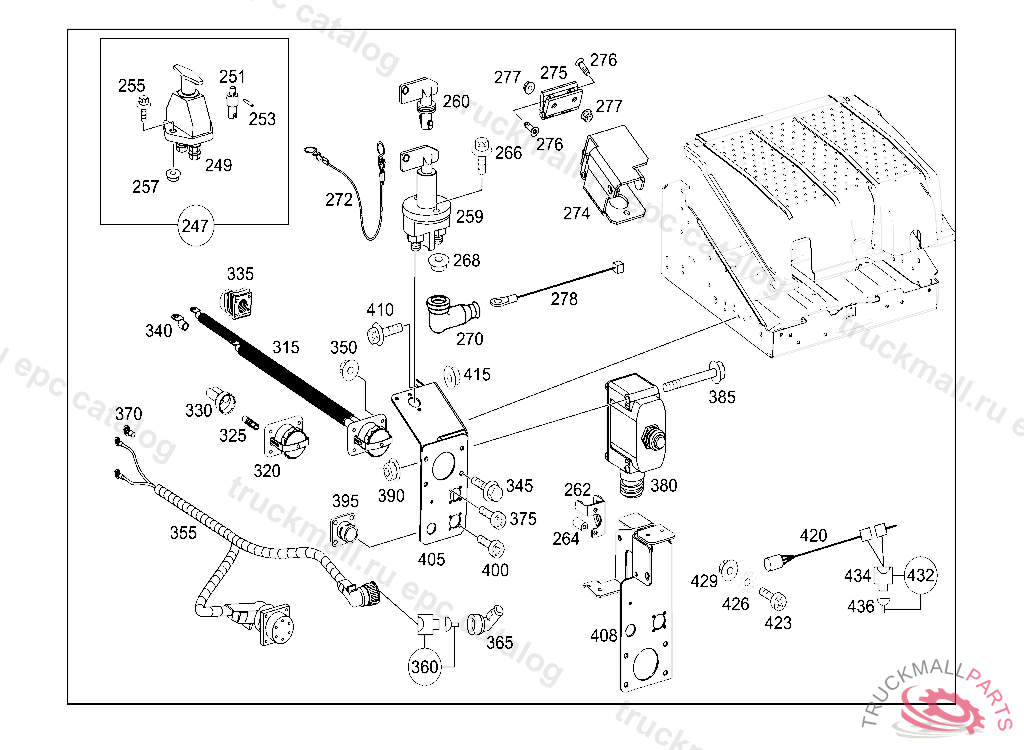

247
SWITCH BLOCK BATTERY CUT-OFF,227023
249
SWITCH. BATT.SWITCH (BATTERY MASTER SWITCH)
251
SPACER TUBE BATTERY MASTER SWITCH
253
ROLL PIN. CLAMPING SLEEVE
255
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
257
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
259
SWITCH BATTERY CUT-OFF
259
SWITCH BATTERY CUT-OFF
260
KEY BATTERY CUT-OFF " KISSLING "
262
BRACKET BATTERY CUT-OFF,233317234003
264
SPACER TUBE MUFFLER TO BRACKET
266
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
266
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
266
HEXALOBULAR BOLT BATTERY CUT-OUT TO BRACKET M6X50,233317234003
266
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
268
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
268
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
270
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
270
BOOT. PROTECTIVE CAP CONNECTION TO BATTERY CUT-OFF
272
CABLE KEY MOUNTING
272
CABLE KEY MOUNTING
274
COVER BATTERY CUT-OFF,227024234003
275
HINGE ,227024
276
HEXAL. SOCKET CSK. BOLT BRACKET TO ROCKER PANEL,LEFT M6X20
277
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
278
CABLE HARNESS TACHOGRAPH ADAPTER LINE
315
ELECTRICAL WIRING HARNESS JUMP-START PLUG SOCKET
315
CABLE HARNESS JUMP-START PLUG SOCKET
320
PLUG SOCKET BIPOLAR
320
PLUG SOCKET , Replaced By: N072593035100
325
BUSHING
330
GROMMET PLUG SOCKET
335
GASKET JUMP-START PLUG SOCKET
340
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
340
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
345
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
345
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
350
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
355
ELECTRIC CABLE CHARGE RETENTION SOCKET 24V
360
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
365
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
370
CABLE SHOE. CABLE LUGA 8-2.5
375
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
380
FUSE FOR CHARGE MAINTENANCE IN MAIN WIRING HARNESS
385
SCREW CURRENT LIMITER M 4X45,5 579769
390
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
395
PIN BUSHING HOUSING. PLUG SOCKET (BLIND PLUG SOCKET)
400
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
405
BRACKET PLUG SOCKETS,234003
405
BRACKET PLUG SOCKETS,234003
405
BRACKET PLUG SOCKETS, Replaced By: A9495454440
408
BRACKET PLUG SOCKETS,234004
410
SCREW BRACKET TO SIDE MEMBER M8X20
415
HEXAGON NUT BRACKET TO FRAME
420
CABLE HARNESS HAND LAMP PLUG SOCKET
423
HEXALOBULAR BOLT PLUG SOCKET TO BRACKET M4X10
426
TOOTHED WASHER SOCKET MOUNTING A3.2, NOT USED
429
HEXAGON NUT SOCKET MOUNTING M4
432
PARTS KIT HAND LAMP PLUG SOCKET X42.1, 2PIN
434
CAP
434
PLUG HOUSING. PLUG
434
PIN BUSHING HOUSING
436
GASKET WINDOW SILL
436
GASKET BLUE 5.75 MM
436
PIN BUSHING1.0-1.5 MM2
436
PLUG1.5-2.5MM2
436
FLAT PLUG0.35-1.0MM2
