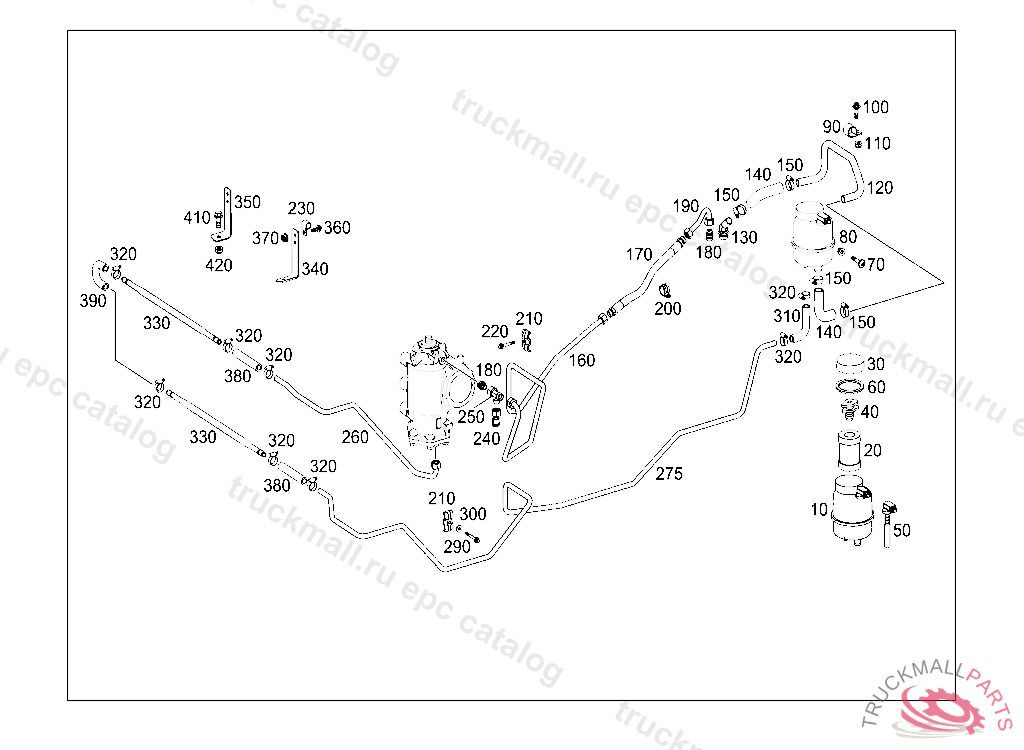

Поз.
Артикул
Описание
10
TANK OIL
20
FILTER
30
FILLER CAP
40
BRACKET
50
OIL DIPSTICK
60
SEAL RING
70
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
80
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
90
CLAMP LINE MOUNTING
100
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
110
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
120
130
ELBOW FITTING
140
150
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
160
170
180
FITTING BETWEEN THE LINES
190
200
CLAMP HOSE TO FLANGE AND TO VALVE
210
CLAMP ELECTRIC CABLE MOUNTING
220
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
230
PIPE CLAMP LINE MOUNTING 15-20MM
240
TEST CONNECTIONM16X2
250
EQUAL TEE CONNECTING PARTS M22X1.5
260
275
290
HEXALOBULAR BOLT. SCREW CLAMPING PIECE TO BRACKET M6 X 50
300
WASHER FAN SHROUD TO RADIATOR
310
320
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
330
340
350
360
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
370
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
380
390
410
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
420
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
