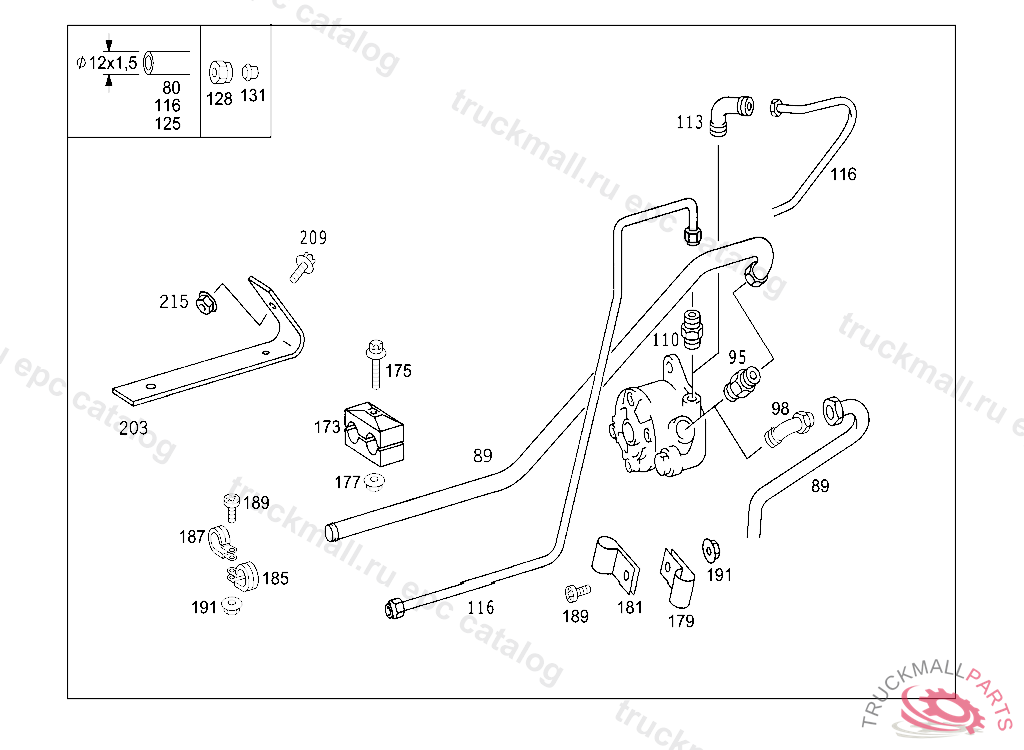

Поз.
Артикул
Описание
80
TUBE FROM HIGH PRESSURE HOSE TO STEERING
80
LINE FROM OIL TANK TO HOSE,V 207570
80
LINE , Replaced By: A0005516156, +002A0019901967, +002N915017012100
89
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP,V 207570
98
ELBOW FITTING SUCTION LINE TO PUMP
110
FITTING CONTROL DEVICE CONNECTION: P2
113
ELBOW FITTING DELIVERY LINE TO PUMP
116
LINE ,V 207570, Replaced By: A0005516156, +002A0019901967, +002N915017012100
116
TUBE FROM HIGH PRESSURE HOSE TO STEERING
125
TUBE FROM HIGH PRESSURE HOSE TO STEERING
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
125
LINE ,V 207570, Replaced By: A0005516156, +002A0019901967, +002N915017012100
128
UNION NUT LINE CONNECTION, Replaced By: N000000006239
128
UNION NUT LINE CONNECTION
131
SEAL CONE LINE CONNECTION
173
CLAMP LINE MOUNTING 22/22 MM
173
CLAMP LINE MOUNTING
175
SCREW 3/2-WAY VALVE TO BRACKET
175
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
177
NUT HORN TO BRACKET M8
179
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
181
CLAMP , Replaced By: A6739950001
185
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
187
CLAMP HOSE TO BRACKET 25/20,5 206397
189
SCREW CLAMP MOUNTING M 6X16
189
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
189
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
189
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
191
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
203
BRACKET LINE MOUNTING, NOT CARRIED AS A SPARE PART
209
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
215
NUT HORN TO BRACKET M8
