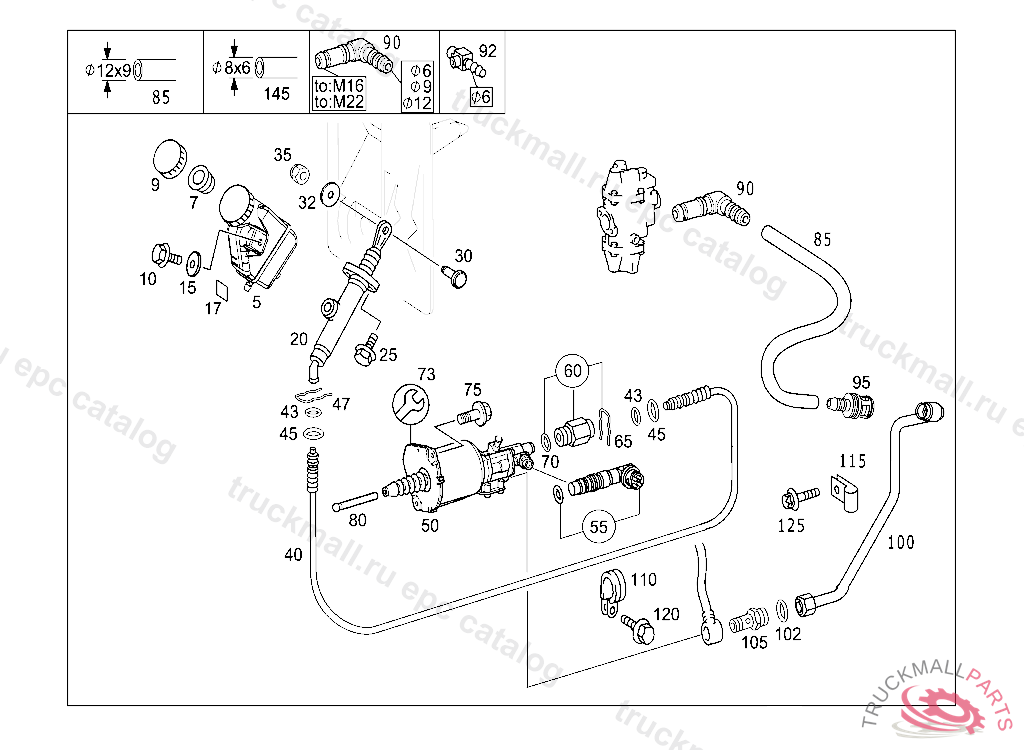

Поз.
Артикул
Описание
5
5
7
7
9
COVER
9
9
COVER , Replaced By: A2024300014
10
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
15
WASHER COMPRESSED AIR LINE TO BRACKET
17
BAND LOWER PART, ORDER BY THE METER
20
MASTER CYLINDER CLUTCH
20
25
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
30
PIN PUSH ROD
32
WASHER COMPRESSED AIR LINE TO BRACKET
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
40
40
40
43
SEAL RING LINE CONNECTION 6.07X1.78MM
45
SEAL RING LINE CONNECTION 10.82X1.68MM
50
CLUTCH BOOSTERWABCO
55
SENDER UNIT TRAVEL SENSOR
60
FITTING PARTS KIT M16X1.5
65
LOCK CLUTCH HOSE
70
SEAL RINGTO 000 553 03 05,000 553 18 05,
73
REPAIR KIT CLUTCH BOOSTER WABCO
75
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
80
PIN RELEASE LEVER
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 232
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM, VOSS 232
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
90
90
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
92
CONNECTOR DISTRIBUTOR TO CAB
95
CONNECTOR HOSE TO TRANSMISSION
100
PIPE COMPRESSED AIR LINE TO CLUTCH BOOSTER
102
O-RING CLUTCH BOOSTER13,0X2,0
105
FITTING DELIVERY LINE TO CLUTCH BOOSTER
110
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
115
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
120
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
125
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
145
PLASTIC PIPE AERATION, ORDER BY THE METER
