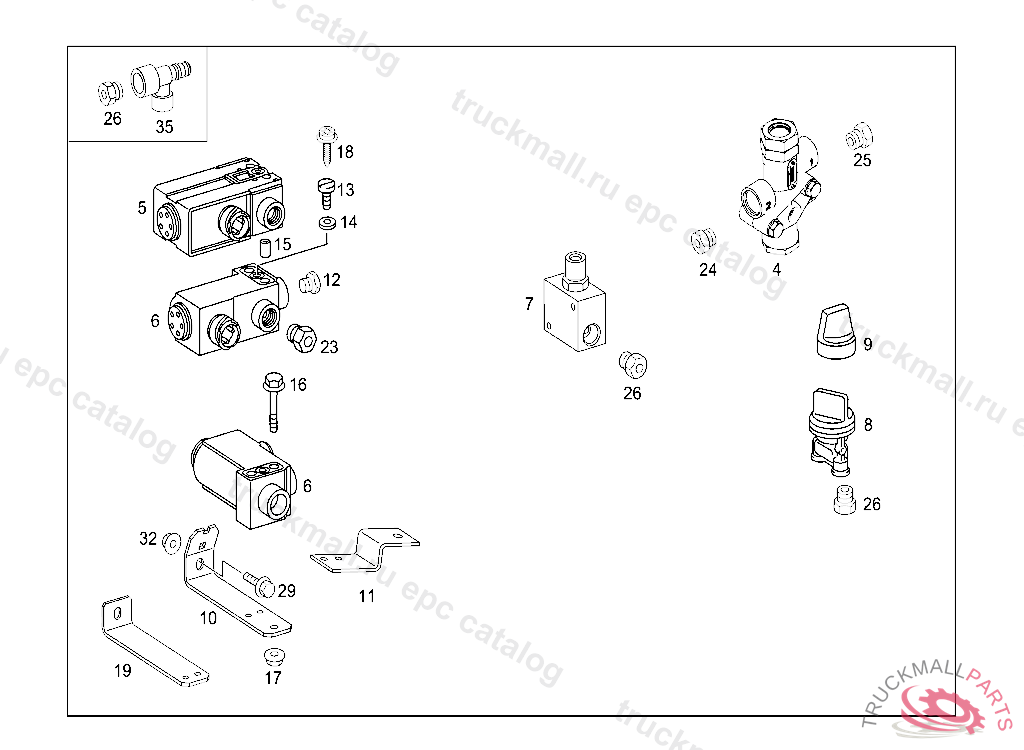

Поз.
Артикул
Описание
5
VALVE. PIN "TOP-BRAKE", Replaced By: A0059971236
5
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF WABCO
5
VALVE (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF EKS, REPAIR IMPOSSIBLE
5
3-2-WAY PNEUMATIC VALVE EXHAUST BRAKE WABCO,L 477192B 477192
6
VALVE REAR AXLE DIFFERENTIAL LOCK
6
VALVE. PIN "TOP-BRAKE", Replaced By: A0059971236
6
VALVE REAR AXLE DIFFERENTIAL LOCK EKS,L 500573B 500573
8
9
HANDLE 3/2-WAY VALVE TO BRACKET
10
12
SCREW PLUG SOLENOID VALVE M16
13
SCREW TO LOCK SOLENOID VALVE, Replaced By: N000084006132
13
SCREW TO PLUG THE FREE CONNECTIONS
14
SEAL RING TO LOCK SOLENOID VALVE 7X12MM
15
SEAL RING VALVE TO VALVE
16
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
16
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
16
SCREW. HEXAGON HEAD BOLT BRACKET TO STABILIZERM8X1,5X110 MM
16
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
16
SCREW VALVE TO BRACKET M 8X60
16
HEXALOBULAR BOLTM8X60
17
NUT HORN TO BRACKET M8
17
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
18
HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
19
23
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
23
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16, VOSS 232
26
UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
26
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 10, VOSS 232, Replaced By: A0009975034
29
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
32
NUT BRACKET TO SIDE MEMBER M12X1.5
