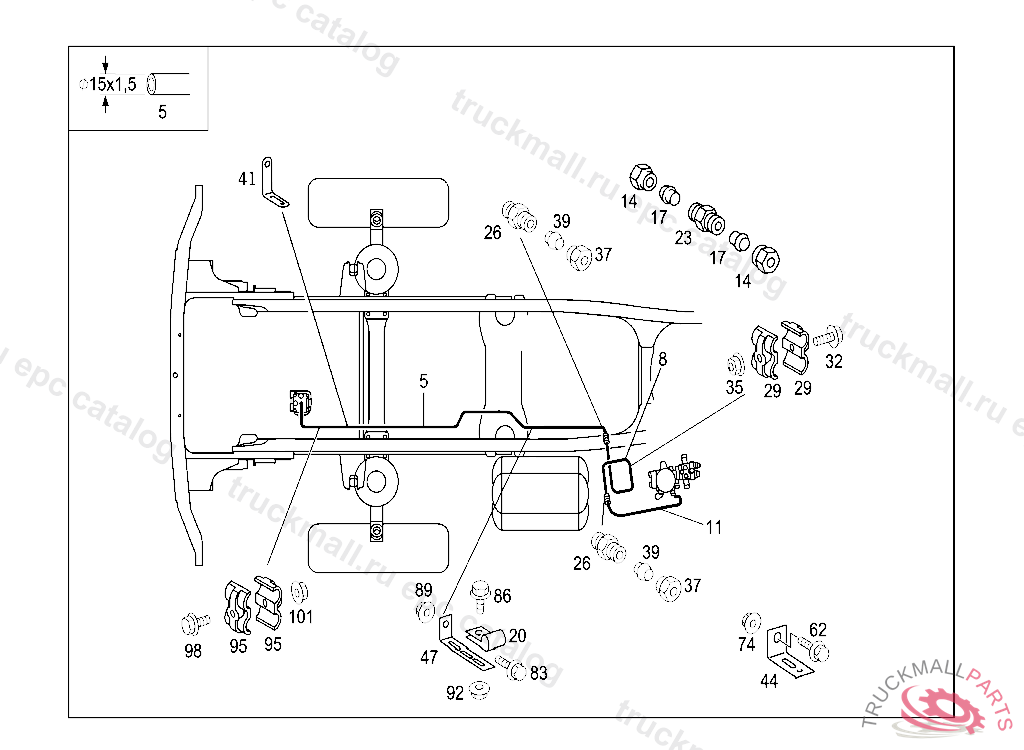

Поз.
Артикул
Описание
5
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
5
8
14
NUT COMPRESSED AIR LINES M22X1.5
14
UNION NUT LINE CONNECTION
17
GLAND COMPRESSED AIR LINES
20
CLAMP DELIVERY AND SUCTION LINES TO STEERING
20
CLAMP , Replaced By: A6739950001
23
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
26
FITTING RETURN LINE CONNECTION,225538
29
CLAMP ELECTRIC CABLE MOUNTING
32
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
32
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
35
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
35
NUT BRACKET TO FIRE WALL
41
41
44
BRACKET , Replaced By: A3464296040
47
BRACKET OIL LINE MOUNTING
62
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
74
NUT BRACKET TO SIDE MEMBER M12X1.5
83
SCREW BRACKET TO SIDE MEMBER M8X20
83
SCREW BRACKET TO CAB REAR PANEL M 8X20
86
SCREW , Replaced By: N914146006102
86
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
89
NUT HORN TO BRACKET M8
92
NUT BRACKET TO FIRE WALL
92
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
95
CLAMP ELECTRIC CABLE MOUNTING
98
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
98
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
101
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
101
NUT BRACKET TO FIRE WALL
