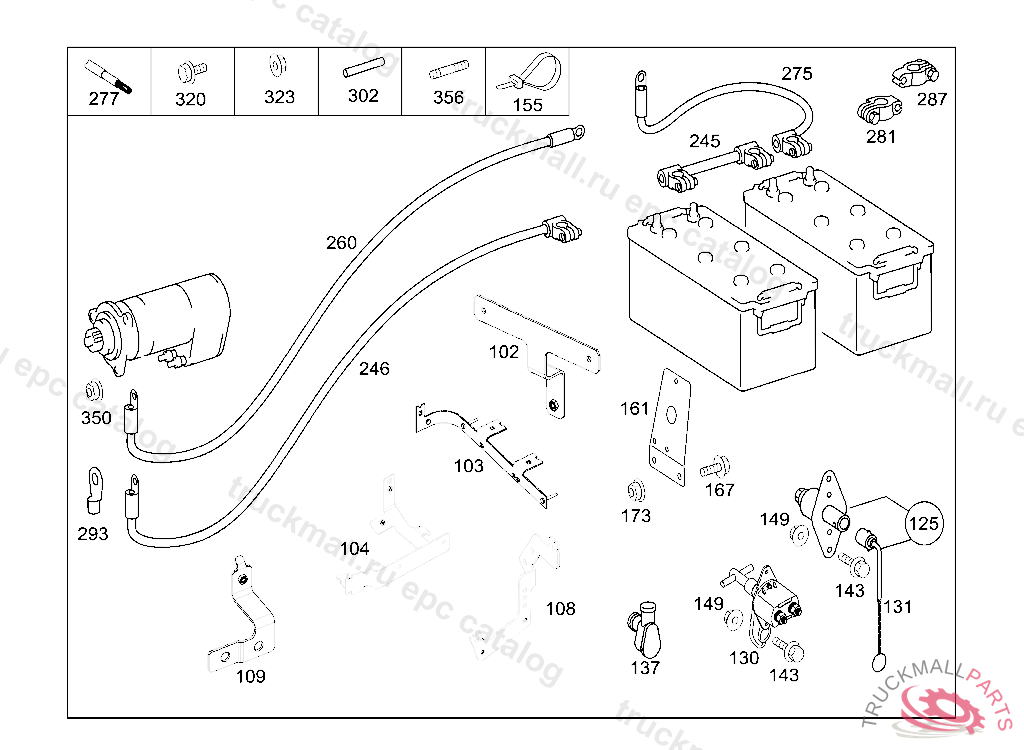

Поз.
Артикул
Описание
102
103
104
108
BRACKET BATTERY CABLE TO TRANSMISSION
109
125
SWITCH BATTERY CUT-OFF
125
SWITCH BATTERY CUT-OFF
130
131
KEY
137
COVERING BATTERY CUT-OFF,D 262514
143
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
143
SCREW BRACKET AND CLAMP M6X20
143
HEXAGON HEAD BOLT COVERING TO CAB
149
NUT BRACKET TO FIRE WALL
149
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
155
LOOM TIE LINE MOUNTING 280 MM
155
CABLE TIE310X5MM
161
167
SCREW , Replaced By: N910143008002
167
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
173
NUT HORN TO BRACKET M8
245
245
245
POSITIVE CABLE FROM BATTERY I TO BATTERY II
246
246
246
260
260
260
260
260
275
275
POSITIVE CABLE FROM BATTERY POS. POLE TO BATTERY MASTER SWITCH 550MM
275
275
275
277
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
281
SOLDERING TERMINAL POS. POLE
287
SOLDERING TERMINAL POS. POLE
293
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
293
CABLE SHOE BATTERY CABLE 10-70 MM
302
GROMMET LINE MOUNTING 10.0 MM
320
SCREW BRACKET AND CLAMP M6X20
320
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
323
NUT ENGINE MOUNTING M8
323
HEXAGON NUT. NUT , Replaced By: N913023008002
350
NUT , Replaced By: N913023006001
350
NUT , Replaced By: N913023010002
350
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
350
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
356
STUD. SCREW GROUND CONNECTION
999
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
999
SCREW BUMPER TO REAR CROSS MEMBER M 8X50
