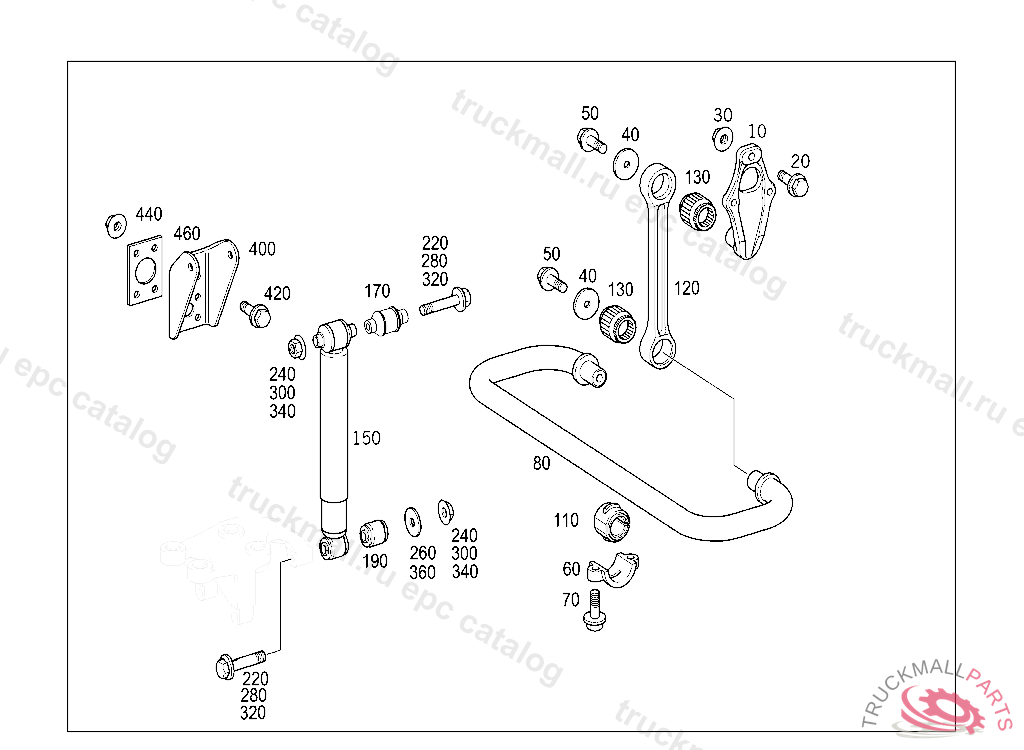

Поз.
Артикул
Описание
10
BEARING BRACKET REAR AXLE TORSION BAR, NO.7390I I I I II I
10
BEARING BRACKET REAR AXLE TORSION BAR, NO.7390I I I I II
20
HEXAGON HEAD BOLT. SCREW POWER CYLINDER TO SUPPORT
20
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M18X1.5X30
40
SPACER WASHER SHACKLE TO TORSION BAR AND TO CONSOLE
50
HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X60
50
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
60
BEARING SHELL TORSION BAR TO BRACKET
70
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
80
ROTARY BAR TRAILING AXLE
80
TORSION BAR REAR AXLE, Replaced By: A9433260565, +002N000000005536
110
RUBBER MOUNTING TORSION BAR TO FRONT AXLE
110
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904661
110
RUBBER MOUNTING TORSION BAR TO BEARING BRACKET
120
SHACKLE TORSION BAR TO BEARING BRACKET, NO.7390I I I I II
120
130
RUBBER MOUNTING SHACKLE TO TORSION BAR AND TO CONSOLE
130
150
170
190
RUBBER BUFFERTO 004 323 47 00
220
HEXAGON HEAD BOLT SHOCK ABSORBER TO BOTTOM BRACKET M16X1.5X140
220
SCREW. HEXAGON HEAD BOLT SHOCK ABSORBER TO LOWER BEARING BRACKET M16X1.5X130
240
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE M16X1.5
260
WASHER MOUNTING TO BEARING BRACKET
260
WASHER SHOCK ABSORBER TO LOWER BEARING BRACKET
