Поз.
Артикул
Описание

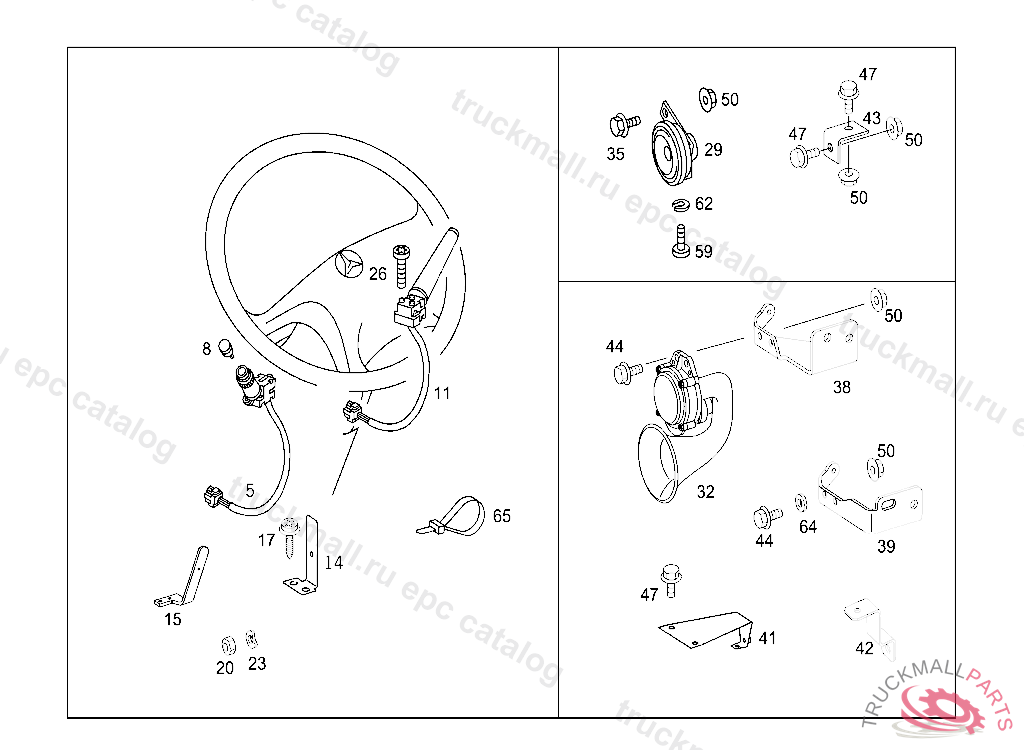

5
STEER.COLUMN MOUT. SWITCH FOR WIPE,WASH,INDICATORS AND HORN, .......I.......INO.7C45I.......I.......I....... I
8
CAP
11
STEERING COL. MOUNT.SWIT. RETARDER, NO.5B21INO.5C38INO.7C45 II II
11
11
STEERING COL. MOUNT.SWIT. EXHAUST BRAKE,TEMPOMAT AND RETARDER, .......I.......I.......I.......INO.5C38I....... IZAR 1317/00, 13.07.01
14
BRACKET STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
15
BRACKET STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
17
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
20
NUT
20
NUT BATTERY CASE
23
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
23
SPRING WASHER BRAKE SHOE WITH LINING
26
SCREW STEERING COLUMN MOUNTED SWITCH
29
DISK HORN LOW NOTE
29
HORN LOW NOTE BOSCH
32
AIR HORNFIAMM, TO VOSS 232, REPAIR IMPOSSIBLE
35
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
35
SCREW , Replaced By: N910143008002
38
BRACKET AIR HORN
38
BRACKET AIR HORN
39
43
BRACKET FUEL LINE TO SIDE MEMBER
44
SCREW , Replaced By: N910143008002
44
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
47
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
NUT HORN TO BRACKET M8
59
HEXALOBULAR BOLT LIGHT SWITCH M4X6
59
SCREW ELECTRIC CABLE TO HORN M4X6,V 207570
59
SCREW ELECTRIC CABLE TO HORN TO 004 542 44 20/45 20
62
LOCK WASHER T-FITTING TO BRACKET
62
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
64
WASHER CONSOLE TO FRAME
64
WASHER (ARTICULATED ROD)
65
LOOM TIE LINE TO BRACKET 508 MM
65
CABLE TIE310X5MM
