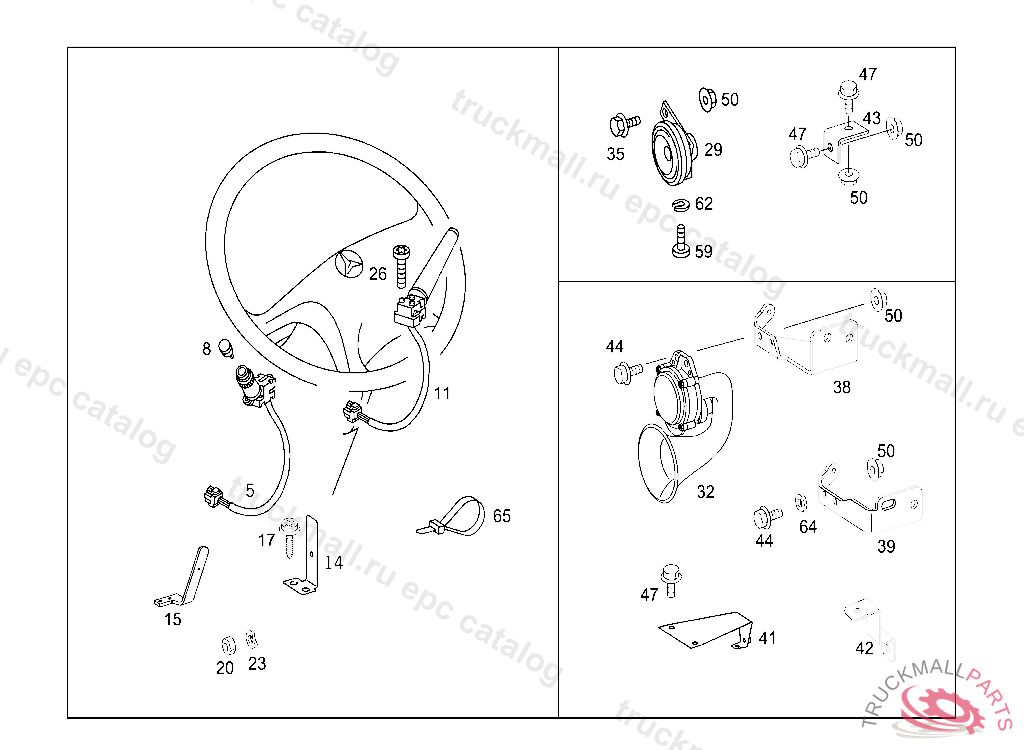

Поз.
Артикул
Описание
5
STEER.COLUMN MOUT. SWITCH FOR WIPE,WASH,INDICATORS AND HORN, .......I.......INO.7C45I.......I.......I....... I
8
CAP
11
11
STEERING COL. MOUNT.SWIT. RETARDER, NO.5B21INO.5C38INO.7C45 II II
11
STEERING COL. MOUNT.SWIT. EXHAUST BRAKE,TEMPOMAT AND RETARDER, .......I.......I.......I.......INO.5C38I....... IZAR 1317/00, 13.07.01
14
BRACKET STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
15
BRACKET STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
17
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
20
NUT
20
NUT BATTERY CASE
23
SPRING WASHER BRAKE SHOE WITH LINING
23
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
26
SCREW STEERING COLUMN MOUNTED SWITCH
29
DISK HORN LOW NOTE
29
HORN LOW NOTE BOSCH
32
AIR HORNFIAMM, TO VOSS 232, REPAIR IMPOSSIBLE
35
SCREW , Replaced By: N910143008002
35
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
38
BRACKET AIR HORN
38
BRACKET AIR HORN
39
42
43
BRACKET FUEL LINE TO SIDE MEMBER
44
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
44
SCREW , Replaced By: N910143008002
47
SCREW BRACKET TO CAB REAR PANEL M 8X20
50
NUT HORN TO BRACKET M8
59
SCREW ELECTRIC CABLE TO HORN TO 004 542 44 20/45 20
59
HEXALOBULAR BOLT LIGHT SWITCH M4X6
59
SCREW ELECTRIC CABLE TO HORN M4X6,V 207570
62
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
62
LOCK WASHER T-FITTING TO BRACKET
64
WASHER (ARTICULATED ROD)
64
WASHER CONSOLE TO FRAME
65
CABLE TIE310X5MM
65
LOOM TIE LINE TO BRACKET 508 MM
