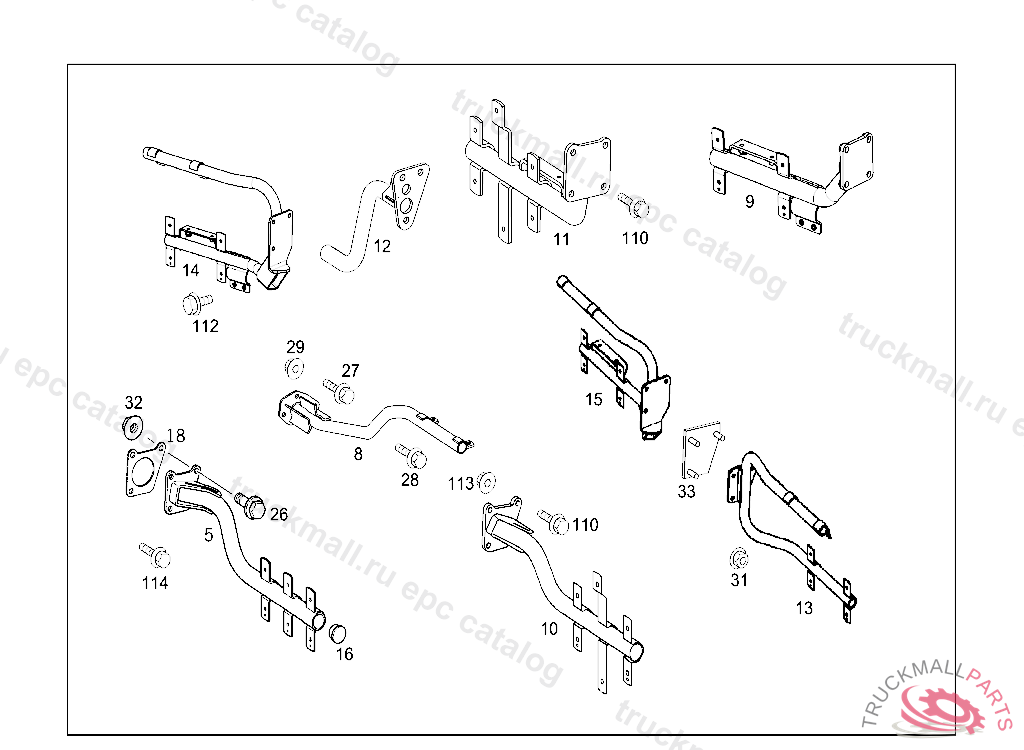

2825BK, 2826.2828BK, 2831 /6X4 - 958.264 - 52 SHEET METAL,AIR INTAKE
Поз.
Артикул
Описание
5
SUPPORT LEFT FRONT FENDER
5
SUPPORT RIGHT FRONT FENDER
5
SUPPORT LEFT FRONT FENDER
5
SUPPORT
8
SUPPORT LEFT FRONT FENDER
8
9
12
16
CAP AT BRACKET
26
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
28
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X45
29
NUT SUPPORT TO FRAME
32
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
112
SCREW STOP TO BATTERY CASE
114
HEXAGON HEAD BOLT. SCREW LOCK SPRING TO CROSS MEMBER M14X1.5X30
114
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
